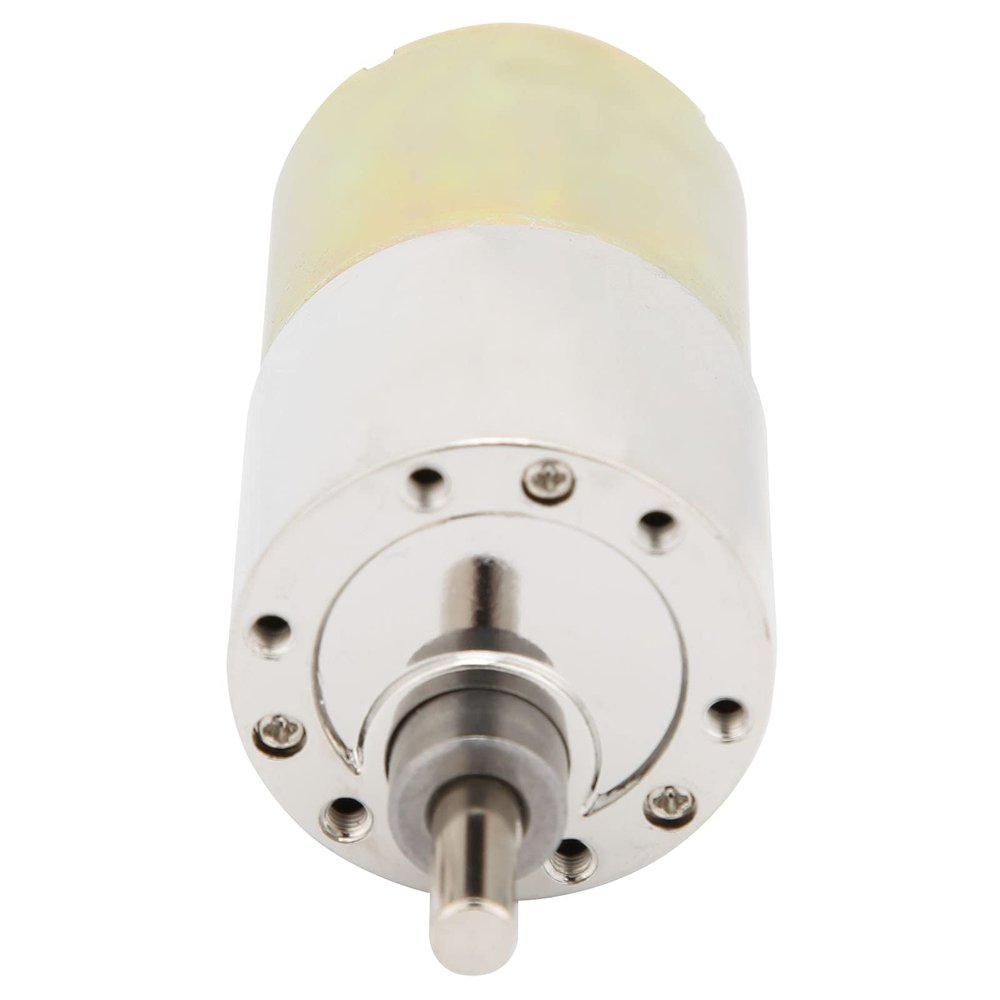

01 02 015 DC Motor, Adjustable Ultra Quiet Metal Gears Low Speed Motor 12V XD37GB520 for Micro Machinery(600rpm/min)

Description

• The lubricating oil applied to the motor gear is high temperature grease, which has the characteristics of low friction, noise reduction, slow temperature rise, etc., and improves the service life of the gear
• There are two magnets in the motor body, which have the characteristics of high remanence, high magnetic energy product, high performance, and high torsion, which can improve the performance of the motor.
• Using all metal gears with great workmanship, which is wearresistant, quiet, and long service life
• Adopt pure copper coil, the deceleration and conductivity are strengthened, so that the motor torsion is increased
• Mainly used in various industries such as micro machinery, various CNC machine tools, highaccuracy measuring instruments, electronic manufacturing equipment, financial machinery, military industry and other industries

Feature:
1. Using all metal gears with great workmanship, which is wear?resistant, quiet, and long service life
2. Professional design and reasonable structure, the product has small size and large torsion, ultra?quiet and stable to operate
3. Adopt pure copper coil, the deceleration and conductivity are strengthened, so that the motor torsion is increased
4. With overload current function, when the current reaches 3A, the motor will automatically cut off the power to protect it to avoid burning out during the use of the motor and increase the service life of the motor
5. Mainly used in various industries such as micro machinery, various CNC machine tools, high?accuracy measuring instruments, electronic manufacturing equipment, financial machinery, military industry and other industries

Specification:

Item Type: DC Reduction Motor
Model: XD-37GB520
Material: Copper
Output Shaft Size: Approx. 6 x 15mm / 0.2 x 0.6in
Insulation After the rated of the motor under normal temperature and humidity, when measuring the insulation between the coil and the motor shell with a DC500V meter, it does not exceed 20M?
Insulation Withstand Voltage: After the rated of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated under normal temperature and humidity by using the to measure the temperature rise of the coil below 70?.
Insulation Class: Class B(130?)
Operating Environment Temperature: Motor: -10~+40? (no i
