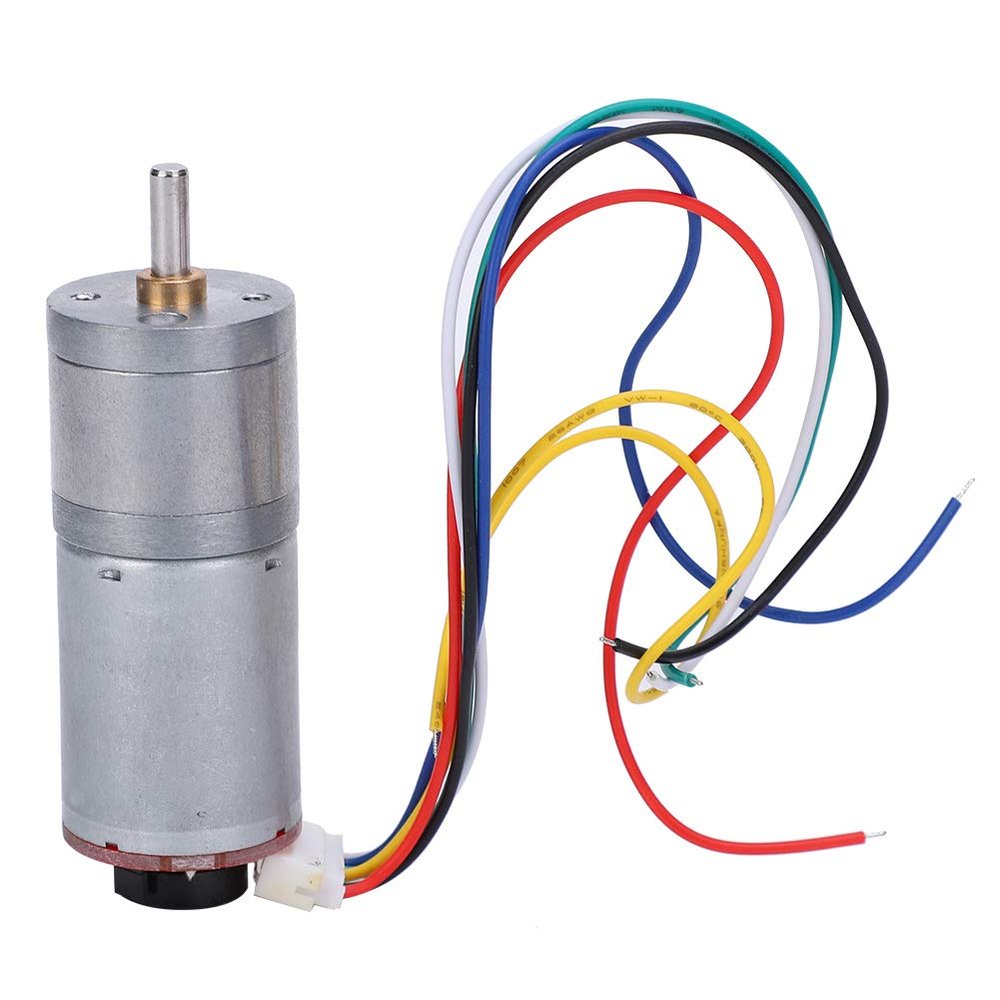

01 02 015 Gear Motor, Large Transmission Variable Speed Motor for DIY Parts(DC12V 300RPM)

Description

• This brush DC motor possess and high efficiency, convenient for you to use
• This speed encoder gear motor can support rotate and reverse, which achiceves work more accurately
• The product possess stable gear transmission, wearresistance, and large transmission torsion
• Come with two phase reduction gear motor with encoder, which is powerful and practical
• Made of copper and stainless steel material, sturdy and for a long service life

Feature:
1. The product possess stable gear transmission, wearresistance, and large transmission torsion
2. Come with two phase reduction gear motor with encoder, which is powerful and practical
3. This speed encoder gear motor can support rotate and reverse, which achiceves work more accurately
4. Made of high quality copper and stainless steel material, sturdy and durable for a long service life
5. This brush DC motor possess stable performance and high efficiency, convenient for you to use

Specification:

Item Type: Gear Motor
Material: Copper, stainless steel
Model: GA25-370
Motor Type: Brush DC motor
Parameter:
Voltage Reduction ratio Gear box L length(approx.) No-load Load Block load Rotate speed Current Rotate speed Current Torsion Current Torsion 12V 1:500 27mm / 1.1in 10RPM 60MA 8RPM 300MA 440g.cm 4A 14.9KG.CM 12V 1:230 27mm / 1.1in 30RPM 60MA 22RPM 300MA 560g.cm 1.1A 14.7KG.CM 12V 1:103 23mm / 0.9in 60RPM 60MA 51RPM 300MA 320g.cm 1.1A 12.75KG.CM 12V 1:60 23mm / 0.9in 100RPM 60MA 78RPM 300MA 260g.cm 1.1A 11.2KG.CM 12V 1:44 21mm / 0.8in 150RPM 60MA 118RPM 300MA 160g.cm 1.1A 9.2KG.CM 12V 1:20 21mm / 0.8in 300RPM 60MA 235RPM 300MA 160g.cm 1.1A 5.6KG.CM 12V 1:20 21mm / 0.8in 500RPM 70MA 477RPM 300MA 150g.cm 1.1A 3.5KG.CM 12V 1:10 21mm / 0.8in 1200RPM 100MA 1046RPM 300MA 45g.cm 1.1A 3.3KG.CM Red: Motor power + positive (change can control motor forward and reverse)
Black: Encode power - negative (positive and negative can not be connected incorrectly 3.3-5V)
Yellow: Signal feedback (11 signals from the motor)
Green: Signal fee
