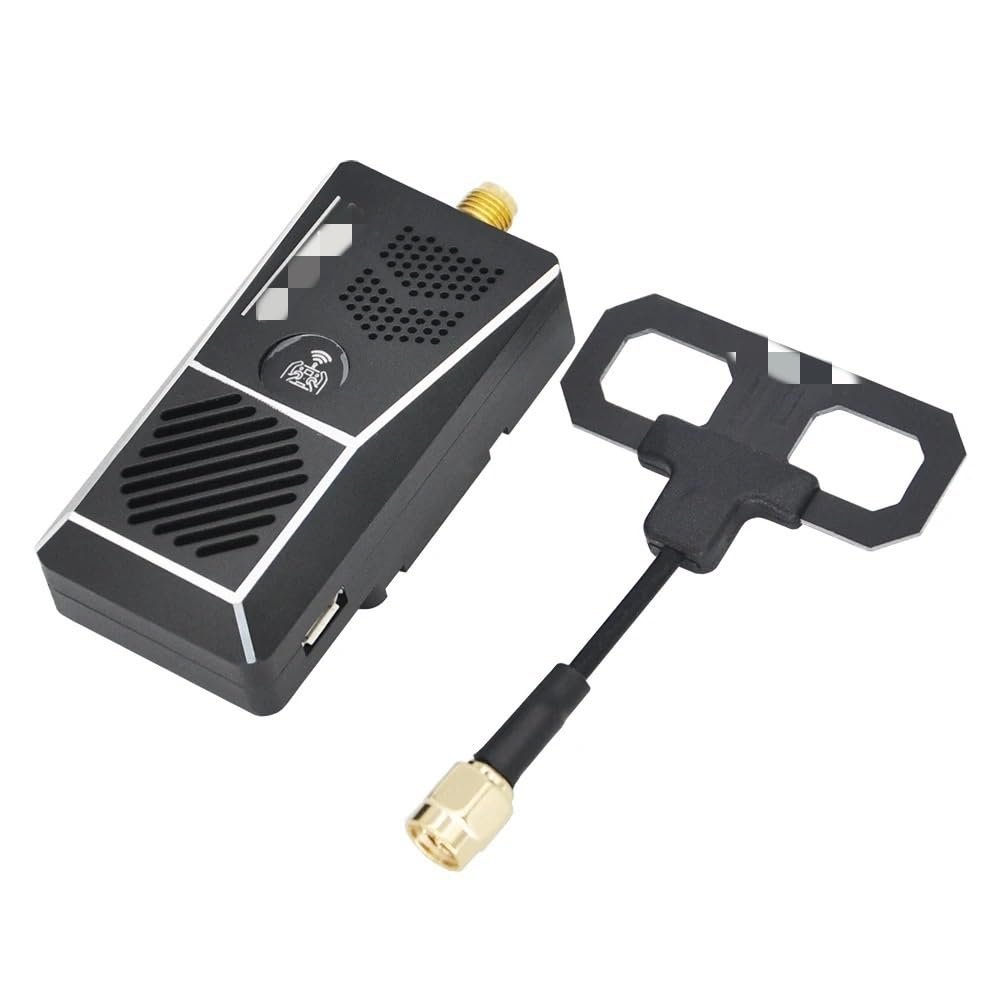

1000mw ES24TX Slim 2.4g ExpressLRS ELRS TX Module for -lite/X-lite PRO/X9 Lite TBS Tango2(ES24 SlimPRO EP2 RX)

Description

• High transmission power- The 1000mw ES24TX Slim 2.4g ExpressLRS ELRS TX Module provides an impressive transmission power, ensuring a reliable and stable connection between your -lite/X-lite PRO/X9 Lite TBS Tango2 and other devices.
• Wide compatibility- This module is designed to seamlessly integrate with -lite, -lite , and X9 Lite TBS Tango2 transmitters, ensuring compatibility and ease of use. You can the benefits of ExpressLRS technology without the hassle of complicated setup processes.
• -distance range- With its powerful transmission capabilities, the 1000mw ES24TX Slim 2.4g ExpressLRS ELRS TX Module allows for -distance communication between your transmitter and receiver. This means you can fly your drone or control your model from a significant distance without worrying about lost signals.
• Reliable and stable signal- Say goodbye to signal drops and interference. The 1000mw ES24TX Slim 2.4g ExpressLRS ELRS TX Module ensures a reliable and stable signal, giving you peace of mind during your flights or remote control activities.
• Easy installation- Installing the 1000mw ES24TX Slim 2.4g ExpressLRS ELRS TX Module is a breeze. Simply attach the module to your compatible -lite/X-lite PRO/X9 Lite TBS Tango2 transmitter, follow the provided instructions, and you'll be ready to the benefits of ExpressLRS technology in no time.

This Slim ProTX module is designed by and based on the open source- ExpressLRS which is a very popular low latency and highpacketrate RF module for RC Airplane and FPV Racingdrone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim Promodule is a complete solution which is already pre-load the Expresslrs firmware and it's Plg and play for -lite/X-lite pro/X9 Lite , TBS Tango2.
This Slim module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw.
The slim TXmodule supports a maximum power output of about 1000mw, this would be very useful for Range FPV.
Features:Supports up to 1000mwRF power(T-lite radio and Tango2 radio need external power supply)RGB LED ready
Cooling Fan ready
Open source ExpressLRS
range, low latencyand High re-flashed Rates
Telemetry data transmission supported
CNC aluminum shell
Specifications:Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(as ESP backpack)
RF chip:SX1280IMLTRT
Frsky Lite8pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm
Power supply : 5v~12v
Weight:50gram(without antenna)
Dimension: 67.5mm*30mm*20.5mm (without antenna)
Antenna gain:1.87dBi
Package include:ES24TXSlim TX module*1
24TX80 antenna *1
