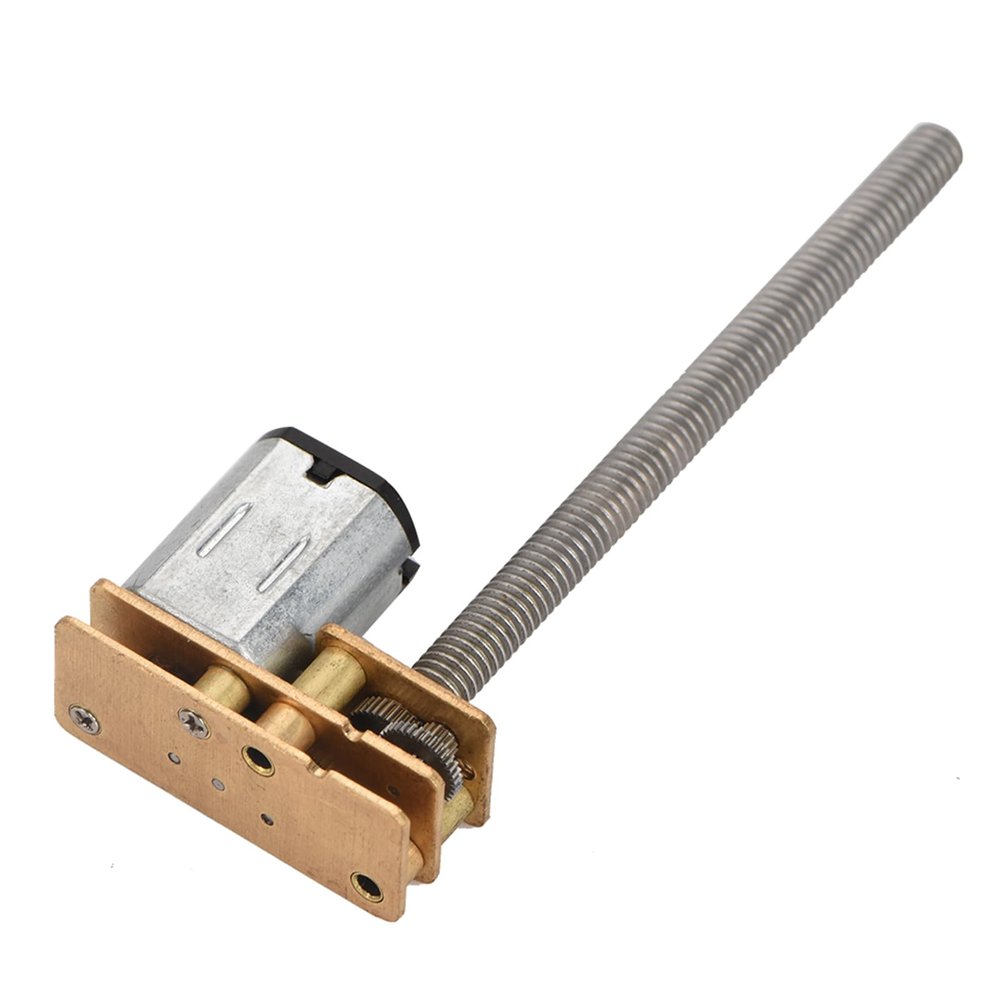

1024GA20 DC 6V/12V Thread DC Gear Motor,Reduction Motor N20 Motor Flip N20 Speed Reduction Motor Electric Gear Motor M4 X 55mm Shaft (6V 200RPM)

Description

• The motor is made of metal gear,wear-resisting,avoid tooth breaking,so with long serving life
• This DC motor features large moment of force,low speed,and low noise
• This electronic gear motor is good replacement for old or worn electronic deceleration motor,useful and practical
• This motor is adopted of pure copper wire coil,with low heat and low loss
• Suitable for ,landing gear,mechanical arms,electronic toys and many other devices

1. This DC motor features large moment of force, low speed, and low noise
2. The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life
3. This electronic gear motor is good replacement for old or worn electronic deceleration motor, useful and practical
4. Suitable for , landing gear, mechanical arms ,electronic toys and many other devices
5. This motor is adopted of pure copper wire coil, with low heat and low loss

Specification:
Features:
This DC motor features large moment of force, low speed, and low noise.
The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
This electronic gear motor is good replacement for old or worn electronic deceleration motor, useful and practical.
Suitable for , landing gear, mechanical arms ,electronic toys and many other devices.
This motor is adopted of pure copper wire coil, with low heat and low loss.
Specification:
Rated power: 2W
Optional type: 6V 30RPM, 6V 60RPM, 6V 100RPM, 6V 150RPM, 6V 200RPM, 6V 1000RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM
3C rated voltage range: type: M4
Output shaft length: 55mm / 2.2inch
Size: Approx. 6.5*2.5cm/2.6*1in
Weight: Approx. 18g/0.6oz
Voltage Gear Ratio No Load Load Torsion Stall
Speed Current Speed Current Torsion Current Torsion
6V 1:298 30RPM 20mA 23RPM 40mA 440gf.cm 1.1A 3.3kgf.cm
6V 1:298 60RPM 40mA 50RPM 40mA 560gf.cm 1.1A 3.6kgf.cm
6V 1:100 100RPM 30mA 83RPM 45mA 320gf.cm 1.1A 2.25kgf.cm
6V 1:100 150RPM 50mA 130RPM 45mA 260gf.cm 1.1A 2.50kgf.cm
6V 1:50 200RPM 50mA 180RPM 45mA 160gf.cm 1.1A 1.60kgf.cm
6V 1:10 1000RPM 30mA 830RPM 50mA 25gf.cm 1.1A 0.65kgf.cm
12V 1:298 60RPM 40mA 45RPM 50mA 720gf.cm 1.1A 4.6kgf.cm
12V 1:298 120RPM 60mA 100RPM 60mA 880gf.cm 1.1A 4.8kgf.cm
12V 1:100 200RPM 50mA 160RPM 60mA
