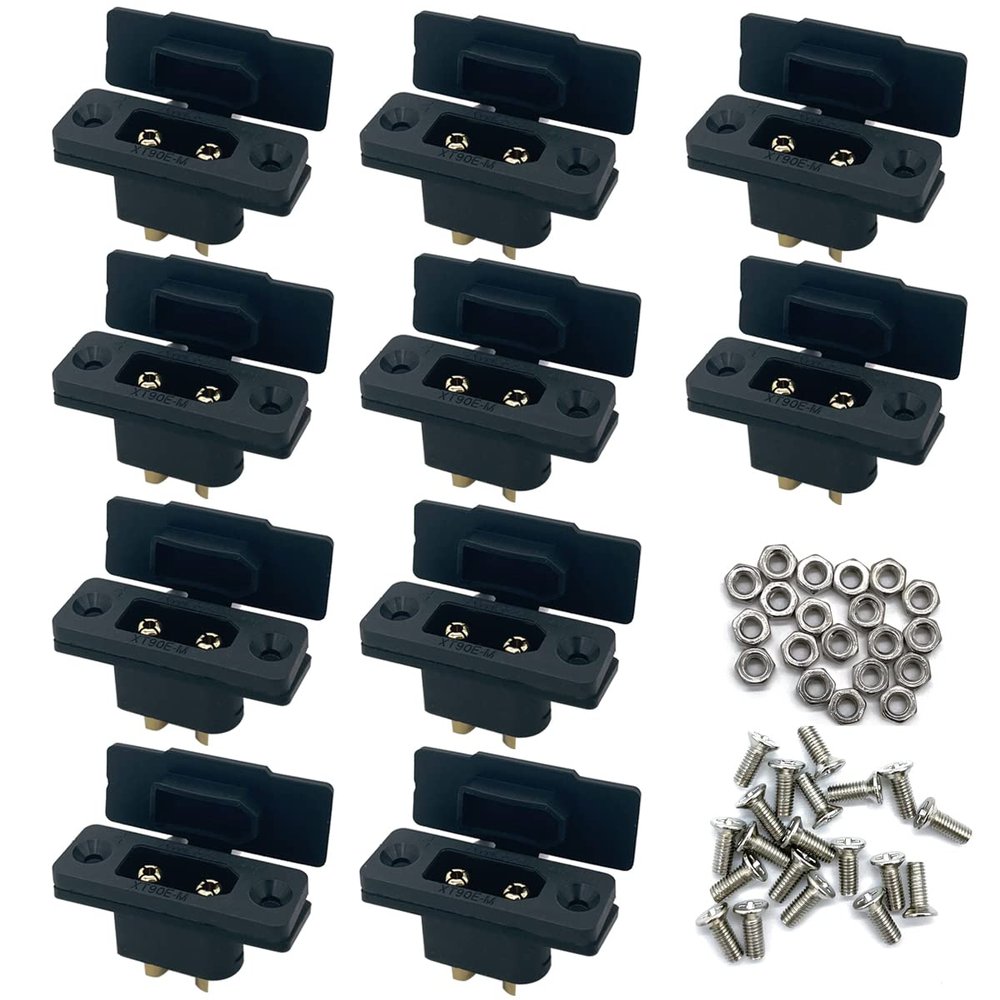

10Pcs Amass XT90E-M Battery Connector XT90E Male Plug Gold-Plated Connector with PVC Protective Sleeve Dust Cap for RC Aircraft Drone Accessories

Description

• XT90E dust cover adopts PVC.100% Amass Brand new and high quality.XT90E-M connector can be mated with XT90 connector.
• The outer edge of the flip cover is designed, and a groove is made in the middle of the joint to reduce the reaction force of the dust cover after bending.
• Two small grooves are added on both sides of the joint, which can be attached to the edge of the plug after being covered.
• To install the plug in front of the board, increase the thickness of two dust covers.
• After installation, the panel protrudes 7mm, and it is suitable to use m3 countersunk nuts and m3*10 or 12 screws.

Brand Name: Amass
Model: XT90E-M Male Plug
Rated voltage: DC 500V
Rated current: 30A/12#
Instaneus current: 60A/12#
Contact resistance: 0.4m
Using times: 100 times
Protection level: IP40
Temperature: -20 to 120
Recommended cable spec.: 8/10/12#
Weight: 7.9g/pc
Package include :
10Pcs*XT90E-M Male Plug
10Pcs * Dust cap
20Pcs x screws
Notice:
Can handle over 60A current for extended periods without exceeding 80DegC.
The connector is a precision part, please be careful when using it
Do not plug or unplug the connector when the power is on
