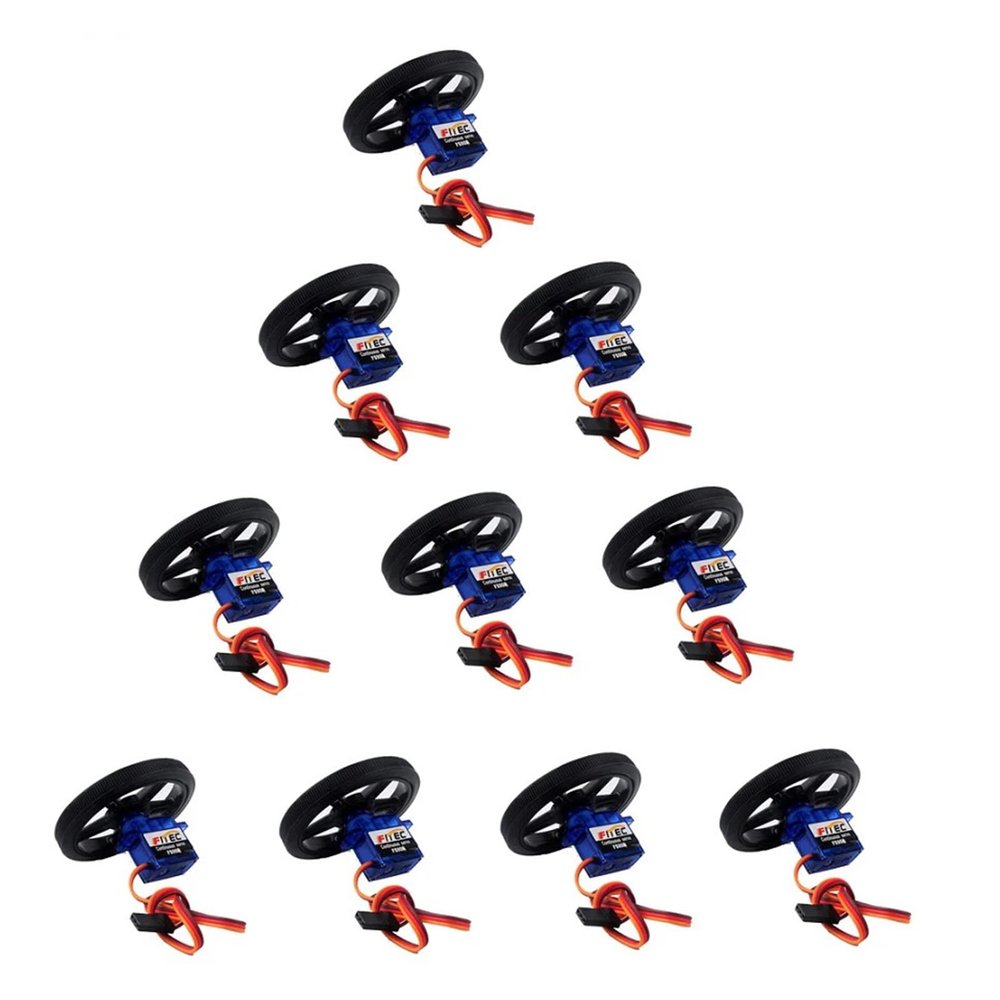

10pcs/lot FS90R 360 Degree Continuous Rotation servo Wheel DIYmall 180 Degree servo(Feetech Servo Wheel)

Description

• Servo Mounts

Servo Mounts
DIYmall 180 servo:
Speed: Standard speed is 120 degrees, maximum speed is 180 degrees
Working voltage: 4.8~6.0V
Current: 0.19A@5V, 0.24A@6V
Operation speed: 0.12 seconds/60 degrees (4.8V) ~ 0.1 seconds/60 degrees (6.0V)
Torque: 1.6kg/cm (4.8V)
Dead zone width: 5usec
Temperature range: -30~+60
Cable length: 25 cm
Servo type: Analog servo
Brand model: SG90
Size: 23X12.2X29MM
FS90R 360 Continuous Servo:
Dimensions: 23.2 12.5 22 mm
Weight: 9 g
Operating speed:
110 rpm (4.8V)
130 rpm (6V)
Stall torque:
1.3 kg.cm/18.09 oz.in (4.8V)
1.5 kg.cm/20.86 oz.in (6V)
Working voltage: 4.8V~6V
Control system: simulation
Direction: Counterclockwise
Operating angle: 360 degrees
Required pulse: 900us-2100us
Bearing Type: None
Gear Type: Plastic
Motor Type: Metal
Cable length: 20 cm
