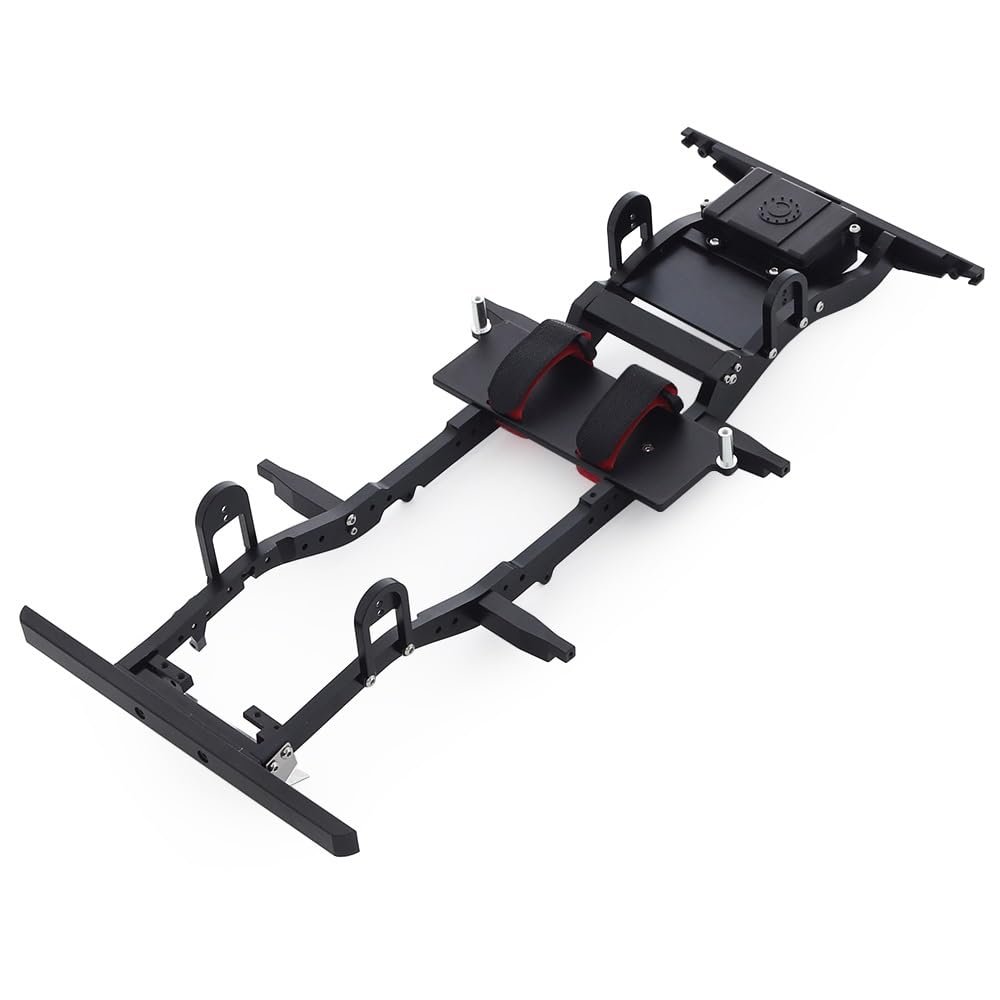

1/10 Proportion CNC Metal Chassis Frame with Transmission Gearbox for RC Crawler Car RC4WD Gelande II FJ40 G2 D90 TF2 Defender ( Color : D )

Description

• Made of high-quality materials, temperature-resistant and corrosion-resistant, safe and reliable to use, durable and long-lasting
• Metal RC Car Chassis Frame Kit
• CNC Machined
• Smooth Anodized Black Finish
• Smooth transmission system, fit 1/10 RC Crawler Truck

Easy installation: The installation method is convenient, the replacement is very simple, and the life of the machine can be extended after replacement
1/10 Proportion CNC Metal Chassis Frame With Transmission Gearbox for RC Crawler Car RC4WD Gelande II FJ40 G2 D90 TF2 Defender
Metal RC Car Chassis Frame Kit
CNC Machined
Smooth Anodized Black Finish
Smooth transmission system, fit 1/10 RC Crawler Truck
Item: Shaft Coupling
Material: Heat Treated Steel
Weight: 22g
Item: Transfer Case
Material:
Housing: Aluminum Alloy
Internal Gears: Hardened Steel
Skid Plate: Aluminum Alloy
Gear Ratio: 1.47:1
8 Bearing design
Output Shaft Diameter: 4.8mm
Weight: 117g
Item: Transmission
Material:
Housing: Aluminum Alloy
60T Spur Gears: Nylon
19T Pinion Gears: Brass
Internal Gears: Hardened Steel
Clockable Motor Mounting (12 different positions)
Single Speed
Gear Ratio: 5.61:1
Slipper Clutch Design
Output Shaft Diameter: 4.8mm
Weight: 200g
Item: Chassis A(with Transmission/Transfer Case)
Material: Aluminum Alloy(Radio Box: Plastic)
Length: 424mm/16.69in
Maximum width: 195mm/7.68in
Weight: About 0.88kg
Final Drive Ratio: 8.23:1
Requires Assembly
Item: Chassis B (No Transmission/Transfer Case)
Material: Aluminum Alloy(Radio Box: Plastic)
Length: 424mm/16.69in
Maximum width: 195mm/7.68in
Weight: About 0.54kg
Requires Assembly
