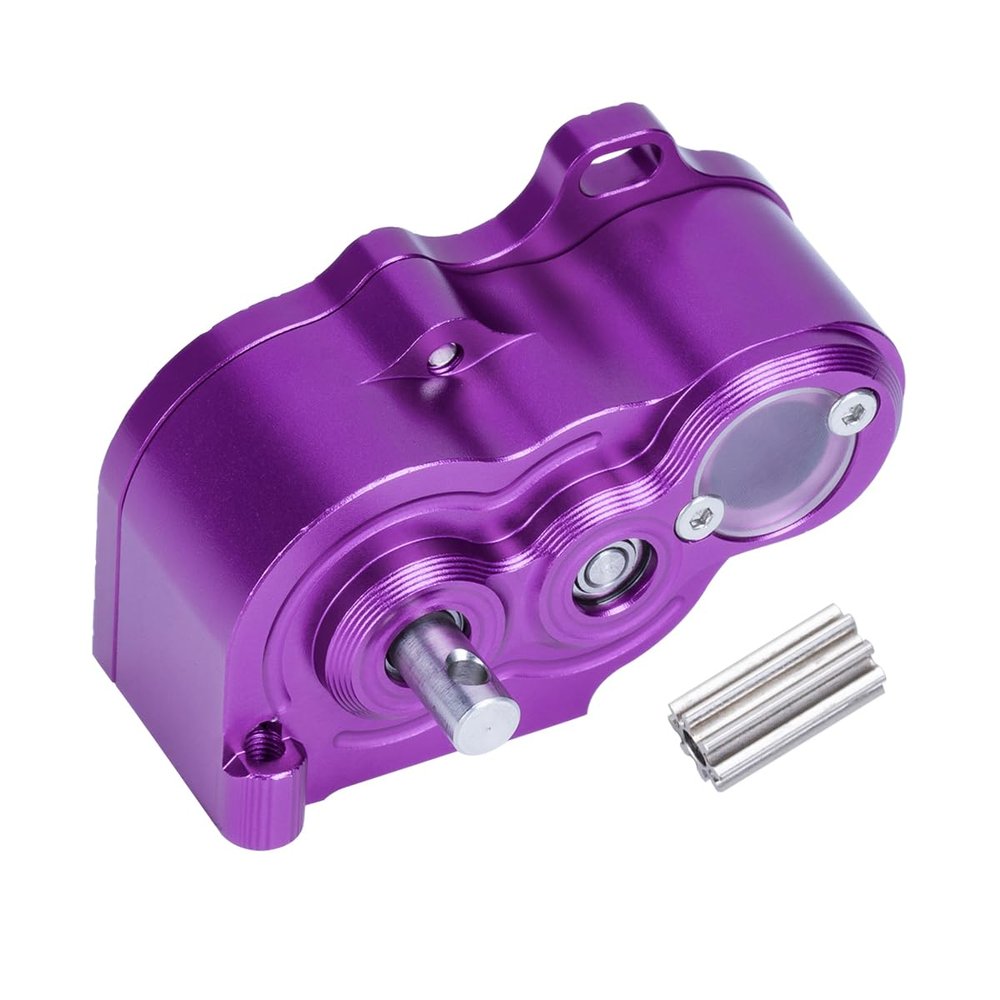

1/10 RC Transmission Speed Gearbox,LCG Crawler R2 Metal Transmission Low Center of Gravity Gearbox for 1/10 RC Car SCX10 TRX4 RC4WD Capra Axle DIY Chassis(Purple)

Description

• The RC Transmission Case Gearboxes adopts a closed design to effectively prevent the entry of sand, stones, branches, etc., and prolong its service life; this sealed gearbox is sand-proof and dust-proof, with anti-skid protection, and can protect the gear.
• All gears are made of steel, high precision, high strength and wear resistance. Precision manufactured for consistent screw fitting and servicing.
• Equipped with acrylic small window, visually adjustable motor teeth without disassembly (Additional lubricating grease can be added before use to reduce the noise of metal gear meshing)
• Compact design, small size, minimal space occupation within the frame, avoiding interference as much as possible
• Usage scenario: Low center of gravity/performance frame

Description:
CNC processing, purple red black anodizing
Usage scenario: Low center of gravity/performance frame
Compact design, small size, minimal space occupation within the frame, avoiding interference as much as possible
Optimize the size of the output shafts at both ends, which is more reasonable than other R2 Gearbox on the market
Equipped with acrylic small window, visually adjustable motor teeth without disassembly
(Additional lubricating grease can be added before use to reduce the noise of metal gear meshing)

Uniform speed Gear Features:
Material: aluminum alloy (shell), stainless steel (gear)
Motor teeth: 9T-32P
Gear ratio: 9:1
Compatible motor: 540,550/outer rotor (3.17mm shaft)
Output shaft: 5mm
Compatible base plate: SCX10 model (three hole)
Colors:purple, red,black
Weight: 54.2g (excluding screws)

High speed gear and Slow speed gear Features:
Material: titanium alloy (gear) , stainless steel (shaft/Bolt)
Motor teeth:8T-32P
Gear ratio: 1: 5.9 (fast); 1: 10.5 (slow)
Compatible motor: 540,550/outer rotor (3.17mm shaft)
Output shaft: 5mm
Color: Titanium Silver
Weight:54.2g (excluding screws)
Gear weight:1:5.9(20.3 g) ; 1:10.5 g (32P)

What's Included:
1 * LCG Gearbox
1 * Gear
