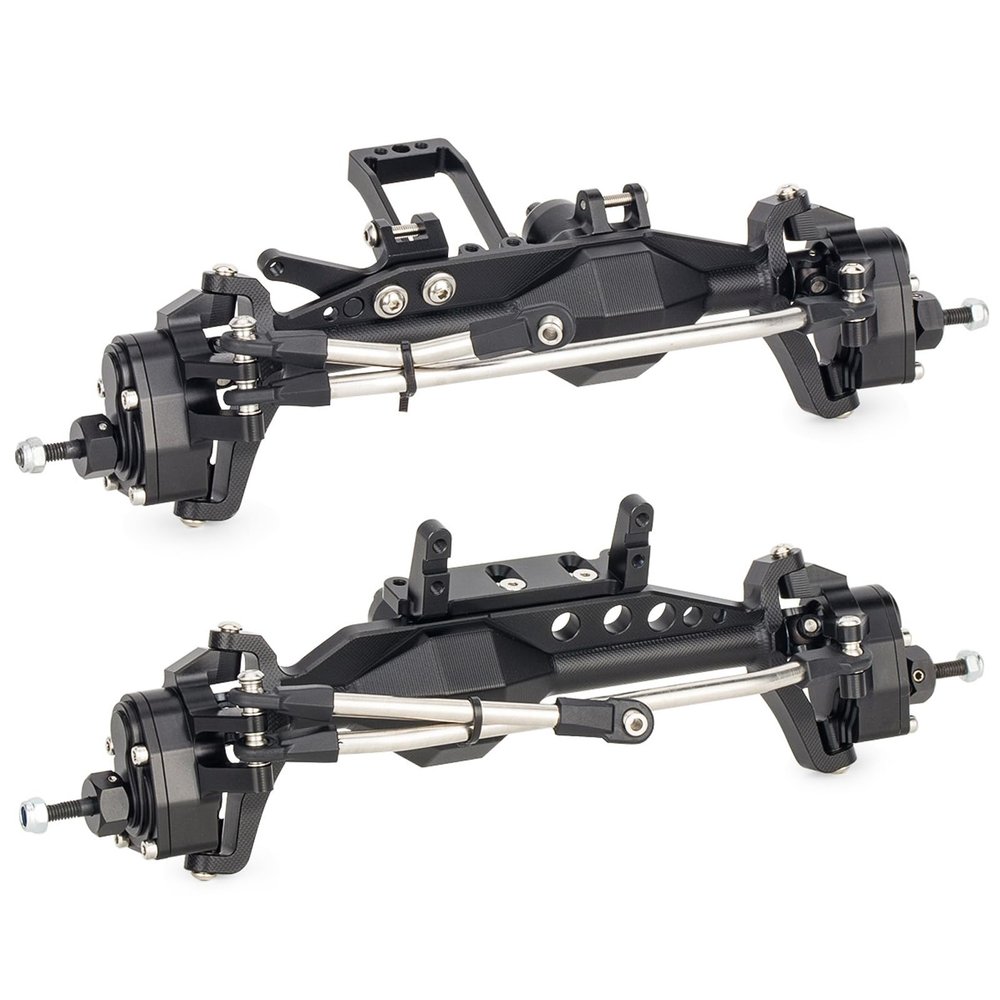

1/10 RC Portal Axles Set with BTA SOA Servo Mount CNC Aluminum One Piece Construction Offset Front Rear Completes Axle Set for Axial Capra 1.9 UTB LCG Cheater Rig 4WS DIY Upgrades (Black)

Description

• CNC Aluminum alloy housing, stainless steel driveshafts, and high-strength steel gears. Features one-piece bearing retainers and smooth gear action for minimal power loss and maximum drivetrain efficiency.
• 50 of side to side steering. (Over 5than stock Capra axles) 8-30T Ring/ Pinion gear set, 12-23T Portal gear set, 7.19:1 Ratio.
• Increased Caster Angle to 20 for improved steering.Offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance.
• 4-wheel steering (4WS) support. The BTA servo mounts (front & rear) allow dual-servo setups for crab walking, tight turns, and advanced maneuverability.
• Universal Fit for Capra & LCG Chassis,Perfect for Capra upgrades (link rod replacement required) or custom tube-frame/LCG builds. Weighing just 300g (front) / 305g (rear), these axles maintain a low center of gravity while improving articulation and durability.

High-Performance 1/10 Scale Portal Axles for RC Crawlers CNC Machined Aluminum, 50 Steering, 4WS Compatible

Features:
Offset Pumpkin Design Optimized ground clearance and weight distribution for technical crawling.
Integrated CNC Aluminum Housing Precision-machined from lightweight alloy with black/silver anodizing for durability and sleek aesthetics.
50 of side to side steering. (5 over stock Capra axles)
Upgraded Drivetrain Efficiency Features one-piece bearing retainers and smooth gear action for minimal power loss.
Integrated C-Hubs & Increased Caster Improves stability and handling on extreme terrain.
Universal Fitment Compatible with 1/10 tube-frame chassis and LCG crawlers (front/rear or 4-wheel steering setups).
Front Axle with BTA Servo Mount,Rear Axle with with BTA Servo Mount,Front & Rear Dual-Servo Steering System,Upgrade your RC vehicle with precision 4-axis steering for unmatched agility!
Specification:

Color: Black/Silver

Material:
Axle Housing/Tie Rods/Adapters: Hardened Aluminum Alloy
Driveshafts: Stainless Steel
Gears: High-Strength Steel

Gearing:
Bevel Gear: 30T/8T
Portal Gear: 23T/12T

Total Ratio: 7.19:1 (Torque-focused for slow crawling)
Outputs: 5mm shafts | Hex: 12mm (5.6mm thickness)
Weight: Front 300g / Rear 305g (balanced for LCG builds)

Package Options:
1* Front & Rear Axle Set (Ideal for 4WS conversions)

Designed for:

Scale crawlers requiring high articulation and durability on rocks/off-road.

Builders seeking CNC precision with integrated features (no loose C-hubs or weak points).

Upgrades for Capra (Need to replace the link rod),or custom tube/LCG chassis.
