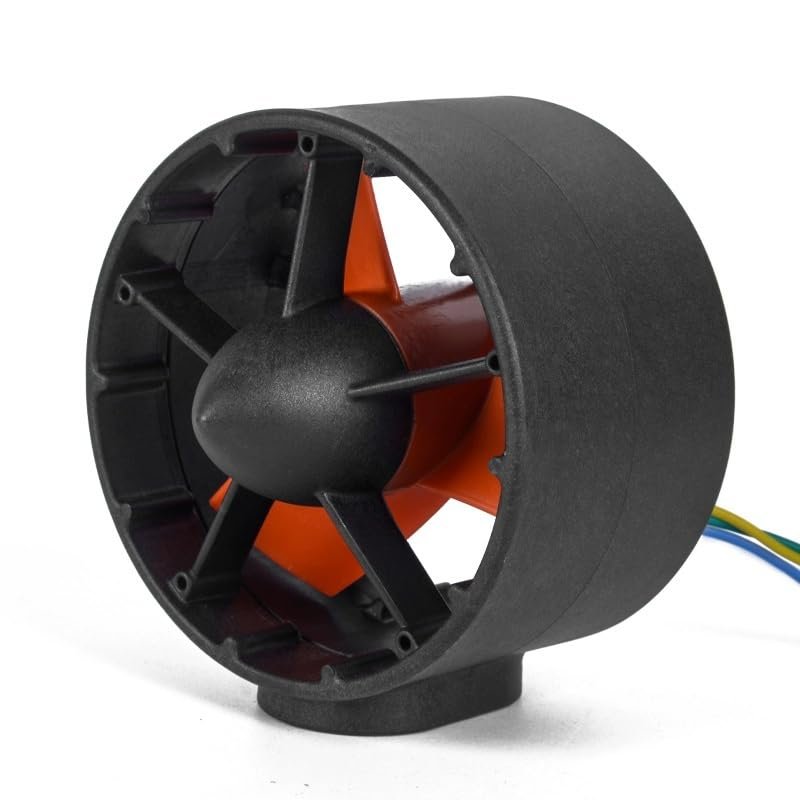

12-24V 7kg ROV Submarine Thruster CW/CCW Propeller, Underwater Motor for ROV & RC Boat(Left-CCW)

Description

• 7kg high thrust: 400W rated power, providing power for submersibles and unmanned vessels in one step.
• CW/CCW optional: dual thrusters counter-rotate to offset torque, making the ROV more stable.
• Simulation shell + stainless steel bearing: pressure-resistant and wear-resistant.
• 20-40A: Adjust the current to save power and avoid burning the machine.
• Free installation direction: the big mouth or small mouth can face forward, and the thrust direction can be quickly adjusted on site.

Propeller definition:
CCW means counterclockwise rotation, install the left side / positive propeller
CW is clockwise rotation installation right / reverse propeller

Simulation shell, precision blades, stainless steel bearings
Voltage: 12-24V
Rated current: 20A
Thrust: 7KG
Maximum current: 40A
Rated power: 400W

FAQ
Q:Why are there two types of propellers: CW and CCW?
1. Used for double push, one side uses CW and the other side uses CCW to offset the bad torque
2. The thrusters are installed in different directions, resulting in different forward and reverse thrusts
Q:Which direction should the thruster head be installed?
The big head faces forward or the small mouth faces forward.
Q: Which direction does the thruster have greater thrust when installed?
When the big mouth is the outlet, the thrust is greater than when the small mouth is the outlet.
Q: How does the dual-thruster offset the torque?
The thrusters on both sides are installed in the same direction, one side uses CW and the other side uses CCW
Q: How to determine the propeller direction after changing to CW or CCW propeller?
Start the propeller to rotate in the air, and the water will flow in the direction of the wind.
Q: What is the relationship between thrust direction and water flow direction (wind direction)?
On the contrary, the thrust moves forward and the water moves backward, the equipment moves forward and the water moves backward
Q: The thrust direction is wrong, how to adjust the steering?
Any exchange of two phase lines of the thruster will reverse or use the opposite signal range
