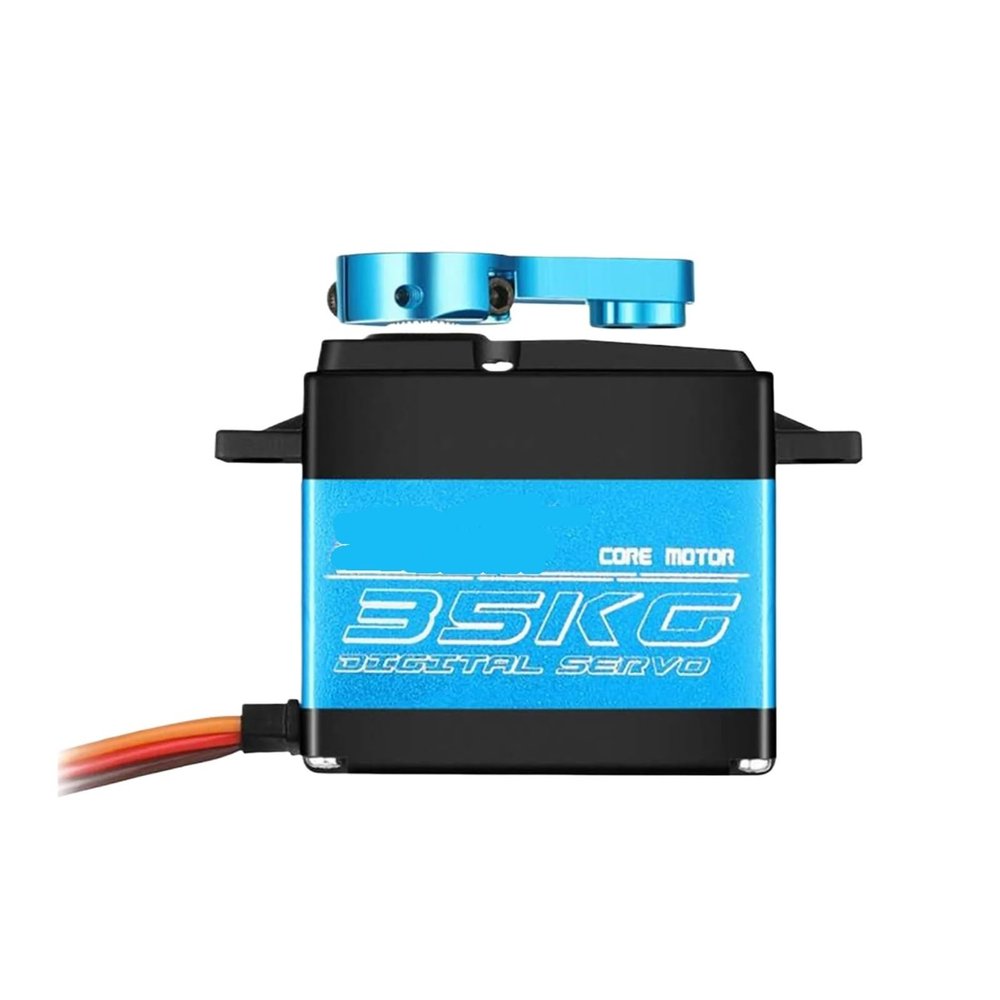

1/2/4pcs 35KG FT5330M Digital Servo Motor 7.4V 180 Degree RC Metal Gear Waterproof Suitable for 1/8/10 RC(1 pcs)

Description

• Servo Gears

Servo Gears
specifications
Working voltage: 6V 7.4V
No-load speed: 0.238 sec/60(42PPM) 0.192 sec/60(52RPM)
Running current (no load): 150mA 180mA
Stall torque (locked): 28.8kg. cm400. 65oz. in 35. 5kg. cm493.86oz. in
Stall current (locked): 3.2A 3.9A
Idle current (when stopped): 6mA 6mA
Input voltage: 4V-8.4V 4V-8.4V
Rated torque: 9.5kg. cm . 11.8kg. cm
Rated current: 1000mA 1200mA
KT: 10 kg.cm/piece
Mechanical Specifications:
Input voltage: 4V-8.4V
Operating temperature range -20C~60C
Size: 55X20X43mm
Operating stroke: 180 (500-2500 seconds)
Neutral position: 1500 seconds
Pulse width range: 5002500 seconds
Waterproof performance: IP54
Limit angle: unlimited
Case material: Pa+aluminum
Gear Material: Steel
Bearing Type: Ball Bearing
Angle sensor: Carbon film potentiometer
Lifespan: at least 1,000,000 times
Connectors and cables: JR
Material: PVC
Length: 30 cm
Pin definition: 1 signal
2 volts
3. Grounding
Speaker type: 25T/5.9mm
Gear ratio: 1/356
Backlash: 0.5 degrees
Joystick phantom: 0 degrees
Rocker screw: M3*6
Motor: Iron core motor
Package Contents (1 piece):
1 X FT5330M 35KG Digital Server
1 X 25T Arm
1 X Servo Accessory
Package Contents (2 pieces):
2 X FT5330M 35KG Digital Server
2 X 25T Arm
2 X Servo Accessories
Package Contents (4 pcs):
4 X FT5330M 35KG Digital Server
4 X 25T Arm
4 X Servo Accessories
