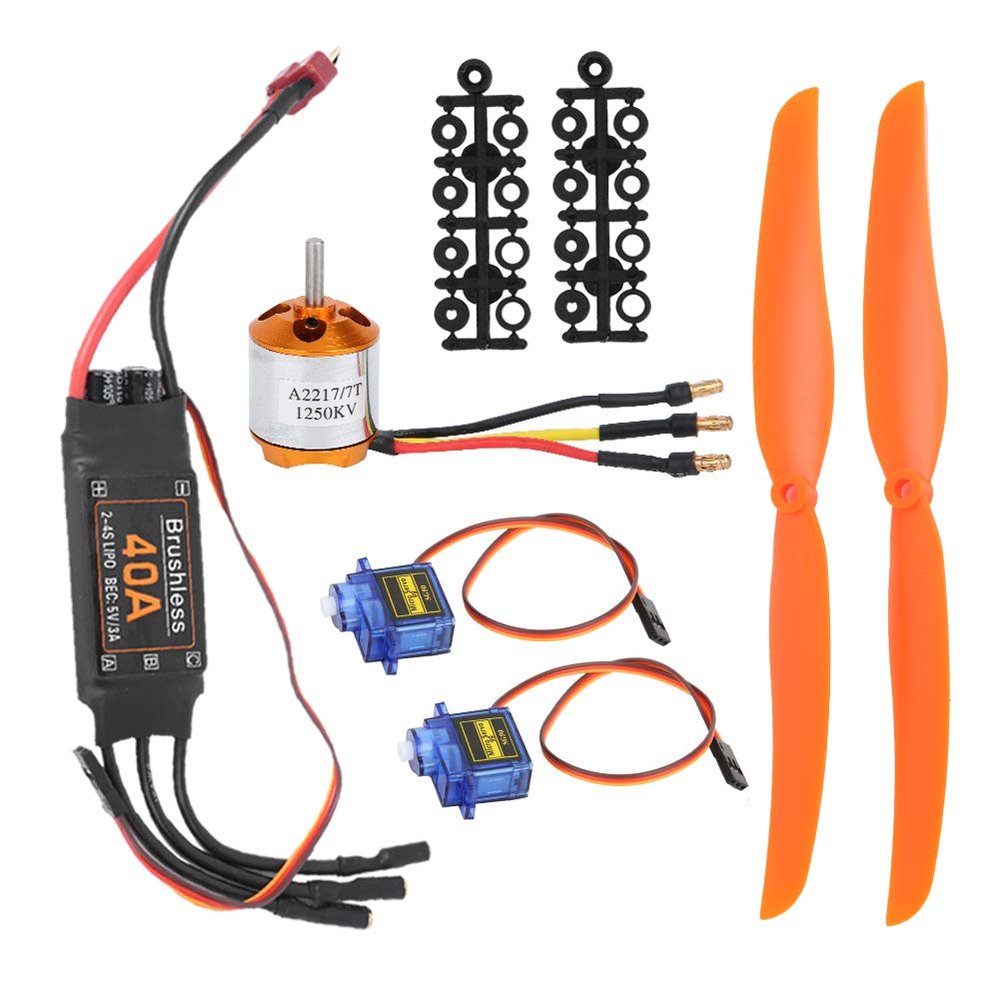

1250KV Brushless Motor, 40A ESC, SG90 9G Micro Servo, 8060 Propeller Kit Upgrade Accessories for RC Plane (A2217 KV1250KV+40A ESC SG90 9G Micro-servo 8060)

Description

• [Battery Compatibility] Compatible with lithium and metal hydride batteries, this kit is for long-lasting use.
• [Multifunctional Usage] Adjust the settings to suit different brushless motors, meeting various demands for flexibility and convenience.
• [Safety Featured Esc] The 40a esc comes with safeprotection and throttle calibration functions, supporting various procedures and methods for convenient use.
• [ComprehensiveProtection] With features like low voltage cut-offprotection, , and throttle signal lossprotection, your rc plane is safeguarded duringoperation.
• [Powerful Micro Servo] Weighing only 9 grams, with atorque of 1.5kg/cm, this servo is both powerful and reliablefor optimal performance.

Specification:
Condition: Brand New
Item Type: RC Plane Parts
Material: ABS + Electronic Components
Type: 1250KV Motor + 40A ESC + 9G Servo+ 8060 Propeller
SG90A 9G Servo:
Size: Approx. 21.5 x 11.8 x 22.7mm / 0.8 x 0.5 x 0.9in
Weight: 9 g / 0.3 oz(approx.)
No-Load Speed: 0.12 seconds / 60 degrees (4.8V)
BlockingTorque: 1.5-1.7kg/cm (4.8V-6V)
Working Temperature: -30 ~ + 60
Dead Zone Setting: 5 microseconds
Working Voltage: 4.8V-6V
2217 Motor:
Size: Approx. 27.8 x 32mm / 1.1 x 1.3in
Weight: 68 g / 2.4 oz(approx.)
Shaft Diameter: Approx. 4mm / 0.2in
Accessories: 4.0mm pillar adapter, motor mounting seats, screws
Props Recommended:
2217-1100kV: 11 or 10 inch items, e.g. 1155, 1070, 1060, etc.
2217-1250kV: 9-inch prop, e.g. 9050, 9045, 9060, etc.
2217-2300KV: 6 inch item, e.g. 6040, etc.
40A ESC:

Specifications:
Types: Long, short
Current: 40A
Output Capacity: Continuous current 40A, short current 55A (not less than 10 seconds)
Power Input: 2-4 lithium batteries (not included)
BEC Output: 5V@3a (Linear voltage regulator mode - linear mode)
Maximum Speed: 210,000 RPM for 2-pole motor, 7,000 RPM for 6-pole motor, and 35,000 RPM for 12-pole motor
Size: Approx. 68 x 25 x 8mm / 2.7 x 1 x 0.3in

packing list:
2 x 9G SG90 Servo
1 x KV1250 Brushless Motor
2 x 8060 Propeller
2 x Propeller Gasket
1 x 40A ESC
