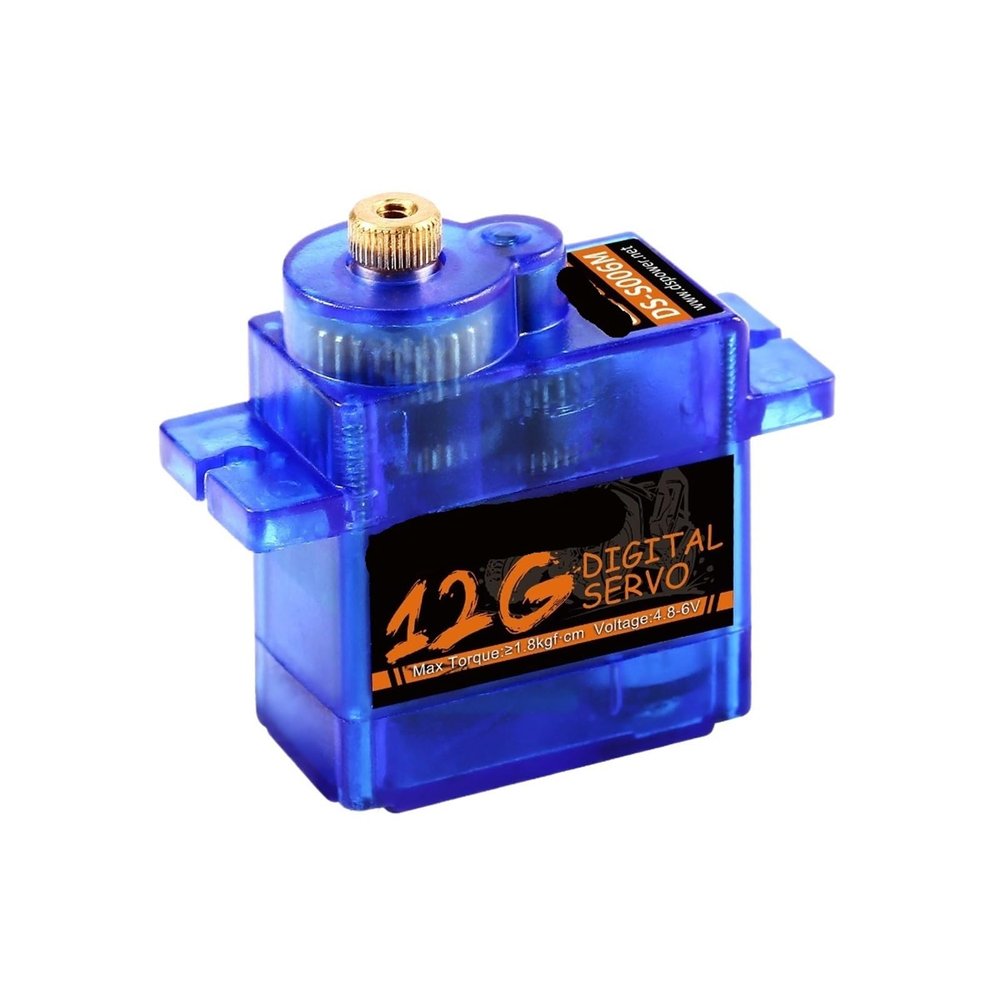

12g Mini Metal Gear Digital Servo Motor 1Pcs

Description

• Alternators

Alternators
Specifications:
Item name: DS-S006M
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V1.30kgf.cm ; 6.0V1.50kgf.cm
No Load Speed : 4.8V0.13sec/60; 6.0V0.11sec/60
Stall Current:4.8V700mA;6.0V800mA
Consumption Current* (No Load):4.8V 150mA ;6.0V170mA
Max. Operating Travel Angle:18010(1000~2000s)
Dead Band Width: 3us
Mechanical Limit Angle: 360
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Horn Gear Spline:40T/4.85mm
Weight: 13.5 g
Size: 27.3 12 23mm
Length of Connector cable: JR 2505mm
Wheelbase : Bottom Plate
Size : 27.3 x 12 x 23mm
