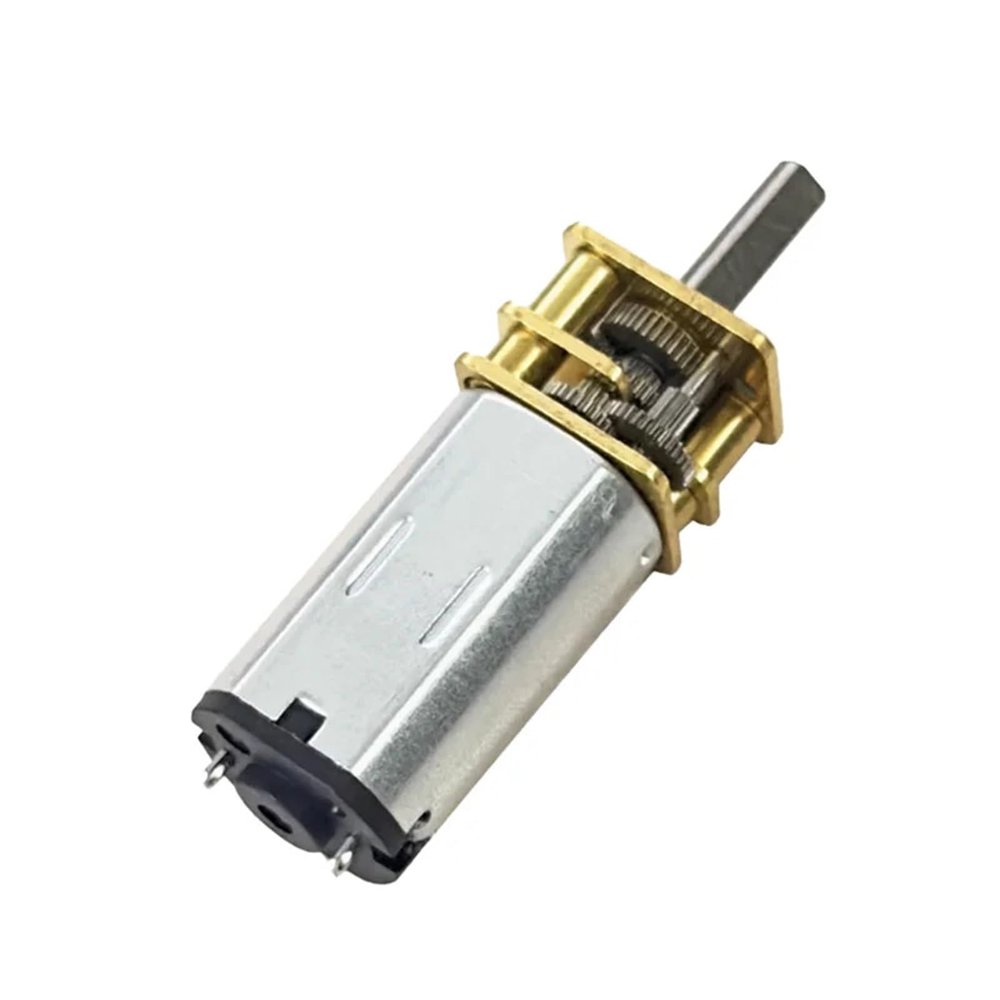

12GF-N30 Reducer Motor Miniature Small Low-Speed Intelligent Lock car Metal Gear 3V6V12V 15-4000rpm 0.1-2.2kgf.cm(60rpm,3V)

Description

• High Torque & Lower Noise: Long carbon brush high life, high precision gear design, small size, high torque, low noise, high efficiency
• ALL-METAL GEARS: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the turbo worm gear box motor body
• PURE COPPER WIRE CORE ROTOR: With precision winding technology, the turbo worm geared motor power instant increased by 30%.
• Application: bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine,electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner
• Positive-Negative Rotation: This type is miniature High Torque Electric Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed

Product parameters
Brand: Tengyu Motor
Model: 12GF-N30
Material: Metal
No load current: 0.01A-0.12A
No-load Speed:15rpm-4000rpm
Voltage: 3V/6V/12V
Rated torque: 0.1kgf.cm-2.2kgf.cm
Power: 0.3W
Axis diameter: 3mm D-axis
Output shaft length: 10mm
Gearbox diameter: 12mm
Weight: Approximately 12.3g
Motor precautions:
1. When using the motor, there should be no restraints, such as adhesives, which should not be injected into the bearings through the rotating bearings to hinder the operation of the motor.
2. The rotation of the shaft may have the opposite effect on the lifespan of the motor. For the extension of lifespan, please check if your load complies with regulations
Fixed, do not overload or hang items that hinder rotation on the shaft end.
3. Manufacturing heavy radiation loads with eccentricity is harmful to the lifespan of the motor.
4. Do not store in high temperatures or extreme humidity around, and do not place in corrosive gas, as it will reduce the effectiveness of the motor.
5. Do not operate the motor in high temperature and humidity surroundings.
6. When soldering the motor terminals of the positive and negative poles of the power supply, the temperature of the soldering iron should be 340 40 , and the heating time should not be less than 3 seconds
Plastic deformation can cause solder points to flow into the motor or break the ends of wires during operation, which can lead to a decline in motor function.
7. Do not let the motor shaft get stuck. When power is applied, it will cause the motor to overheat and burn out its accessories in a short period of time.
8. Due to the lack of technical skills among the staff, it is impossible to guarantee the quality of the motor when encountering issues mentioned in the manual or when it appears to be a fault on the surface
Quantity.
9. Supply regulated electricity, ensuring it is within the measurable requirements.
10. The installation of pulleys or gears should not be abnormally weighted when pressed in.
11. When installing the motor, if the screws are too long, it will cause contact between the motor itself and the rotor, which will affect the characteristics.
Hign-concerned Chemical : None
Color : Gold
<;18.65
Torque : 0.1kgf.cm-2.2kgf.cm
Usage : BOAT,Fan,Home Appliance
Model Number : 12GF-N30
Continuous Current(A) : 0.01A-0.12A
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Drip-proof
Commutation : Brush
Output Power : 0.3W
