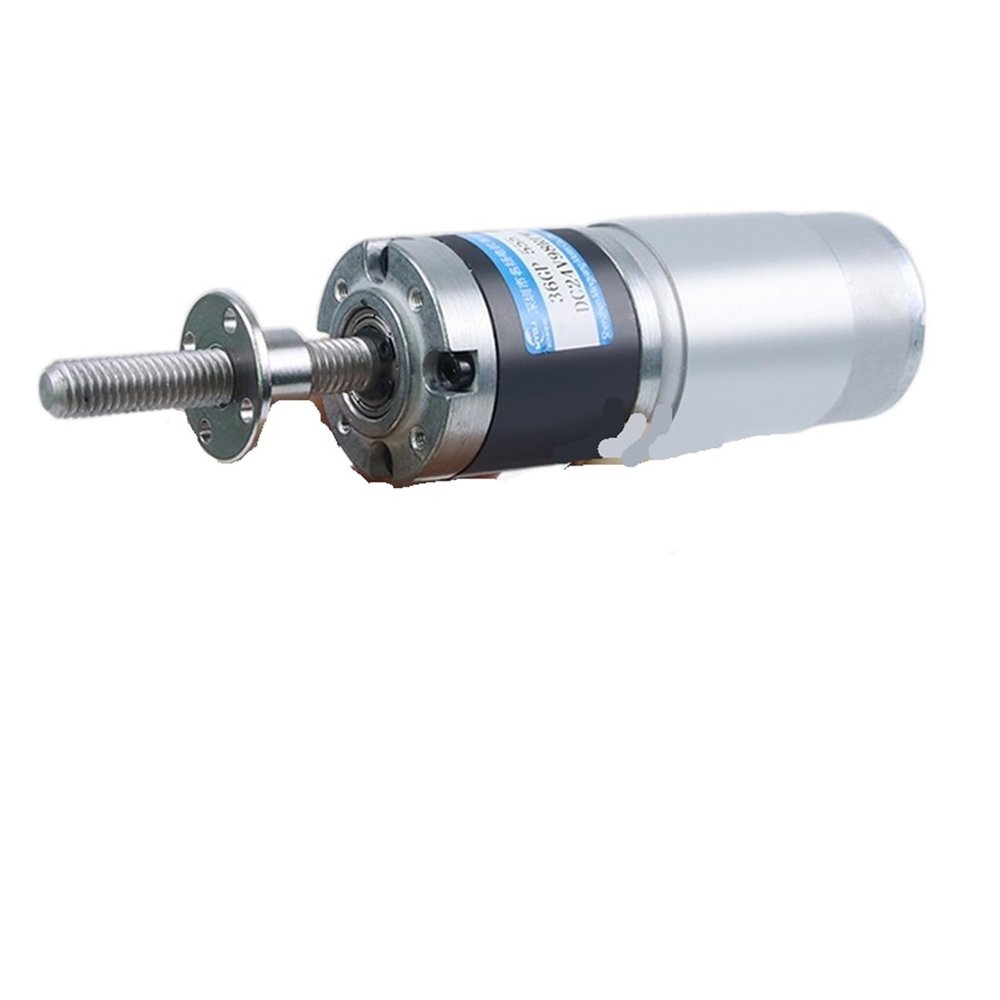

12v 100kg. CM high torque planetary DC gear motor with encoder M8 threaded screw(12V 160 rpm)

Description

• Motors

Motors
12V/24V DC Planetary Gear Motor
full metal gear
M8 national standard screw
Forward and reverse switching
Pulse Width Modulation Speed Regulation
Hall encoder
For one revolution of the shaft, the flange moves 1.25mm
Rated torque 200kg.cm
Ultimate torque 360kg.cm
Hall encoder speed real-time feedback
A/B dual-phase output basic signal 16PPR
Calculation : motor speed real-time feedback actual output speed = motor speed / number of signals per cycle / reduction ratio
M8 screw output shaft
Wire teeth
Shooting axis 500mm
Effective tooth length 48mm
The M8 thread pitch is 1.25 mm, and the flange moves 1.25 mm after one revolution
It can be used with flanges and can be divided into two types: straight teeth and reverse teeth.
Long axis 100mm
Effective tooth length: 98mm
