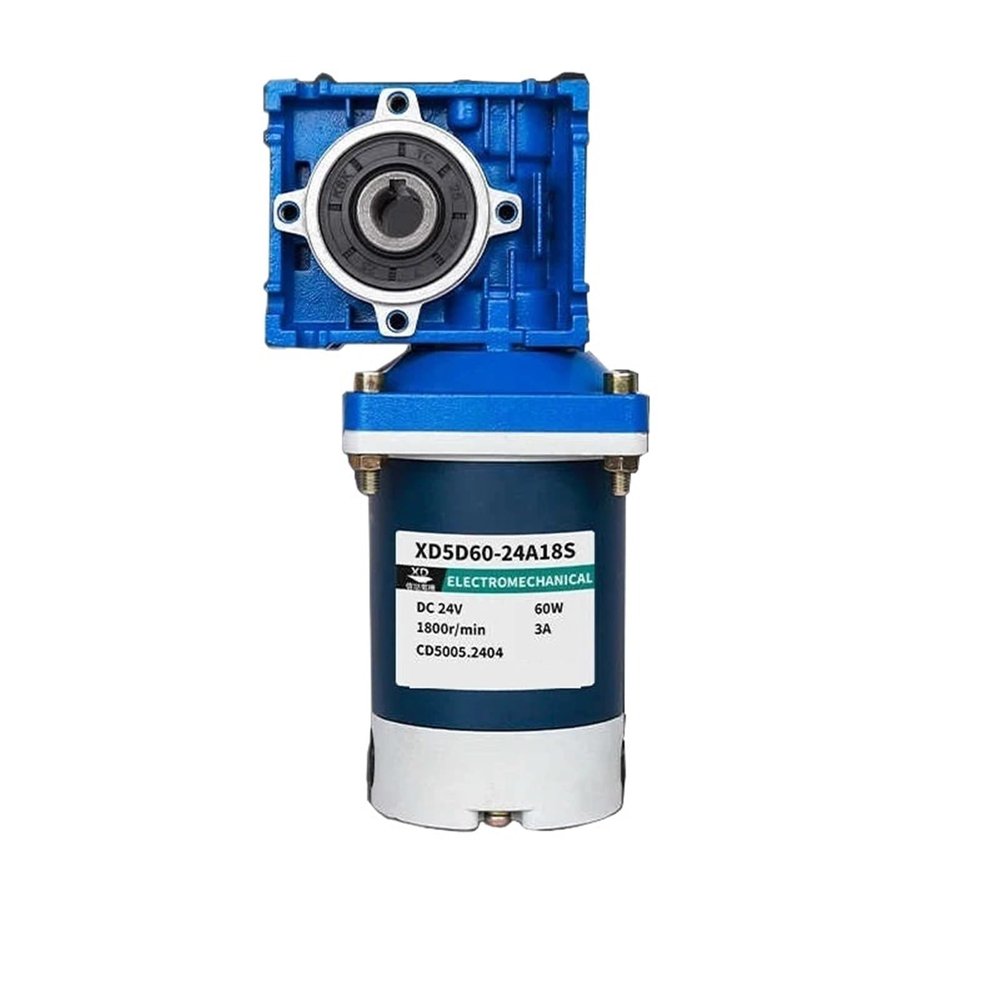

12V 24V 60W NMRV30 DC Worm Gear Motor with Dual Output Shaft RV30 Adjustable-Speed High Torque(42rpm,12V)

Description

• Motor

Motor
12V 24V 60W NMRV30 DC Worm Gear Motor with Dual Output Shaft
RV30 Adjustable-speed High Torque
Model:5D60GN-RV30

Specification data of 60w NMRV30 worm DC motor:
Model: XD-5D60GN-RV30
Voltage: 24 v
Power: 60 w
Current: 12V 4.1A/24V 3A
Output shaft model: single output / dual output
Shaft diameter: motor: 12mm, worm reducer: 14mm.
(motor+reducer)*1set+ Dual output shaft*1pc

High-concerned chemical : None
Output Power : 37.5-74.6(include74.6)
Torque : 1.29-9.8N.m
Model Number : 5D60GN-RV30
Continuous Current(A) : 12V 4.1A/24V 3A
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation : Brush
Efficiency : IE 2
Output Power : 60W
Voltage(V) : 12V 24V
Speed ratio : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1
No-load speed : 2100rpm
Load speed : 1800rpm
Output speed : 27rpm-420rpm
