1303.5 2500KV 3800KV 5500KV Racing Brushless Motor 3~6S Lipo for RC 2.0inch Cinewhoop 2.5inch Toothpick Drones (1PC 1303.5 5500KV)

Description

• 1303.5 2500KV 3800KV 5500KV Brushless Motor provides the most incredible power and thrust in the lightest weight,sturdy structure and high-quality materials make performs like a Strong monster
• There is a non-slip design on the contact surface between the motor and the propeller to increase friction and to improve durability.
• Design a lot of heat dissipation holes, heat dissipation ability, enhance the life of the motor

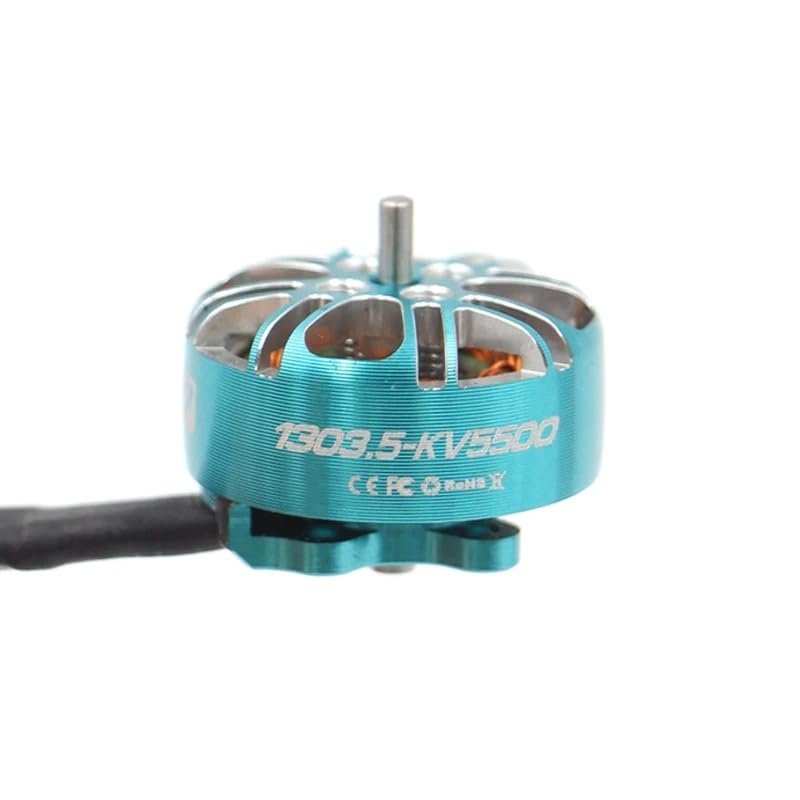

Item: SPARKHOBBY XSPEED 1303.5 2500KV 3800KV 5500KV Brushless Motor
Parameters:
Overall Dimension: 17.311.3mm
prop mounting shaft diameter: 1.5mm
Installation hole position: 99mm,M2

Prop:2inch~3inch
Shaft Diameter: 2mm
Lead Wire Size: 24AWG100mm
Configuration: 9N12P
Magnet Wire: 200 Enameled Wire
Lipo:
2500KV(4~6S)
3800KV(3~6S)
5500KV(2~4S)

Weight:6.6g

Peak Current:
2500KV(4.4A)
3800KV(6.5A)
5500KV(8.9A)

ldle Current:
2500KV(10V/0.8A)
3800KV(5V/0.4A)
5500KV(6V/0.5A)

Maximum Power:
2500KV(100W)
3800KV(144W)
5500KV(132W)

Internal Resistance:
2500KV(780)
3800KV(365)
5500KV(195)
Package Included:
1303.5 2500KV Brushless Motor x 1 M2x 4mm Screw x 4 or
1303.5 2500KV Brushless Motor x 4 M2x 4mm Screw x 16 or
1303.5 3800KV Brushless Motor x 1 M2x 4mm Screw x 4 or
1303.5 3800KV Brushless Motor x 4 M2x 4mm Screw x 16 or
1303.5 5500KV Brushless Motor x 1 M2x 4mm Screw x 4 or
1303.5 5500KV Brushless Motor x 4 M2x 4mm Screw x 16
