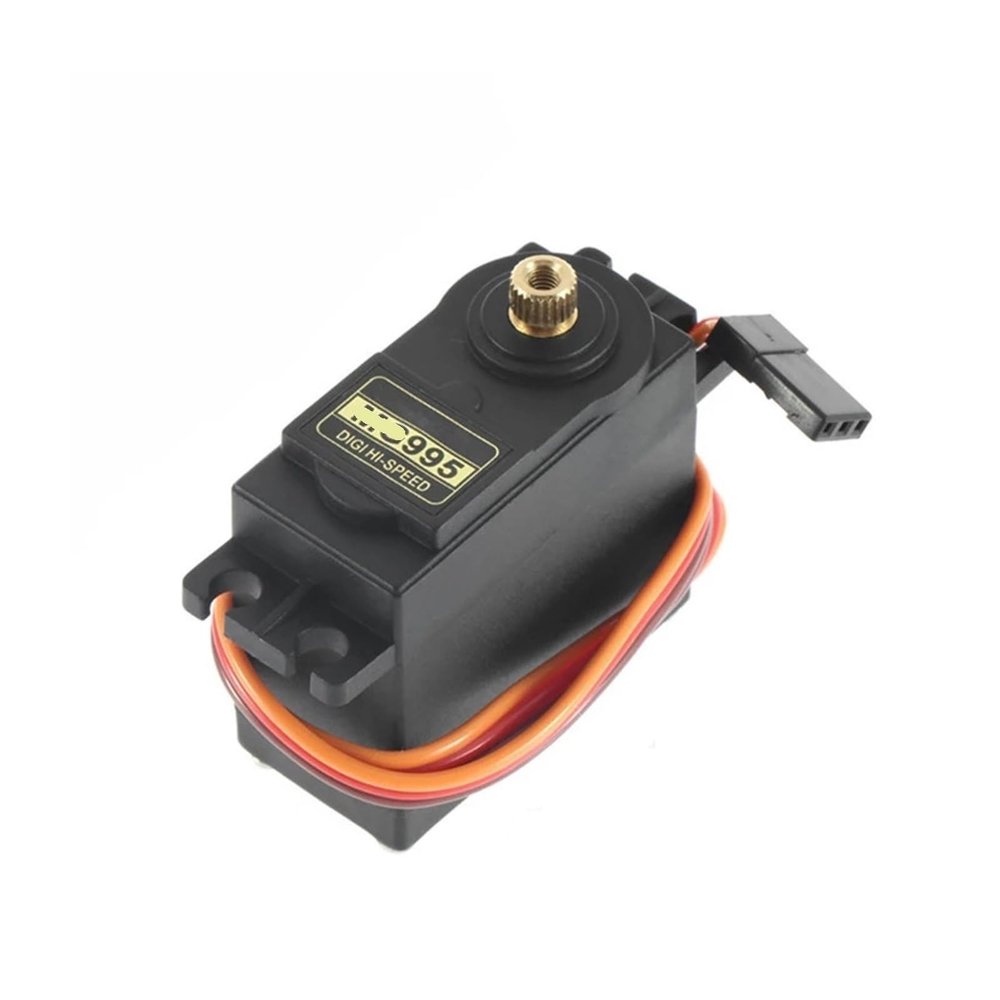

13KG 15KG Servo Digital 996 Servo Gear(995 90-180 Radian)

Description

• Servo Gears

Servo Gears
Specification:
Dimensions: 40mm x 19mm x 43mm
box: No
Net weight: 65g
Packing weight: 75g
Color: Black
Operation speed: 0.17 seconds/60 degrees (4.8V no load)
Operation speed: 0.13 seconds/60 degrees (6.0V no load)
Stall Torque: 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque: 15 kg-cm (208.3 oz-in) @ 6V
Operating voltage: 4.8 - 7.2 volts
All Equipment: Metal
Cable: Heavy duty, 11.81 in (300 mm)
Rotation angle 90~180 degrees
996R
feature:
Gear Type: Metal Gear
Stall torque: 12kg/cm (6V)
Power supply: via external adapter
Operating voltage: 4.8 - 7.2V
Temperature range: 0C to 55C
Operation speed: 0.17 seconds/60 degrees (4.8V no load)
Operation speed: 0.13 seconds/60 degrees (6.0V no load)
Fits most standard receiver connectors: Futaba, Hitec, Sanwa, GWS, etc...
Stable and shockproof.
Connecting wire: length 300mm

All equipment: Full metal
Rotation angle 90~180 degrees
Specification:
Cable length: 300 mm
Package size: 54 x 38 x 20 mm
Net weight: 65g
Package weight: 75 g
Color: Black
The control of the servo generally requires a time base pulse of about 20ms. The high level part of the pulse is generally in the range of 0.5ms-2.5ms for the angle control pulse part, and the total interval is 2ms. Taking a 180-degree angle servo as an example, the corresponding control relationship is as follows:
0.5ms--------------0 degrees;
1.0ms------------45 degrees;
1.5ms------------90 degrees;
2.0ms-----------135 degrees;
2.5ms-----------180 degrees;
Package Included:
1X55g Metal Gear Servo
Note: 360 degree servo: It is actually equivalent to a stepless speed reduction motor, which can control speed and direction, but does not have 0-360 degree angle control function.
