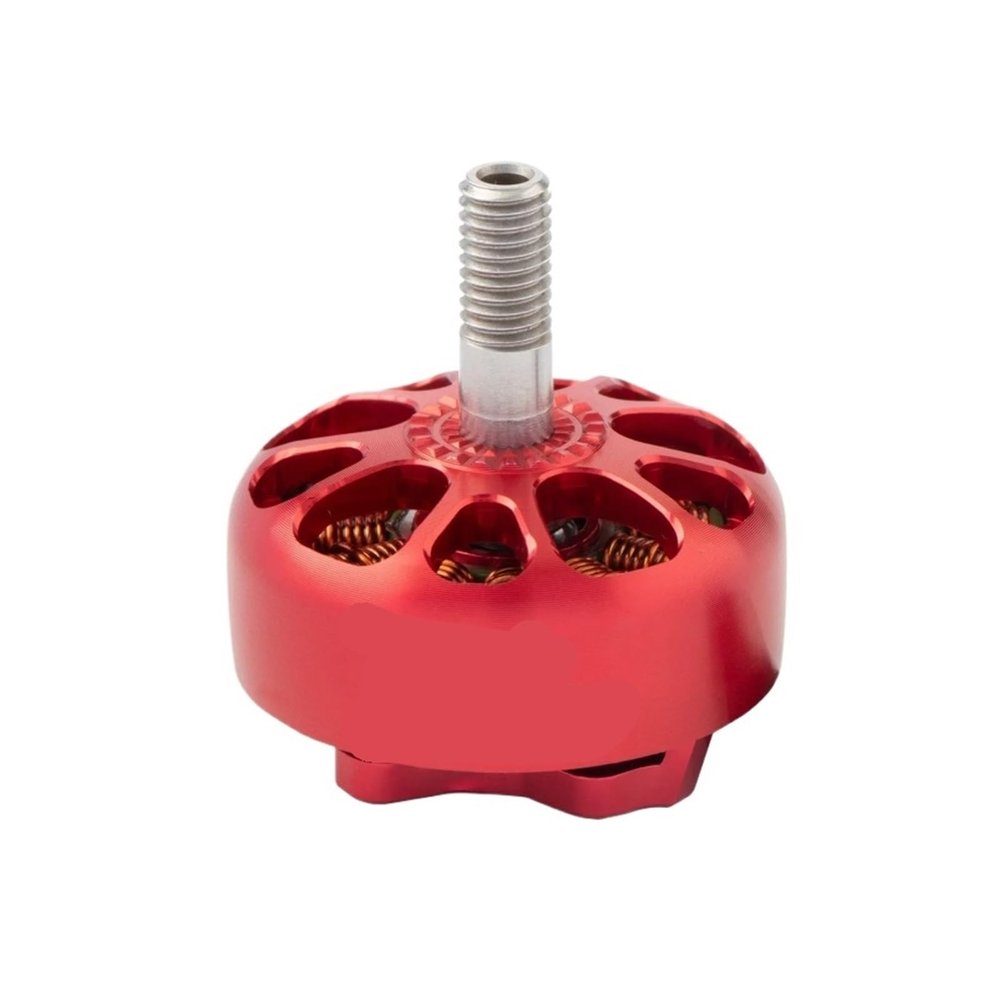

1/4 Piece K2306.5 2306 1900KV /2300KV/2550KV Motor(4PCS 1900KV)

Description

Servos
Weight: 36g (including cable)
Motor size: 29.8 x 18.8mm
Stator diameter: 2m
Stator height: 6mm
Shaft diameter: m
Mounting screw type: 16x16mm (M3*4)
Configuration: 12N14P
Motor cable: 20#AWG 150mm
KV value: 1900KV, 2300KV, 2550KV or customized KV
It is recommended to use a 5~6 inch propeller

6082 aluminum clock
K2306.5-1900KV motor specifications
Maximum thrust: 1645g
Lithium polymer battery: 3-6S
Current: 33.2A
Recommended ESC: 20A~30A
Maximum power: 796W
Motor height: 18.8mm
K2306.5-2300KV motor specifications
Maximum thrust: 1602g
Lithium polymer battery: 3-5S
Current: 36.8A
Maximum power: 736W
Motor height: 18.8mm
K2306.5-2550KV motor specifications
Maximum thrust: 1415g
Lithium polymer battery: 3-4S
Current: 36.8A
Maximum power: 633W
Motor height: 18.8mm
Electric or not: No battery
Quantity: 1 piece
Wheelbase: screw
Is it battery/power supply: No
Is it a charger/adapter: No
Does it include batteries: No
Model: K2306.5
