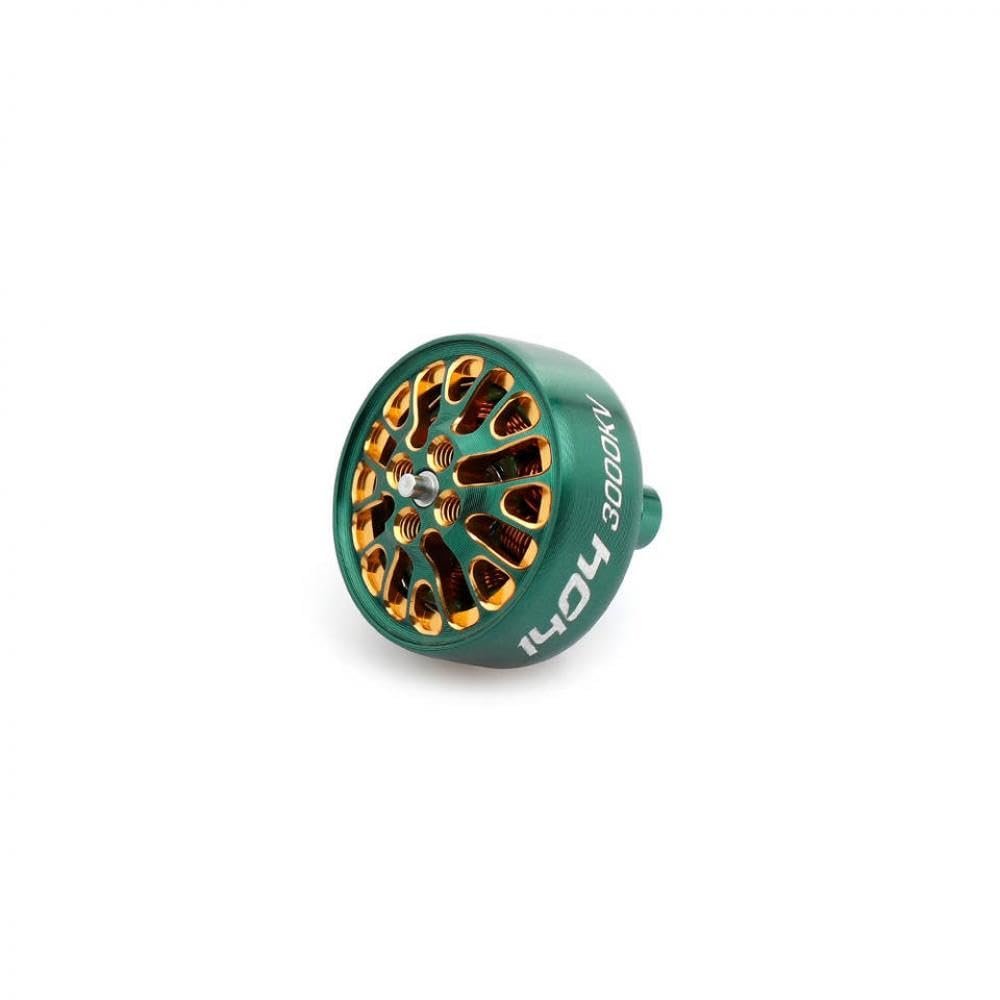

1404 Brushless Racing Motor 3000KV 4000KV Compatible with RC Racing Drone Compatible Cine Whoop Builds(1PCS 1404 3000KV)

Description

• Experience the power of the TOKA 1404 brushless motor designed specifically Compatible with racing applications.
• Choose between 3000KV and 4000KV options to match your unique drone racing needs and optimize performance.
• Enjoy the compact design of this motor, making it an excellent choice Compatible with cine whoop builds and tight-fit racing drones.
• Benefit from the construction that supports performance flights without compromising on reliability or efficiency.
• Explore versatility Compatible with various drone setups, enabling you to customize your racing experience based on your specifications.

Specification Compatible with 1404 3000KV Racing Motor
Overall Dimension: 20.515mm
Prop Mounting Shaft Diameter: 1.5mm
Installation Hole Position: 1212mm, M2
Prop Size: 2.5inch~4inch (Toothpick)
Bearing: 5*2*2.5
Shaft Diameter: 2mm
Lead Wire Size: 24AWG150mm
Slots/Poles: 9N12P
Wire: 240 Enameled Wire
Stator Diameter: 14mm
Stator Height: 4mm
Rated Voltage: 3S~6S (12.6V~25.2V)
Peak Current: 11.95A
Idle Current: 10V/0.3~1.0A
Maximum Power: 286.8W
Internal Resistance: 310
Weight: 10.5g
Specification Compatible with MAMBA TOKA 1404 4000KV Racing Motor
Overall Dimension: 20.515mm
Prop Mounting Shaft Diameter: 1.5mm
Installation Hole Position: 1212mm, M2
Prop Size: 2.5inch~4inch (Toothpick)
Bearing: 5*2*2.5
Shaft Diameter: 2mm
Lead Wire Size: 24AWG150mm
Slots/Poles: 9N12P
Wire: 240 Enameled Wire
Stator Diameter: 14mm
Stator Height: 4mm
Rated Voltage: 3S~4S (12.6V~16.8V)
Peak Current: 13.48A
Idle Current: 10V/0.5~1.2A
Maximum Power: 215.6W
Internal Resistance: 175
Weight: 10.5g
