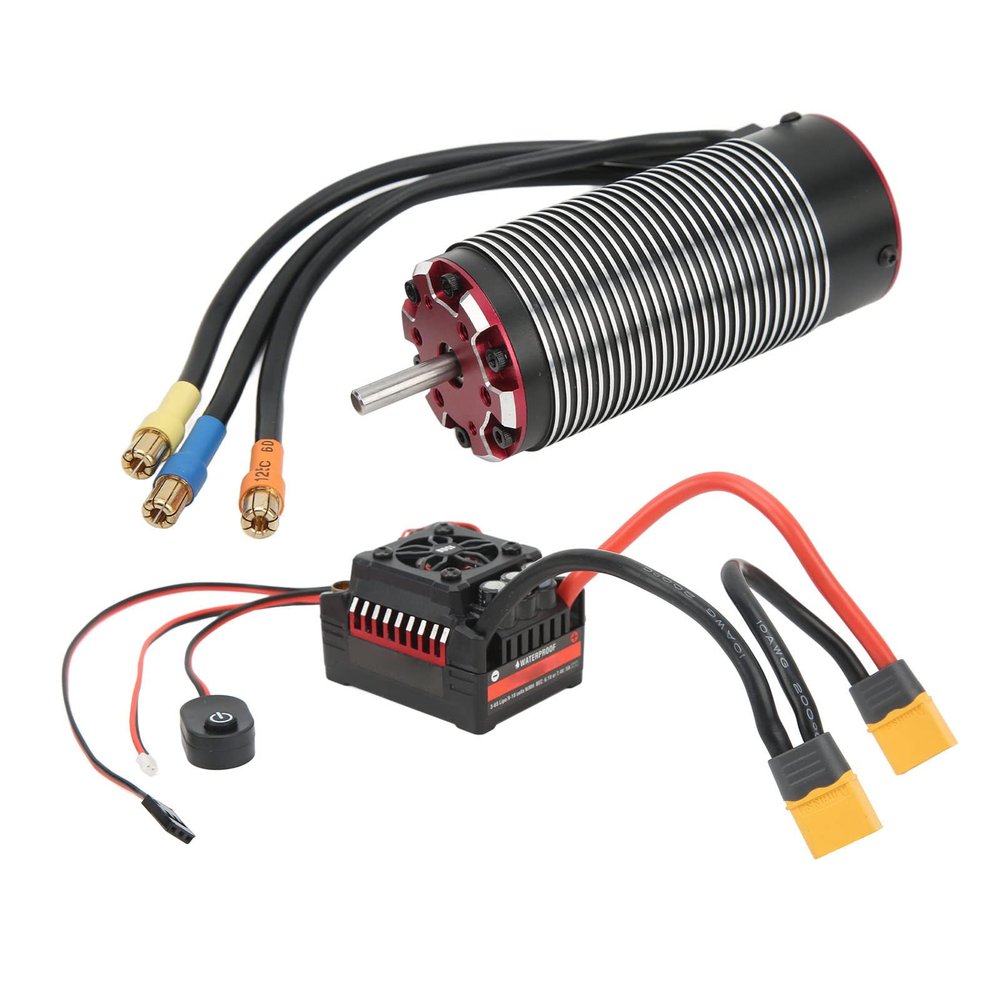

150A Waterproof ESC High RC Brushless Motor ESC Set for 1/8 Scale RC Car

Description

• Waterproof ESC: The all weather waterproof and dustproof design of the ESC, specially designed for RC model cars, has excellent starting, acceleration and linear functions. Suitable for , for Wltoys, for HSP 1/8 RC car.
• Durable Motor: 4 pole rotor design, with strong and stable output power, low friction, low noise and high accuracy. Explosion proof rotor, high toughness stainless steel output shaft, high accuracy bearings make the motor super durable.
• Detachable: The detachable structure design is convenient for cleaning and maintenance, effectively prolonging the service life of the motor and improving work efficiency. The motor has a built in temperature sensor and interface, which can be used with the ESC to realize the motor overheating protection function.
• Multiple Protection: Low voltage cut off protection for lithium or nickel batteries, ESC overheating protection, motor overheating protection, throttle signal loss protection, motor stall protection, easy to program and compatible with pocket sized program cards.
• Premium Components: High hardness aluminum CNC shell, high temperature resistant copper coil, 0.2mm thickness silicon steel sheet, high magnetic permeability, high silicon content, good insulation and heat resistance. Strong anti current ability, excellent heat dissipation, built in switch mode 6.1V 5A or 7.4V 5A (switching mode), compatible with high and high voltage servo.

Feature:
1. Durable Motor: 4 pole rotor design, with strong and stable output power, low friction, low noise and high accuracy. Explosion proof rotor, high toughness stainless steel output shaft, high accuracy bearings make the motor super durable.
2. Premium Components: High hardness aluminum CNC shell, high temperature resistant copper coil, 0.2mm thickness silicon steel sheet, high magnetic permeability, high silicon content, good insulation and heat resistance. Strong anti current ability, excellent heat dissipation, built in switch mode 6.1V 5A or 7.4V 5A (switching mode), compatible with high and high voltage servo.
3. Waterproof ESC: The all weather waterproof and dustproof design of the ESC, specially designed for RC model cars, has excellent starting, acceleration and linear functions. Suitable for , for Wltoys, for HSP 1/8 RC car.
4. Detachable: The detachable structure design is convenient for cleaning and maintenance, effectively prolonging the service life of the motor and improving work efficiency. The motor has a built in temperature sensor and interface, which can be used with the ESC to realize the motor overheating protection function.
5. Multiple Protection: Low voltage cut off protection for lithium or nickel batteries, ESC overheating protection, motor overheating protection, throttle signal loss protection, motor stall protection, easy to program and compatible with pocket sized program cards.

Specification:
Item Type: RC Brushless Motor ESC
Material: Aluminum alloy, copper, steel, plastic
Gross Weight: 828g / 29.2oz
Color: Black red
Model: 4292
KV (RPM Volt): 1780KV
Output Power: 4200W
Maximum Voltage: Maximum Current: 150A
Number of Motor Poles: 4
IO: 2.4A
Resistance (): 0.0063
Maximum Speed: 50000
Motor Diameter: 40mm / 1.6in, 42mm / 1.7in
Motor Length: 92mm / 3.6in (Without Shaft)
Shaft Diameter: 5mm / 0.2in
Shaft Length: 20mm / 0.8in
Gold Plated Connector: 6.5mm
