150KG Robot Servo Motor 12V High Torque Steel Gear Digital Steering Servo for RC Vehicles, Robotic Arms, Humanoids, and More with Mount Brackets (180 Degrees)

Description

• Unmatched Torque & Speed: Achieve up to 173kg.cm (2402.5oz-in) of maximum torque and an impressive speed of 0.19 sec/60 at 12.6V, making this servo perfect for high-performance robotic arms, industrial equipment, and remote-controlled vehicles.
• Heavy-Duty Steel Gears & High Precision: Built with high-precision steel gears and potentiometers, this servo ensures superior durability and accuracy for demanding applications. The high-resolution digital chip guarantees stable, reliable performance over time.
• Versatile & Wide Application: Ideal for robotic arms, humanoid robots, bipedal and multipedal robots, PTZ monitoring equipment, RC vehicles, and more. This servo delivers exceptional power and control across a range of robotics and automation systems.
• Enhanced Durability & Cooling: Featuring a CNC aluminum middle shell, this servo is built to withstand tough conditions while ensuring fast heat dissipation. The durable construction provides a long service life with low noise and strong anti-interference capabilities.
• Complete Set for Easy Installation: Includes free U-brackets and accessories, and the power wire is extended up to 45mm for added convenience. The servo offers a 180/270 precision control angle and can rotate 360 when powered off, making it easy to integrate into a variety of systems.

The RDS51150SG 150kg Robot Servo is a high-performance, heavy-duty digital servo designed to meet the demands of advanced robotics, industrial machinery, and remote-controlled vehicles. With impressive torque capabilities, fast response times, and durable construction, this servo is the perfect choice for those looking to upgrade or build high-precision robotic systems and RC applications.
Key Features:

Incredible Torque for High-Demand Applications: Achieve up to 173kg.cm (2402.5oz-in) of stall torque at 12.6V, ensuring exceptional power and reliability for large-scale robots, robotic arms, and heavy-duty RC models.
Fast and Precise Operation: With operating speeds of 0.19 sec/60 at 12.6V, this servo ensures rapid response times for enhanced control and performance in dynamic environments. Precision is guaranteed, even under heavy load.
Versatile Applications & Robust Construction: Perfect for robotic arms, humanoid robots, multipedal robots, PTZ monitoring equipment, and remote-controlled vehicles. The servo is built with double bearings for improved stability, and the robust aluminum construction ensures efficient heat dissipation and long-lasting durability.
Product Specifications:
Operating Voltage Range: 9V - 12.6V
Operating Speed:
10V: 0.24 sec/60
12V: 0.21 sec/60
12.6V: 0.19 sec/60
Stall Torque:
10V: 150kg.cm (2083oz-in)
12V: 165kg.cm (2291.4oz-in)
12.6V: 173kg.cm (2402.5oz-in)
Stall Current:
10V: 7.4A
12V: 8.0A
12.6V: 8.3A
Idle Current:
10V: 4mA
12V: 5mA
12.6V: 6mA
Control System: PWM
Pulse Width Range: 500-2500sec
Operating Frequency: 50-330Hz
Rotation Direction: Counterclockwise (when 1500-2500sec)
Motor Type: 3-pole motor
Gear Type: Steel Gear
Bearing: Double Bearing
Size: 2.55 x 1.18 x 1.88 inches (65 x 30 x 48mm)
Weight: 5.75oz (163g)

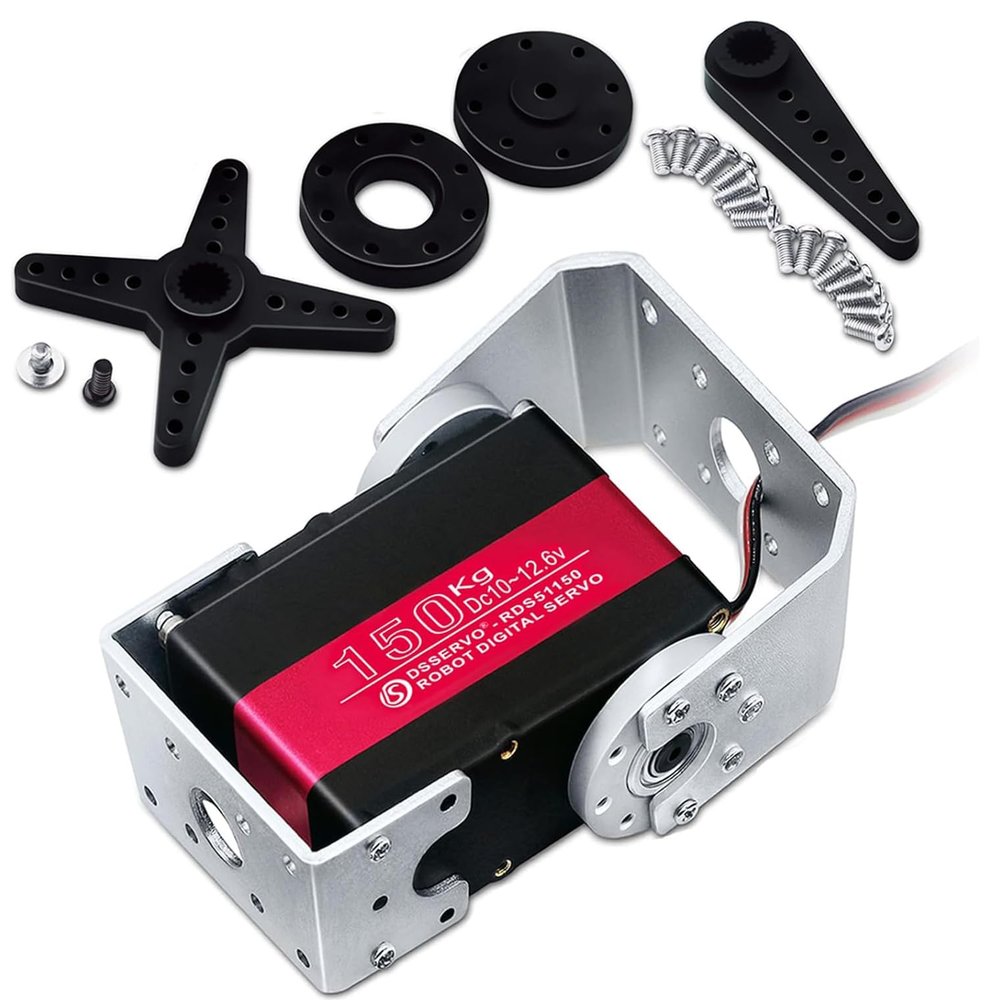

Included in the Box:
1 x RDS51150SG 150kg Robot Servo
2 x U-Shaped Aluminum Holders
2 x Aluminum Circle Discs
One Set of Plastic Accessories (as shown in the picture)
