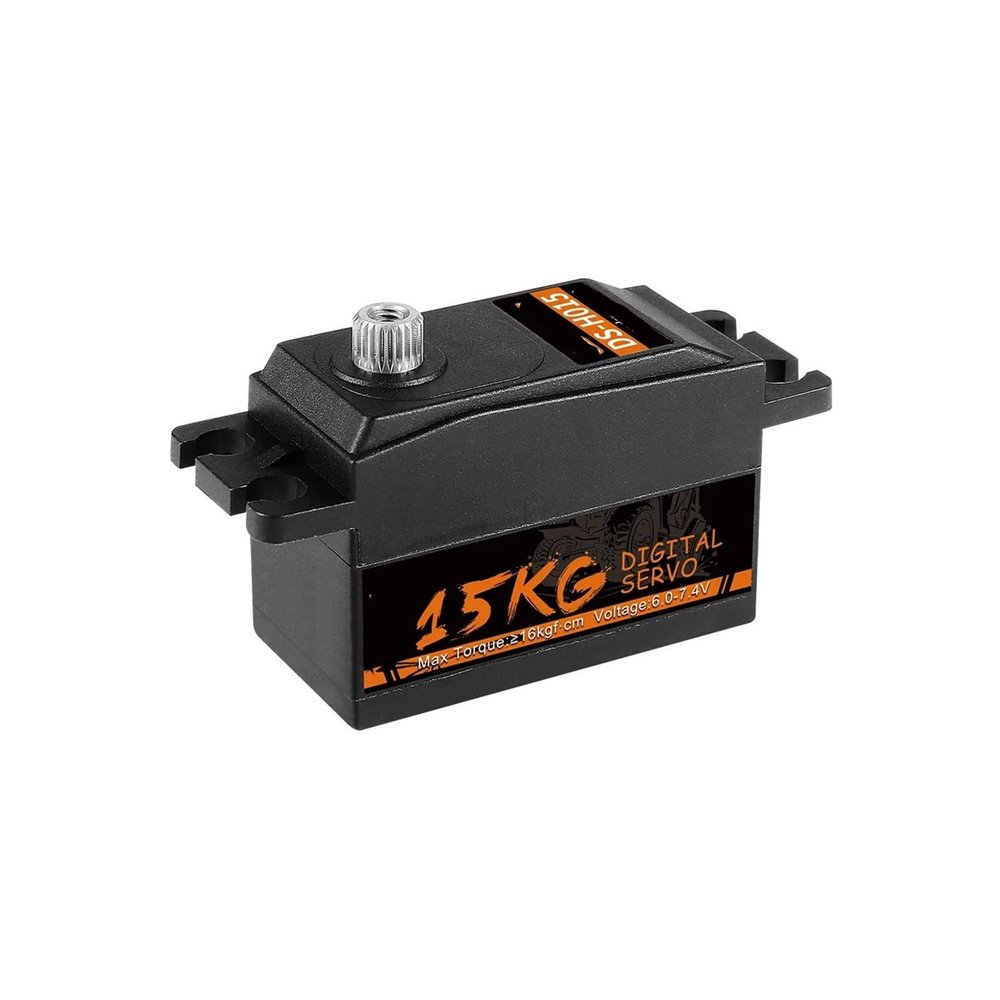

1/5/10/20pcs 15KG High Torque Metal Gear Low Profile servo Suitable for 1/8 1/10(1PCS 180 Degree)

Description

• Servo Gears

Servo Gears
Specification:
Product Name: H015
Quantity: 1/5/10/20 pieces
Working voltage: 6.0~7.4V DC
Maximum torque: 6.0V13.0kgf.cm; 7.4V16.0kgf.cm
No-load speed: 6.0V0.18s/60; 7.4V0.15s/60
Stalled rotor current: 6.0V 3600mA; 7.4V4200mA
Current consumption* (no load): 6.0V 90mA; 7.4V100mA
Maximum working stroke angle: 18010/30010 (500~2500 us)
Dead zone width: 5us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 42.5 g
Dimensions: 5623.2228.65mm
Cable length: JR 270MM5mm
Package Included:
1/5/10/20* 15KG Low Profile Server
1/5/10/20 * Servo arm accessories
