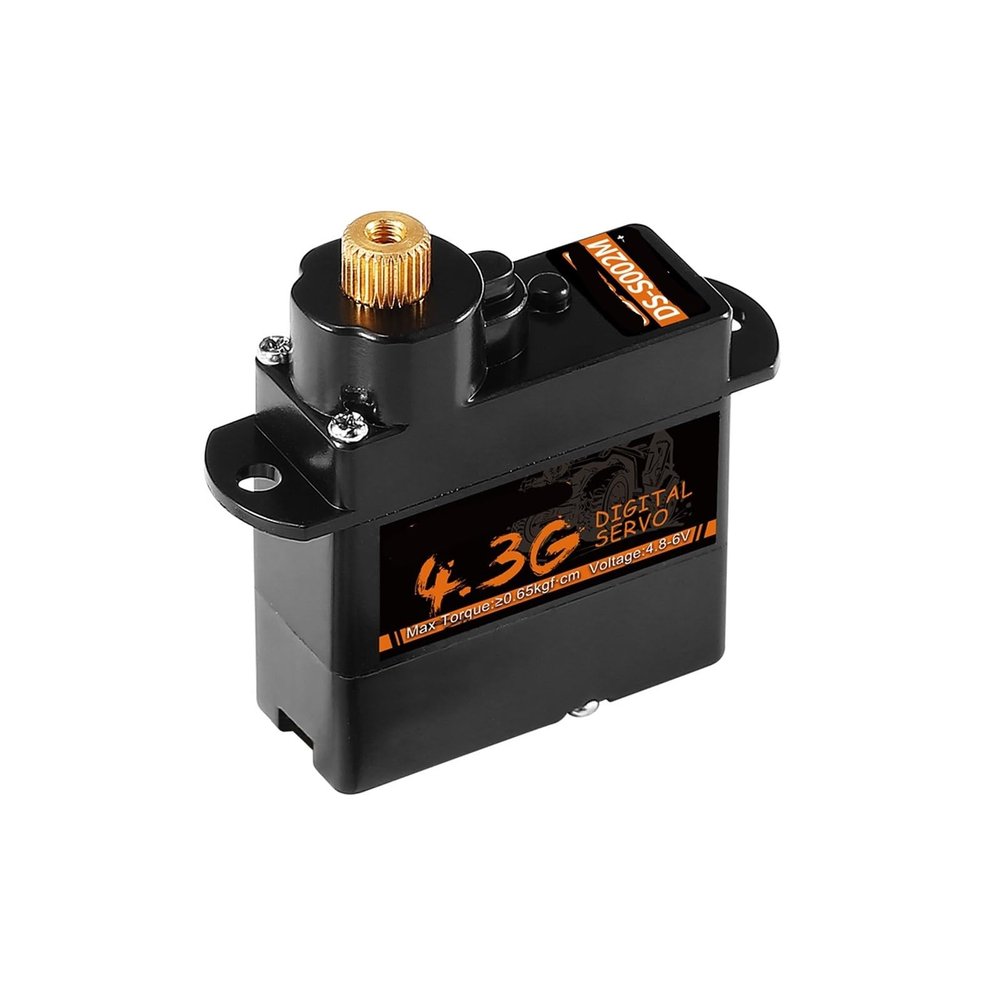

1/5/10/20PCS 4.3g Digital Servo Metal Gear Mini Servo(20PCS Metal 4.3g)

Description

• Servos

Servos
Specification:
Product Name: S002
Quantity: 1/5/10/20 pieces
Working voltage: 3.7~5.0V DC
Maximum torque: 3.7V0.60kgf.cm; 5.0V0.70kgf.cm
No-load speed: 3.7V0.12s/60; 5.0V0.10s/60
Stalled rotor current: 3.7V550mA; 5.0V650mA
Current consumption* (no load): 3.7V 80mA; 5.0V100mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 2 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 4.3 g
Dimensions: 27.48.522.3mm
Connector cable length: JR 2005mm (not included)
Package Included:
1/5/10/20pcs* 4.3G digital servos
1/5/10/20 pcs* Servo Arm Accessories
S002M 4.3g Metal Gear Servo:
Specification:
Product Name: S002M
Quantity: 1/5/10/20 pieces
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V0.58kgf.cm; 6.0V0.65kgf.cm
No-load speed: 4.8V0.15s/60; 6.0V0.12s/60
Stalled rotor current: 4.8V500mA; 6.0V550mA
Current consumption* (no load): 4.8V 80mA; 6.0V90mA
Maximum action travel angle: 18010(500~2500s)
Dead zone width: 4 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: metal gear
Weight: 5.8 g
Dimensions: 27.48.522.3mm
Connector cable length: JR 2005mm (not included)
Package Included:
1/5/10/20pcs* 4.3G digital servos
1/5/10/20 pcs* Servo Arm Accessories
