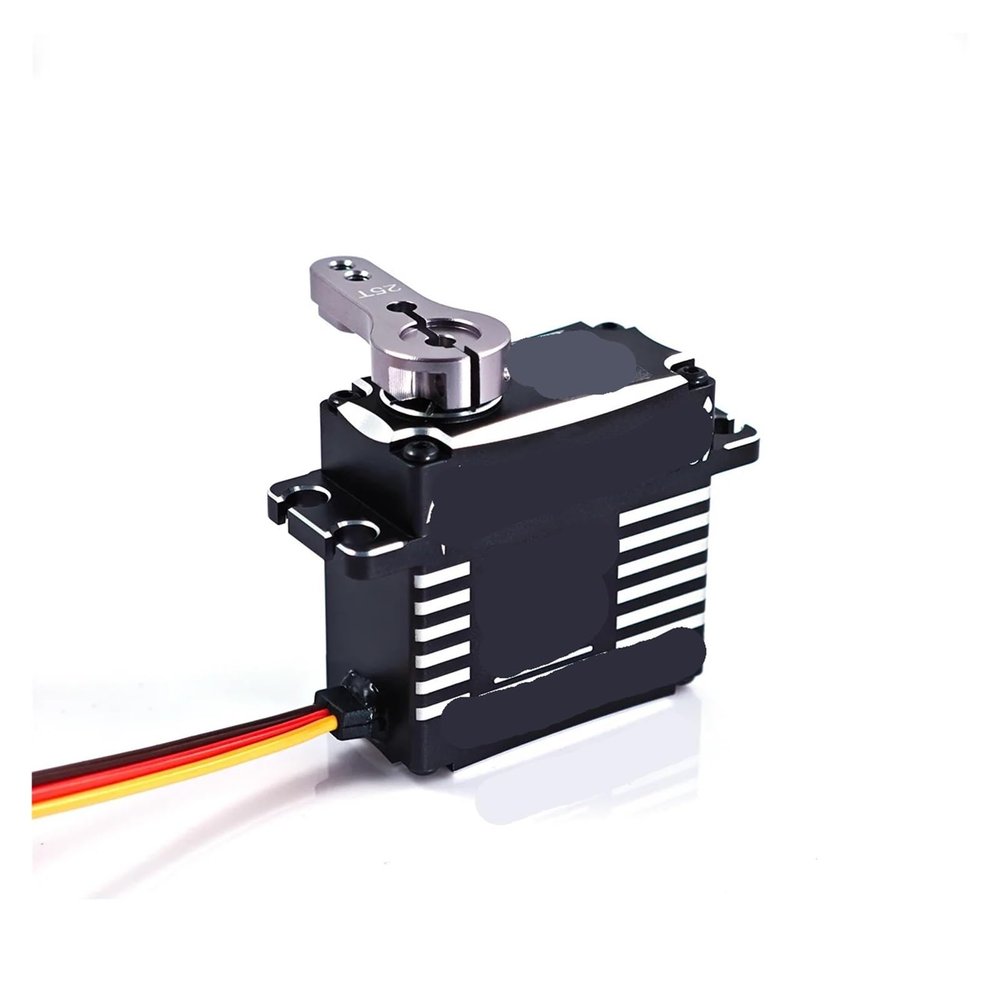

15KG IP67 Waterproof Full Metal 180/270/360 Degree high Torque Digital Steel Gear(270 Degree)

Description

• Servos

Servos
Model: DCS15
Ball bearing: 2BB

Motor type: DC motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dead band width: 2 microseconds
Gear material: metal gear
Case material: Aluminum case
Operating voltage range: 4.8V~8.4V
Operating temperature range: -20C to +60C
180/270 servo: control angle
360 servo: continuous rotation
Direction: Clockwise/Pulse travel 500-2500 seconds
Control system: PWM control (center point 1500usec)
Number of cycles: >1 million times without load
Operating stroke: 601
Limit angle: 180 270 3601
Dimensions: 40x20x40.5mm
Weight: 78g
Static torque:
0.13 sec/60, 12 kg-cm-@5.0V;
0.12 sec/60, 14 kg-cm-@6.0V
0.11 sec/60, 18 kg-cm-@7.4V
Connector cable length: 300MM
