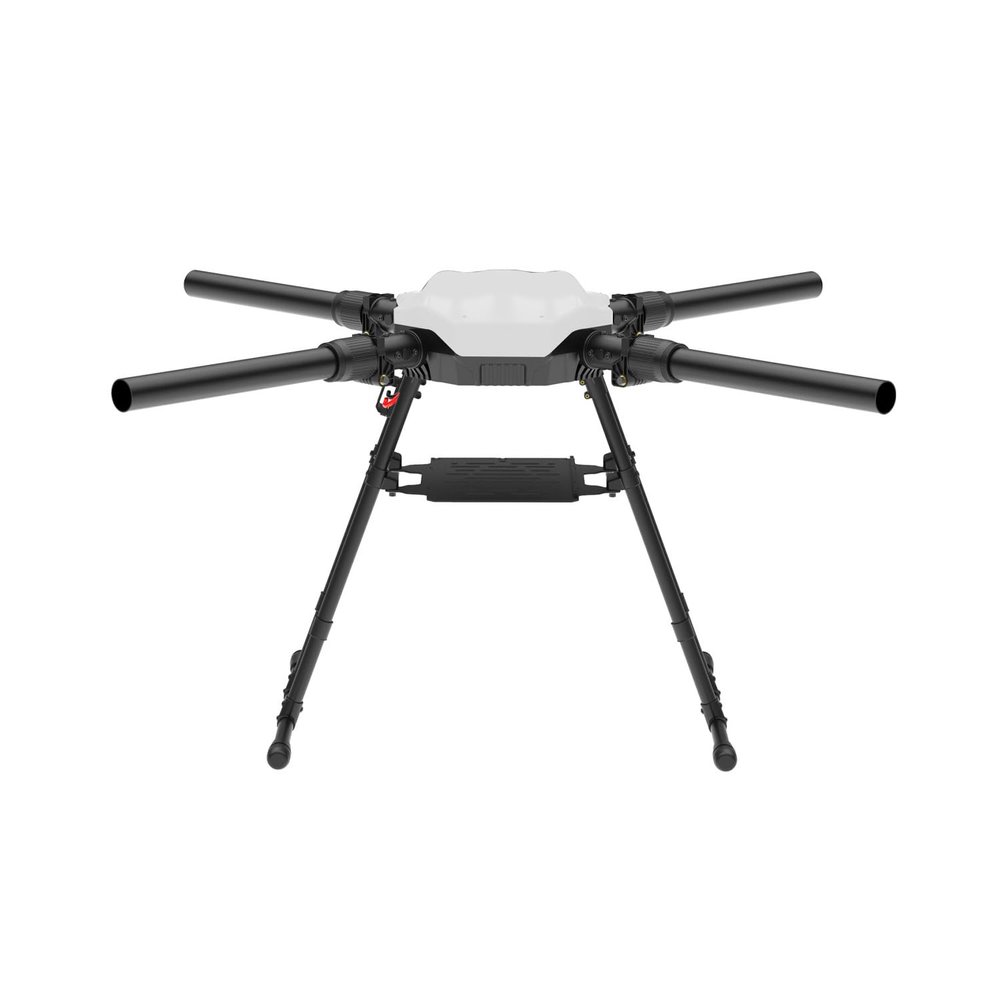

15KG payload Training Quadcopter Drone UAV Frame With Hobbywing X9 Power System (Frame)

Description

• THEPERFECT POWERTRAIN The power system is smoother and improves the compatibility of the flight controller(can be used with more excellent flight controllers). The overall stability andreliability of the aircraft has increased with an improved flight effect. LEDlight color adjustment function remove the lampshade and uses the DlP switchto adjust the LED light color.Smarter, more compatible & the perfect powertrain
• MULTIPLE PROTECTION FUNGTIONS The power system is equipped with several protection functions such as:Power-on sef-test, Power-onvoltage abnormal protection, Current protection and Stall protection.it is able to output an operating
• status data to the flight controller in real time including; input throttle amount, responsethrottle volume motor speed,bus voltage, bus current, phase current, capacitor temperature and MOSFET temperature,.etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. lt improves the overall system reliability. Note: Using the Hobbywing DataLink data acquisition memory (Note: need to be purchased separately)can simultaneously collect the real-time operation dataof the 8-channel power system, and pass it to theflight controller through the bus interface toform a closed-loop control system.
• ALL-WEATHER APPLIGATION The is equipped with an overall waterproofing protection of lPX6 rating.It guarantees excellent waterproofing and dustproofing protection.The is anti-corrosive and is fully sealedto cope with harsh environmentand climates around the world.
• TUBE-ON-ONESTRUGTURAL DESIGN The is three-dimensional and designed with an integrated motor and ESC as one.The installation of the lightweight structure is convenient and can be matched withthe circular carbon fiber tube(40mm).Optionally, it can be used with 34.7 propellersor 3411 propellers or 36190 propellers.

Technical Parameters
Max Thrust (46V):23kg
Recommended Battery:12-14S
Recommended Takeoff Weight:7-11kg
Total Weight
Powertrain Arm Tube 0uter Diameter: 40/45mm
Operating Temperature:-20-50
Ingress Protection:IPX6
Motor
Stator Size:9616
KV:110 rpm/V
Motor Size: 104
Propeller:
34*11inch
Frame Specification:
Size:1100*1100*600mm
Wheelbase:1400mm
Load capacity: 15KG
Maximum takeoff weight: 32.5KG
