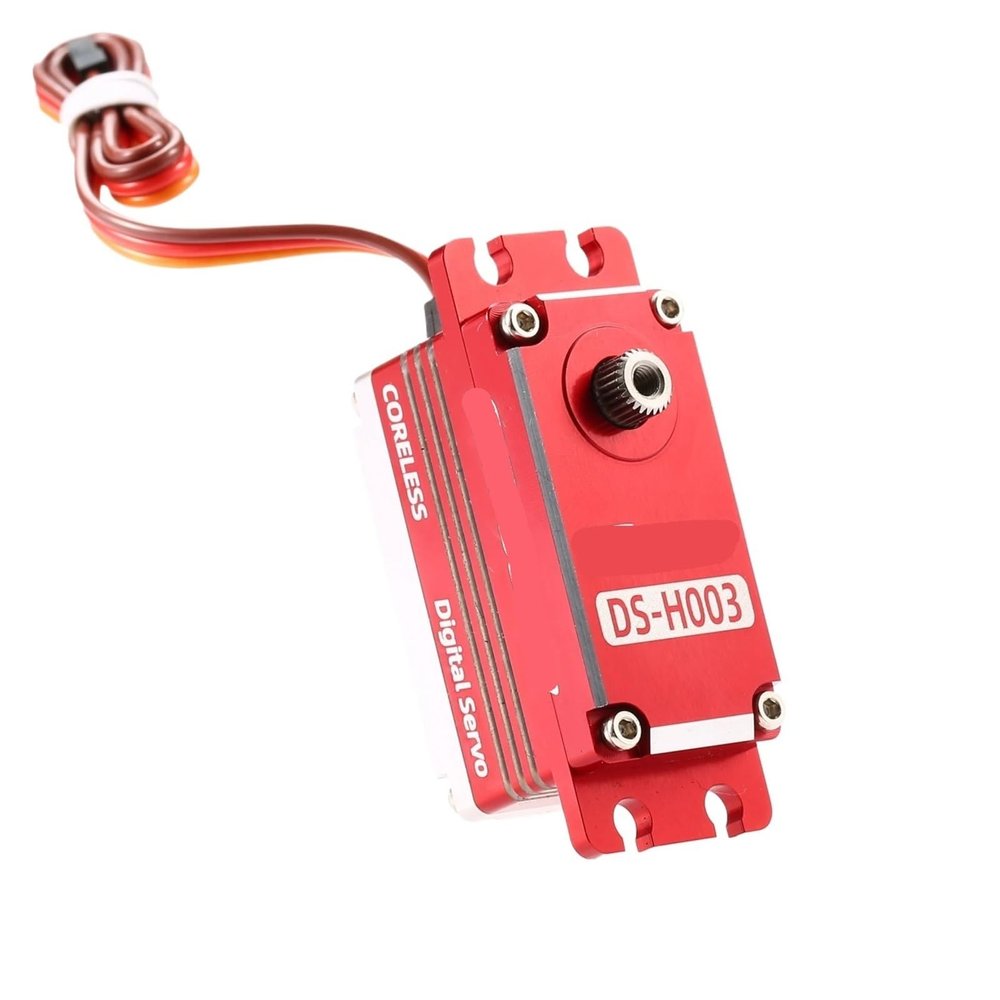

16KG/17KG Coreless/Brushless Short Body Servo Waterproof Digital Metal Housing Gear Motor(16KG Coreless Servo)

Description

• Servo Gears

Servo Gears
Specification:
16KG Red
Product Name: DS-H003
Quantity: 1 piece
Working voltage: 6.0~7.4V DC
Standby current: 15 mA
Current consumption* (no load): 6.0V 230mA; 7.4V 240mA
Stall current: 6.0V 3.2A; 7.4V4.0A
Maximum torque: 6.0V13kgf.cm ; 7.4V16kgf.cm
No-load speed: 6.0V0.09s/60; 7.4V0.08s/60
Rotation direction: (2000us1000us)
Pulse width range: 500~2500 us
Neutral position: 1500
Operating travel angle: 9010 (1000~2000 us)
Maximum operating travel angle: 18010(500~2500us)
Remote control angle: about 90 degrees
Mechanical limit angle: 360
Walking angle deviation 5
Centering deviation: 1
Rear clearance*: 1
Dead zone width: 4 us
Operating temperature range: -10~+50
Storage temperature range: -20~+60
Working humidity range: 90%RH
Storage humidity range: 90%RH
Weight: 580.5g
Case material: Metal
Gear set material: metal gear
Motor type: Coreless motor
Speaker gear spline: 25T/5.9mm
Communication interface: PWM
Dimensions: 49.520.525mm
Cable length: 2.54 3505mm
17KG Black
Product name: DSpower DS-B011
Quantity: 1 piece
Working voltage: 6.0~7.4V DC
Standby current: 25 mA
Current consumption* (no load): 6.0V 100mA; 7.4V120mA
Stall current: 6.0V 3.2A; 7.4V 4.1A
Maximum torque: 6.0V13.5kgf.cm ; 7.4V17kgf.cm
No-load speed: 6.0V0.08s/60; 7.4V0.07s/60
Rotation direction: (2000us1000us)
Pulse width range: 500~2500 us
Neutral position: 1500
Operating travel angle: 9010 (1000~2000 us)
Maximum operating travel angle: 18010(500~2500us)
Remote control angle: about 90 degrees
Mechanical limit angle: 360
Walking angle deviation 5
Centering deviation: 1
Rear clearance*: 1
Dead zone width: 4 us
Operating temperature range: -10~+50
Storage temperature range: -20~+60
Working humidity range: 90%RH
Storage humidity range: 90%RH
Weight: 580.5g
Case material: Metal
Gear set material: metal gear
Motor type: brushless motor
Speaker gear spline: 25T/5.9mm
Communication interface: PWM
Dimensions: 49.520.525mm
Cable length: 2.54 350MM5mm
