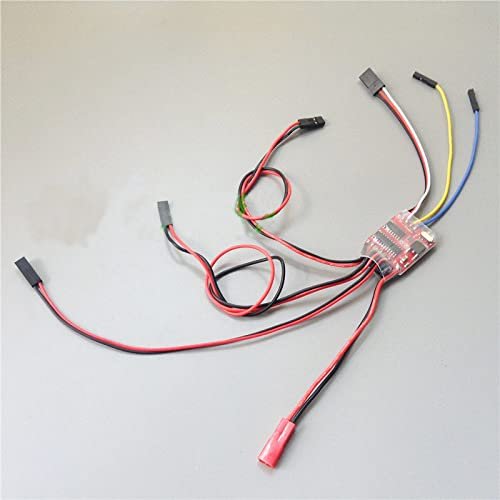

1.8A 3CH Dual-Way Brushed ESC 5V 1.5A BEC Mix/Independent Control for 35:1 Model Tank Turret Rotation Electronic Controller

Description

• 1.8A 3CH Dual-way Brushed ESC 5V 1.5A BEC Mix/Independent Control for 35:1 Model Tank Turret Rotation Electronic Controller

1.8A 3CH Dual-way Brushed ESC 5V 1.5A BEC Mix/Independent Control for 35:1 Model Tank Turret Rotation Electronic Controller

Specification:
- This product is an upgraded version of "2ch two-way ESC", the function of 1ch and 2ch is the same, add an independent 2ch.
- Voltage:6v-10v

- 1 and 2 mixed control modes (factory default) (both: throttle / steering mode): 2ch or 3ch (recommended 2ch, because 2ch automatically return to the center) to control the throttle, 1ch (or 4 ch) to control the speed difference , The proportion of the throttle steering channel is 100%, throttle priority.

- Independent mode: 1, 2, 3ch are independently controlled, and the motor output is 100% when the throttle is 100%. Equivalent to three independent ESCs.

- 1ch or 2ch: single way long-distance running 1.8A, peak 3.5A
- 3ch, long-distance running 2A, peak 3.5A

- The fixed position of the remote controller is PWM 1500us (+50 -50). The minimum stroke is 1000-1100 and the maximum is 1900-2000.

- Power-up prompt (connect the battery, the motor will beep once to prompt power-up)

- Start with midpoint (1 channel of ESC is near the midpoint, you will hear two beeps of the motor, ESC start, up-mix mode, down-mode independent mode)

- With out-of-control protection (loss of signal (signal line broken during accident), the motor stops, for safety, please re-insert the battery (for example, you plug in the signal line, but the throttle is at a high position, may hit the hand)
(Longer than 970us, higher than 2200us are considered as signal loss, ESC lock)

- The ESC has certain overload and overheat protection

- BEC:output 5v 1.5A

Package include:
1pcs x ESC
