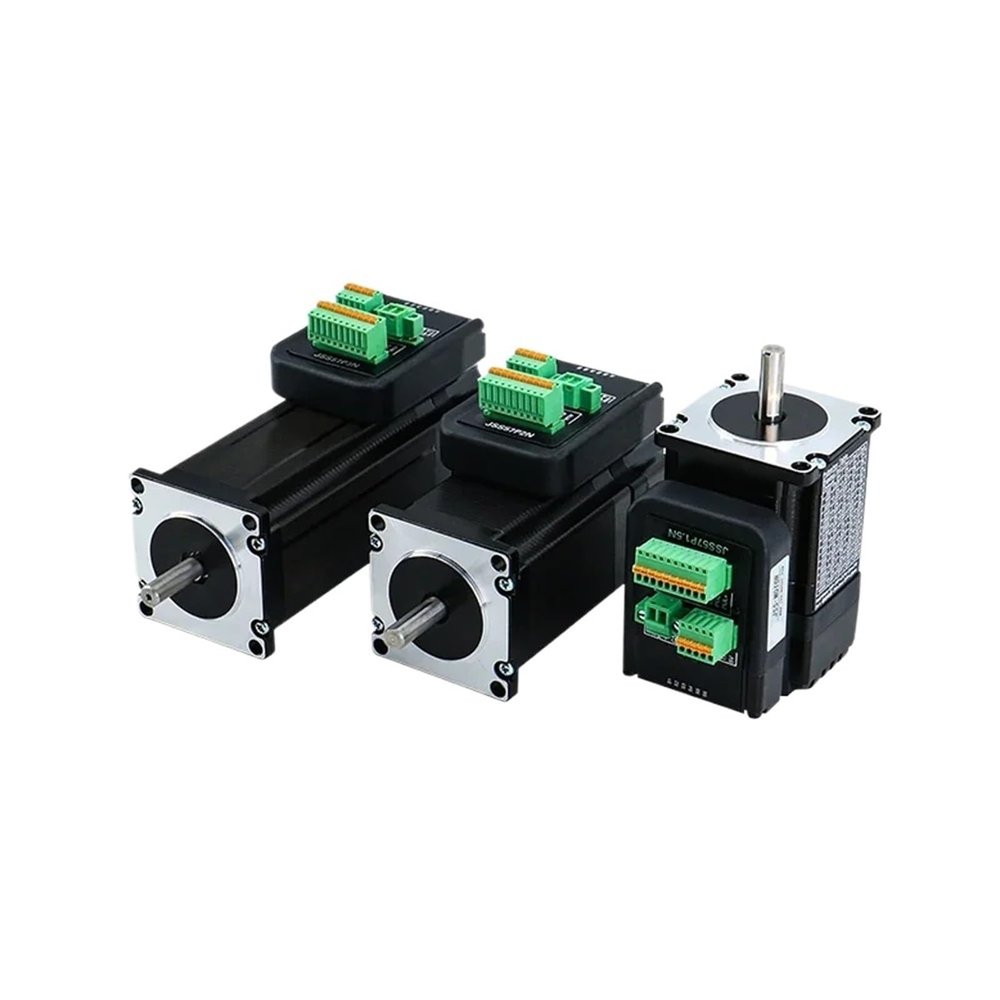

1pc 1.5Nm 2.0Nm 3Nm Prevent Out-of-Step 23 Closed Loop Stepper Motor Integrated Digital Hybrid Servo System 4.2A 48v 32-bit DSP(3N.m)

Description

• Motors
• 1pc 1.5Nm 2.0Nm 3Nm Prevent Out-of-step 23 Closed Loop Stepper Motor Integrated Digital Hybrid Servo System 4.2A 48v 32-bit DSP

Motors
Product introduction:
JSS57 is a motor-driven integrated hybrid servo drive system with communication function. Using a generation of 32-bit DSP control technology and closed-loop control technology, it can prevent out-of-step and ensure the accuracy of the product;High-speed attenuation is much lower than traditional open-loop drive, which can greatly improve the high-speed performance and ofstepper motor. Load-based current control technology can effectively reduce motor temperature rise and extend motor life. Built-in position and alarm output Signal, convenient for monitoring and control of the host computer;The position error alarm function ensuresthe safe operation of the processing equipment. It is an ideal upgrade for traditional open-loop stepper drives and can replace some traditional AC servo systems at a of only 50% of the AC servo system
Product list:
1 x JSS57P1.5N / JSS57P2N / JSS57P3N
Product advantages:
Product parameters:
Product display:
==========
Hign-concerned Chemical : None
Current / Phase : 1.2A
Holding : 1.5N.m /2N.m /3N.m
Step Angle(degrees) : 1.8
Phase : 2
Model Number : JSS57P1.5N/JSS57P2N /JSS57P3N
Type : HYBRID
Voltage : 24-48V Recommend 36V
Current : peak 6A
Motor Length : 56mm/76mm/112mm
Total Length : 87mm/107mm/143mm
Inductance : 1.2mh/1.8mh/4mh
Holding : 12kg.cm/20kg.cm/30kg.cm
Weight : 0.95kg/1.35kg/1.95kg
