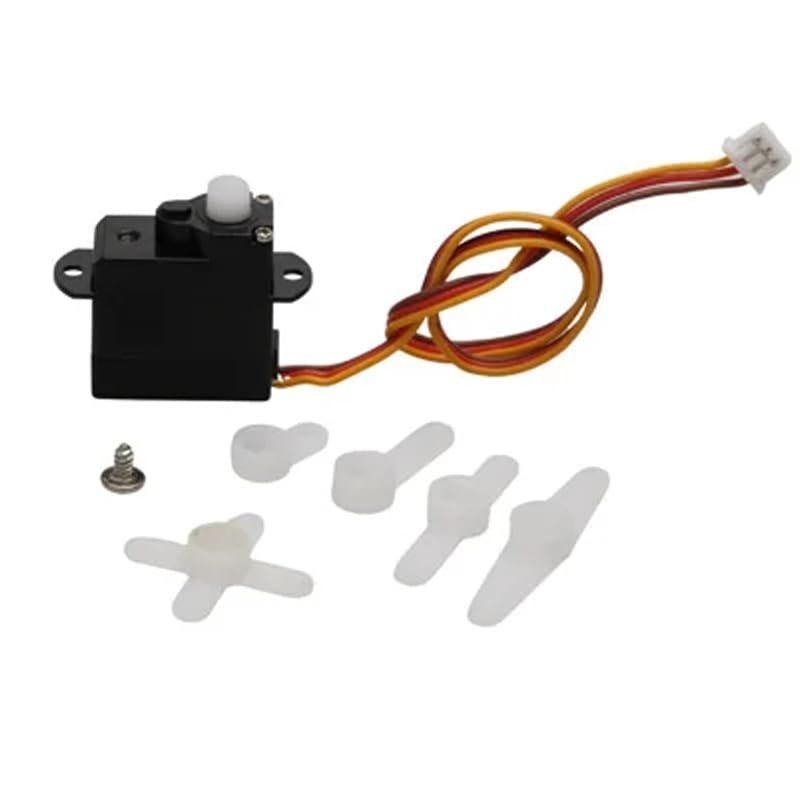

1PCS 3.7V/4.2V/5V Digital Steering Gear with JST-1.25mm/DuPong Plug 2g 90 Mini Servo for RC Drone Camera Fixed Wing Airplane(JST-1.25mm 5V)

Description

1PCS 3.7V/4.2V/5V Digital Steering Gear with JST-1.25mm/DuPong Plug 2g 90 Mini Servo for RC Drone Camera Fixed Wing Airplane
Specification:
- Item name: digital servo
- Plug: 1.25mm mini white 3P JST plug/Black DuPong JR plug
- Suitable for RC mini fixed wing airplane
Apply Evironmental Condition:
- Storage temperature range: -20~60
- Operating temperature range: -10~50
- Operating voltage range: 4.2V
Standard Test Environmental:
- Every test under normal temperature and humidity(temperature: 255, relative humidity: 6510%), and characteristics are determined under the condition of standard test.
Electrical Specification (Function of the Performance):
- Operating speed (at no load): 0.050.01 sec/60
- Running current (at no load): 4020mA (When defining the average value for this project, the servor runs at no load.)
- Stall torque (at locked): 0.120.01kg.cm
- Stall current (at locked): 31030mA
- Idle current (at stopped): 31mA
- Temperature drift (at 25): 1
Mechanical Specification:
- limited angle: 18010
- Weight: 2.20.2g
- Connector wire gauge: #32 PVC
- Connector wire length: 1505mm
- Excessive play: 2
Note: size is manual measurement, there are exist errors
Package include:
1pcs x servo
==========
Wheelbase : Screws
Size : 16.3x8.2x22.5mm
Technical parameters : value 2
Model Number : 2g DIY Mini Servo
For Vehicle Type : Airplanes
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Remote Control Peripherals/Devices : Servos
Upgrade Parts/Accessories : Servo
RC Parts & Accs : Servos
Material : Composite Material
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys
Certification : CE
