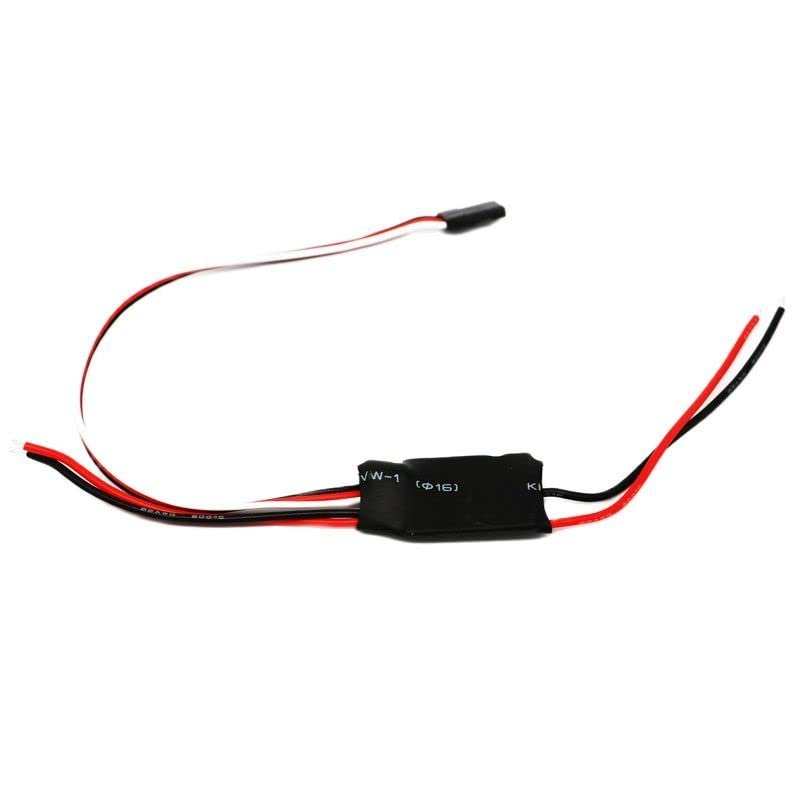

1PCs 5A 10A 20A 30A O ne Way DC Brushed ESC 12V 24V Brushed Speed Controller 2-3S 2-6S Lipo Parts for RC Micro Drone Aircraft FPV (Color : 24V 2-6S 30A no BEC, Size : 1)

Description

• High-quality materials, environmentally friendly and durable
• Damaged parts can be completely replaced
• Please carefully check the model and size before purchasing to ensure that it is the product you need
• Wishing you a pleasant mood

- Without BEC Version ONLY have balck and white wires.
- 12V ESC has BEC output and no BEC output 2 kinds,24V ESC without BEC output, (no BEC output is red line in signal line has no 5V power output)
Specification:
12V (2-3S) - Without BEC
24V(2-6S) - Without BEC
12V - With BEC - 5V1A
2-6S - With BEC - 5V3A
Parameters:
1. Continuous/Peak current:
- 5A/8A
- 10A/16A
- 20A/32A
- 30A/38A
2. the number of battery sections: 2-3S(batteries not includes)
3.BEC output
- No BEC
- with BEC output: 5V 1A / 5V 3A
4.Size
- Power wire length: 60mm
- Output line length: 75mm
- Signal line: 180mm
- Size: 21x43x7mm
- Weight: (Manual measurement, there exist errors)
5A - 7.5g ,
10A - 10g ,
20A - 11.5g ,
30A - 15g .
Product Functions:
1. Safe power-on function: When the power is turned on, the motor will not start immediately regardless of the throttle stick in any position to avoid personal injury,
2. Throttle stroke calibration function: adapt to different remote control oil
The difference in door stroke improves the linearity of the throttle response, and has a smooth, delicate speed control feel and first-class speed regulation linearity
The first use of ESC does not require identification of the maximum and minimum travel of the remote control (if identification is required)
The itinerary) method is as follows:
1. Electric adjustment to the motor
2. electric control line connected to the receiver
3. open the remote control and push the throttle to the highest point
4. plug the ESC into the battery
5. Look at the red light of the LED
6. The red light flashes and flashes (the highest point of the throttle is confirmed)
7. after pulling the throttle stick to the lowest point
8.Look at the LED red light
9. ( The red light flashes and flashes)
10. OK
LED light changes with throttle horsepower.
Package includes:
