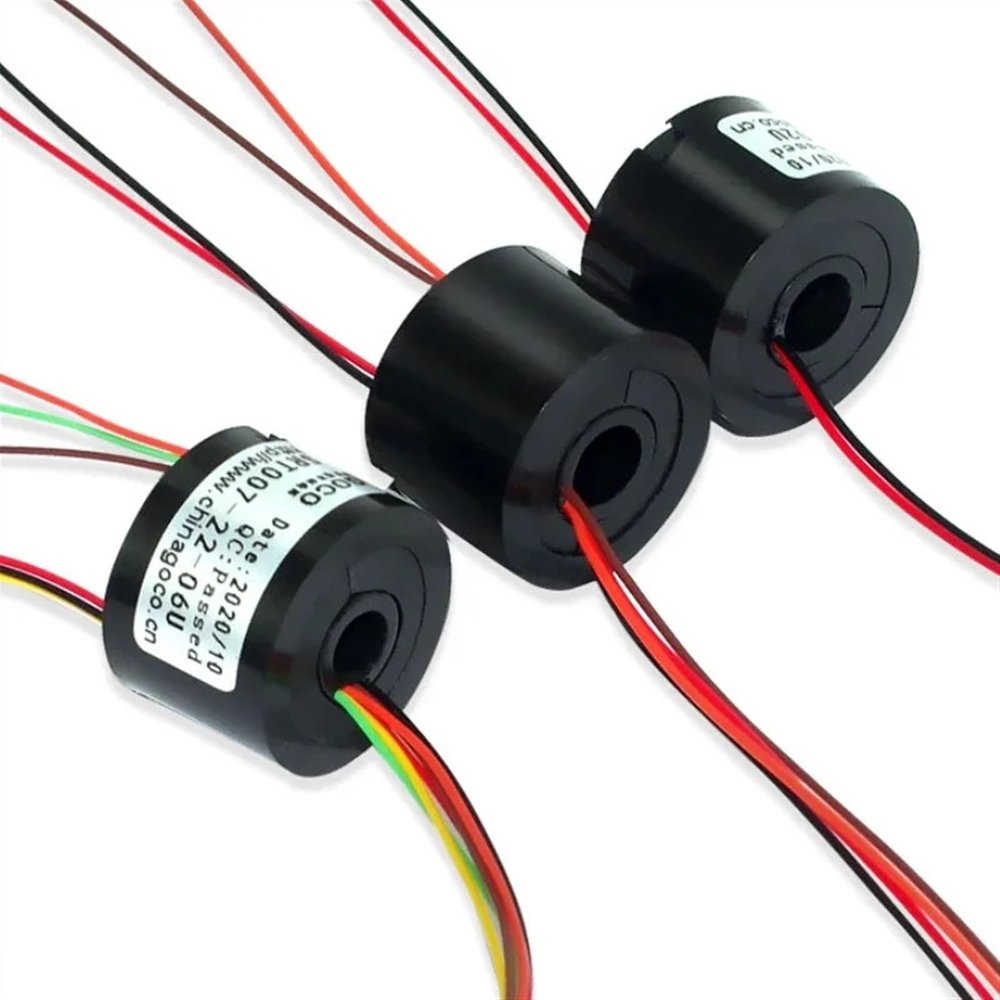

1PCS hole Dia.7mm / 5mm 220v 2A 2/4/6 channels SRT007-22-04U Through-hole electric slip ring Conductive ring Hollow shaft(SRT007-22-06U)

Description

• Rotors
• 1PCS hole Dia.7mm / 5mm 220v 2A 2/4/6 channels SRT007-22-04U Through-hole electric slip ring Conductive ring Hollow shaft

Rotors
2/4/6 Channels/ Rings slipring with hole Dia.7mm 1.5A electric Slip Ring Hollow shaft
Specification:
- Rotating speed: 250rpm/min
- Outer diameter: 22mm
- Hole Dia.:7mm
- : 2/4/6
- Suitable for camera gimbal, robot,Automation Equipment
- Rated voltage:220VAC
- Current Rating:2A /Channel
- Working temperature:-40C~+80C
- Contact Material: Gold/Gold
- Wire specification:AWG28 Silver
- Cable length:Standard 300mm on each side
- Compressive strength:500V@50Hz between two channels
- Insulation resistance:1000mOhm /500VDC
- Protection class:IP53
- Housing material:Engineering plastics
- Working life:500 million Rotation (depending on the operating environment and speed)
Pack included:
x 1 Slip ring (2/4/6 Channels for option)
