Description
- ESC Brushless BLHeli-S Electronic Speed Controller, Multi Axis Optimization, Fast Response, High Power, Supports FPV Drones, Multi Rotors, Fixed Wings, Helicopters, Four Axis Aircraft
- Using BLHeli_S firmware for easy upgrade or flash via ESC signal cable; The throttle signal line adopts twisted pair to effectively reduce the interference generated during signal transmission, making its flight more stable and effective. It is easy to upgrade or flash through the ESC signal line
- Applicable battery cell count: 2-6S; Using original components to ensure high-quality current capability of ESC.Supports muted mode and DShot, PWM throttling signal mode, Oneshot 125, Oneshot 42, and Multispot.

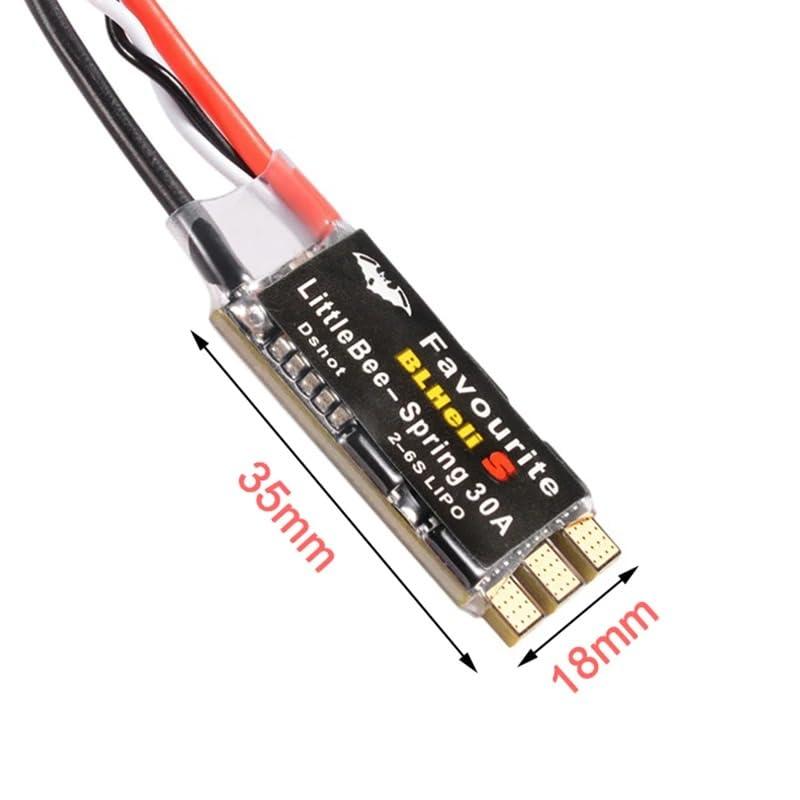

Item Name: 20A 30A Electronic Speed Controller Favorite BLHeli-S Brushless ESC
Product Parameters:
20A:
Input: 2-4 S Lipo
BEC output: None
Continue current: 20A
Burst current: 25 to 10 S
Size: 23x12x4mm
Weight: 4g (include cable)
Compatible with: Little-Bee 20A ESC
30A:
Continuous current: 30A
Instantaneous current (10 seconds): 35A
BEC Output: None
Input voltage: 2-6S Lipo
Program: BLHeli-S
Features:
Switching speed is very fast, it has dedicated driver chip
Supports muted mode and DShotSupport Oneshot125, Oneshot42, Multshot
Main IC: Silabs F396, MCU run 48MHz
Very fast switch
BLHeli S bootloader and Firmware
Package Included:
20A Favorite BLHeli-S ESC x 1 or
20A Favorite BLHeli-S ESC x 4 or
30A Favorite BLHeli-S ESC x 1 or
30A Favorite BLHeli-S ESC x 4
