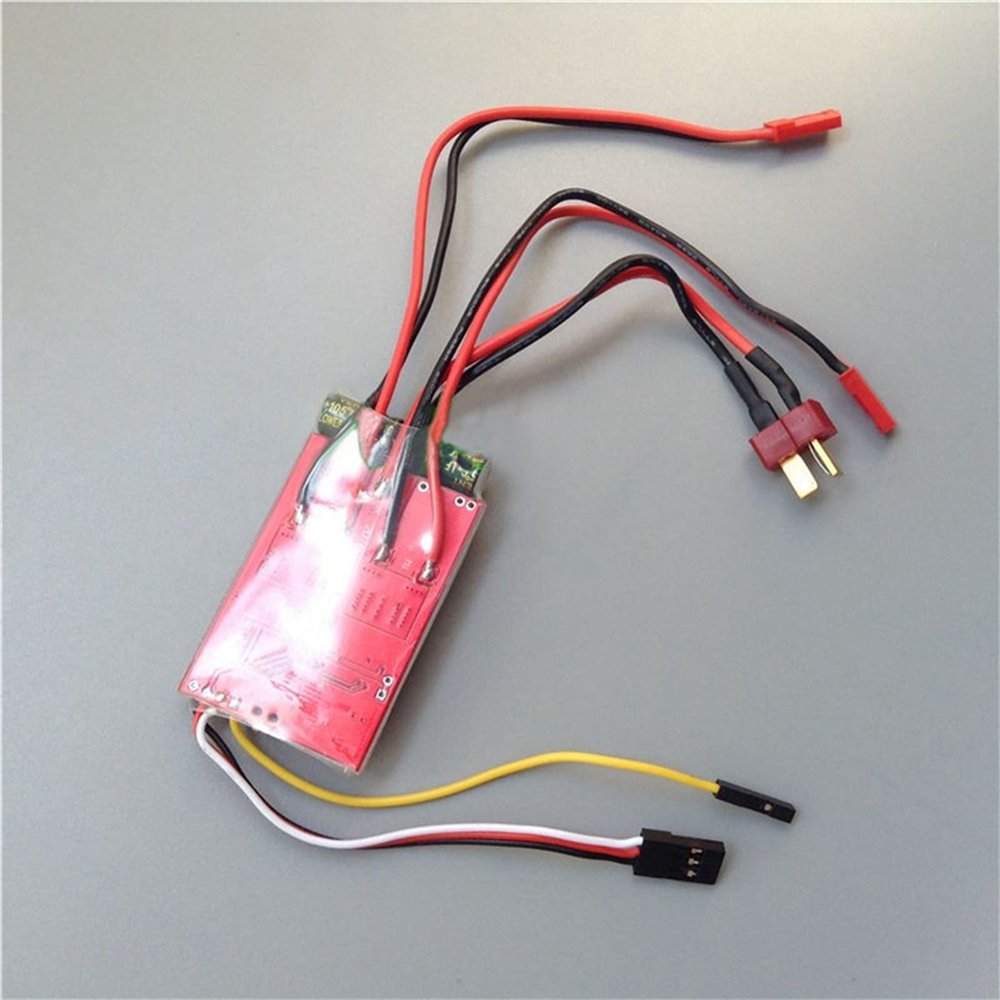

20A X 2 Bidirectional Brushed ESC Dual Way ESC Electronic Regulator for RC DIY Car/Boats Parts with 2 380 Motor(1 PC x ESC)

Description

• 3S Can use 380 390 high current motor, but cannot use 550 540 motor
• The remote has a fixed position of 1500us (+ 50-50), and the range run is 1000-1100 and the highest is 1900-2000.
• Start with the middle position (on the power-on beeps), once at the median point 1500, go "beep" twice, the CES starts)
• With out of control protection (missing signal (in the crash, the signal line is broken), for safety, motor protection, need the throttle, re-unlock. (Operates below 970us, above 2200us are considered signal loss, ESC lock)
• Outlet spout 5 v max 3A to meet your needs to receive, the steering gear feeding adjust without overheating protection, pay for heat dissipation.

Descriptions:
ESC parameters:
Voltage: 6 v-12.8 v
Single current: 20A
Lithium battery: 2 S Can use 540 550 380 390 high current motor (including the following levels)
Board size: 50x33mm
The role of the aluminum foil is to suck the heat so that the air flowing is carried away, so it must be ventilated and the air flowing. The engine cannot be placed inside the van. it is recommended to open the vents. it is necessary to add heat to the fan, or use the thermal adhesive to attach the electrical to the metal case.
(Overheating, the weld cannot melt, the CES is broken, the model is out of control, especially for the model ship, it must be assured that the CES is not too hot .In the test, the temperature change can be monitored by touching the ESC at intervals of 10-20 seconds, and then travel.)
ESC 3 modes:
Mixing mode (both: gas / steering mode): 2 or 3 channels (2 recommended channels, 2 channels are automatically returned to the middle) to control the throttle, 1 channel (or 4 channels) to control the speed Difference director, gas ratio 100%, 100% steering ratio, turn to priority. Suitable for: tank (this mode, gun control can play tank), 4 car drive (can be installed APM)
Two-way independent: equivalent to two independent.
The bidirectional synchronization: In the mixed control mode, do not connect a single yellow line, for the output of the two-way motor is the same; this ESC is equipped with a remote control boat that uses a 380 differential mixing motor rotates and use a 2S-3S battery; this ESC is equipped with a remote-controlled vessel that uses a 550 engine to mix differential speed turns. To use a 2s battery, it is necessary to add water to the ESC to cool.
Dual Independent / Connected Demo Line Plug 2/3 Channel
The left and right levers each control a motor to be reversed (switching to the outside) mix mode / connection line demo plug 1/2 channel
Right control lever 2 front and rear motors
