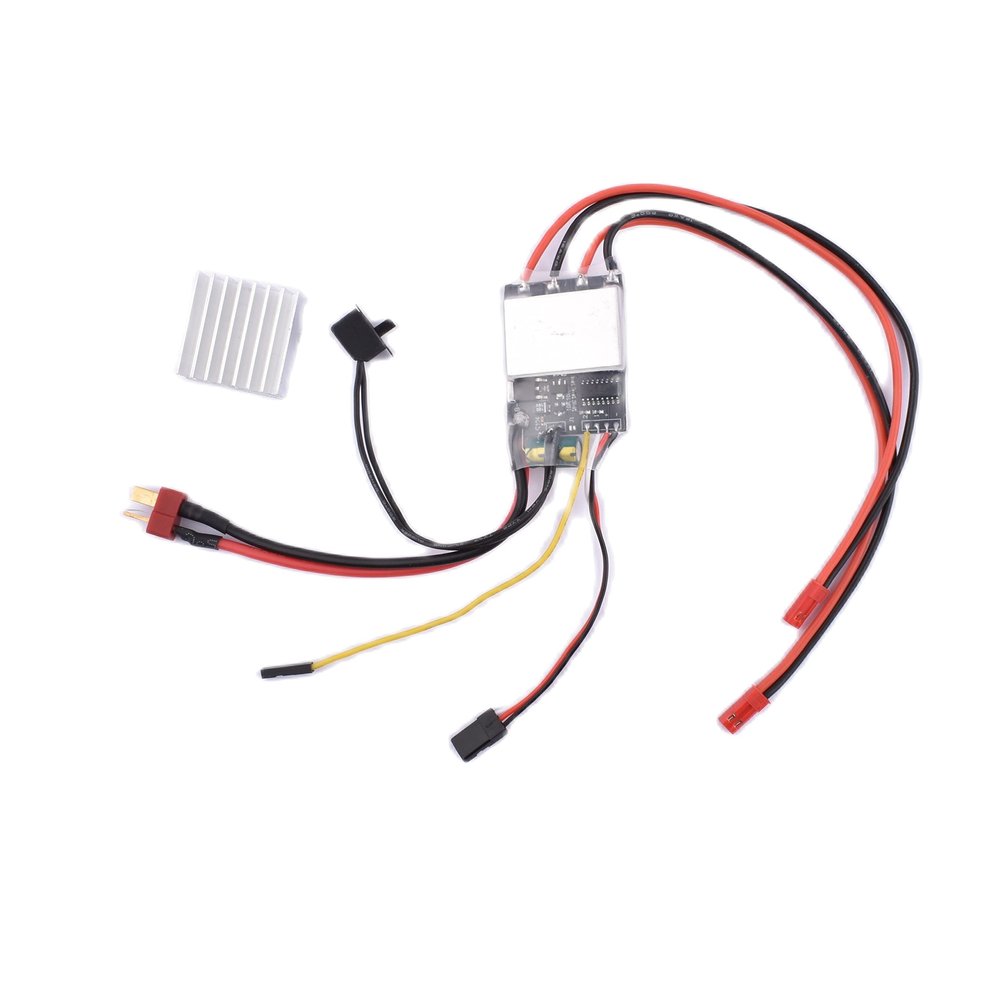

2-4S 2CH One Way Brushed ESC 20Ax2 Mixing Mode Electric Speed Controller with Overheating Protection f RC Boat 380/550/775 Motor

Description

• 2-4S 2CH One Way Brushed ESC 20Ax2 Mixing Mode Electric Speed Controller With Overheating Protection f RC Boat 380/550/775 Motor

2-4S 2CH One Way Brushed ESC 20Ax2 Mixing Mode Electric Speed Controller With Overheating Protection for RC Boat 380/550/775 Motor
ESC suitable for 380,550,775 motor differential boat, bait boat etc.
Parameter:
6-16v available 2-4s single 20A (electrically call 240A MOS tube, peak far more than 20A)
* Remote control signal pwm (1000-2000)) (1100-1900) automatic adaptation of the run
* Low throttle start to prevent unsafe safety of the high throttle motor. (Started below PWM 1150)
(Note that some of the throttles are reversed, such as Ledi, there are comments that the throttle should be adjusted 90% to unlock, that is, his throttle is reversed)
* With starter sound (The prompt sound is caused by high-frequency current vibration motor, the sound size varies depending on the motor; small motor may be slightly rotated by the current, no surprise)
* With out of control protection (lost signal (here the ESC signal line is broken), the motor stops)
* With overheat protection (above 90 degree ESC to stop output, restore output after cooling down; please use dual channel at the same time (only single channel, ESC is not heated, overheat protection may not take effect))
Bec output 5v max 3A
Size: 42x33mm Weight: 34g (including wire) Motor wire 18awg Length 20cm
note:
The small switch of the power supply is temporarily called off. That is to say, even if it is turned off, the ESC still consumes micro current, and it is not necessary to unplug the power battery for a long time.
The ESC is not waterproof and waterproof. It must be done by yourself. The paddle should be protected in the cage at all times to ensure absolute safety.
There are 2 modes:
1) Speed difference mixing mode (default)
Mixing = Throttle X 100% + Direction X 100% (This ratio is determined by multiple tests and feedback from the model)
If you open the 50% throttle and then turn to the left, the left motor will be reduced by 50% and the ri
