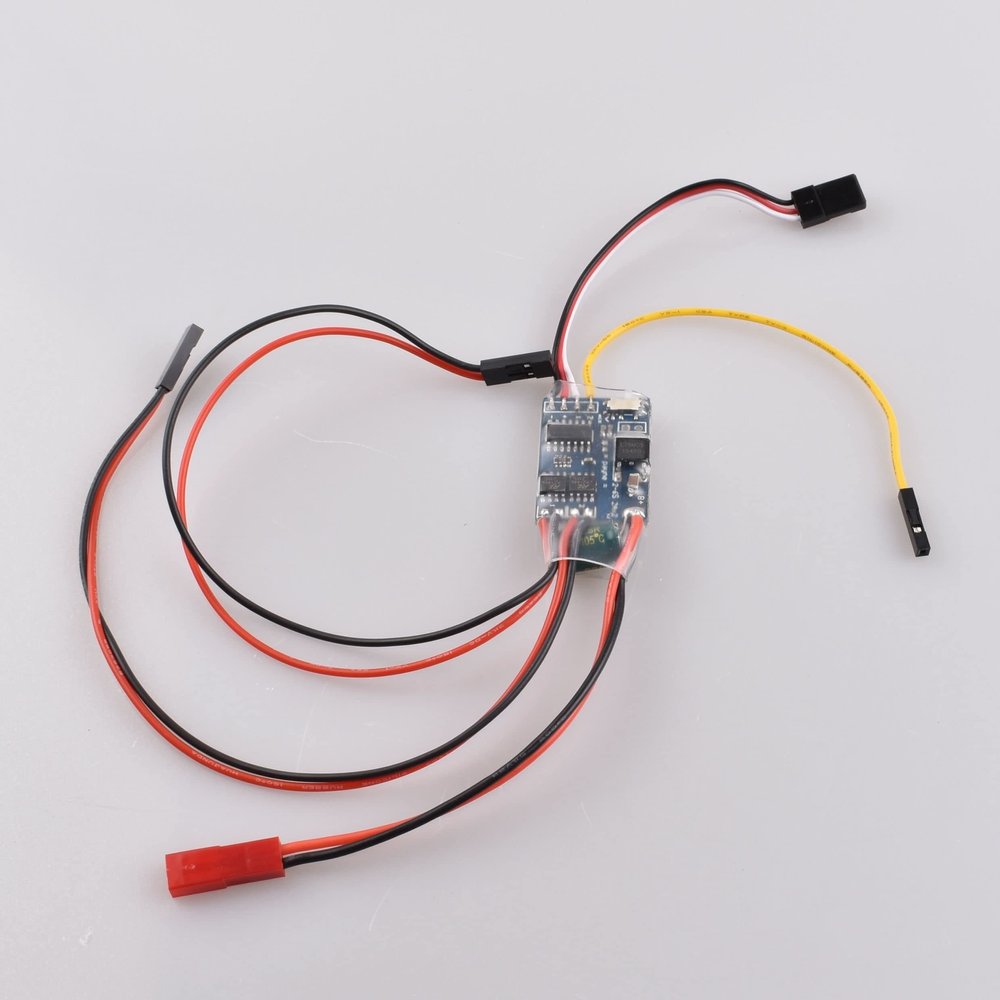

2S-6S 2Ax2 Dual Way Bidirectional Brushed ESC/ 24V Geared Motor 30x21mm for RC Car 370 520 Tracked Vehicle/Tank

Description

• 2S-6S 2Ax2 Dual Way Bidirectional Brushed ESC/ 24V Geared Motor 30x21mm for RC Car 370 520 Tracked Vehicle/Tank

2S-6S 2Ax2 Dual Way Bidirectional Brushed ESC/ 24V Geared Motor 30x21mm for RC Car 370 520 Tracked Vehicle/Tank
Suitable for 370,520 deceleration group, small current motor with rated current not exceeding 2A.
Specifications:
6v-25v 2A (2A per channel), peak 4A
The midpoint of the remote controller is fixed at PWM 1500us (+50 -50). The run length is automatically adjusted from the lowest 800-1100 and the highest 1900-2200. If it exceeds 800-2200, it is regarded as an illegal signal and the ESC is locked.
Power-on prompt (you will hear a beep from the motor to prompt power-on)
Start with the neutral point (the throttle channel is about 1500, you will hear the motor beep, the ESC will start)
With out-of-control protection (lost signal (in the accident, the signal line was disconnected)), for safety and motor protection, you need to return the throttle to the center and unlock again
Power-down protection: power supply voltage is lower than 4V, ESC restart protection (such as: high current discharge, poor performance battery voltage drop is too large, ESC protection, motor stops after protection, and battery voltage recovers after motor stops Back to the midpoint, you hear the motor unlock again)
Over-current protection (but repeated over-current during use, may also burn. Connect a high-current motor such as 540, burn at your own risk in seconds)
With overheating protection (130 degrees) (When running 2A, the aluminum heat sink will be hot, users need not pay attention)
Each group of motor wires is directly connected to the motor, do not confuse it, otherwise the ESC will be damaged
other:
bec output 5v 1.5A max
Board size: 30x21mm
If you use a high-voltage battery (more than 4S) or a high-current servo, the ESC linear voltage regulator (the two large components above the ESC mode switch) are very hot, please use ubec to power the servo independently.
Mixed control mode (default) (throttle
