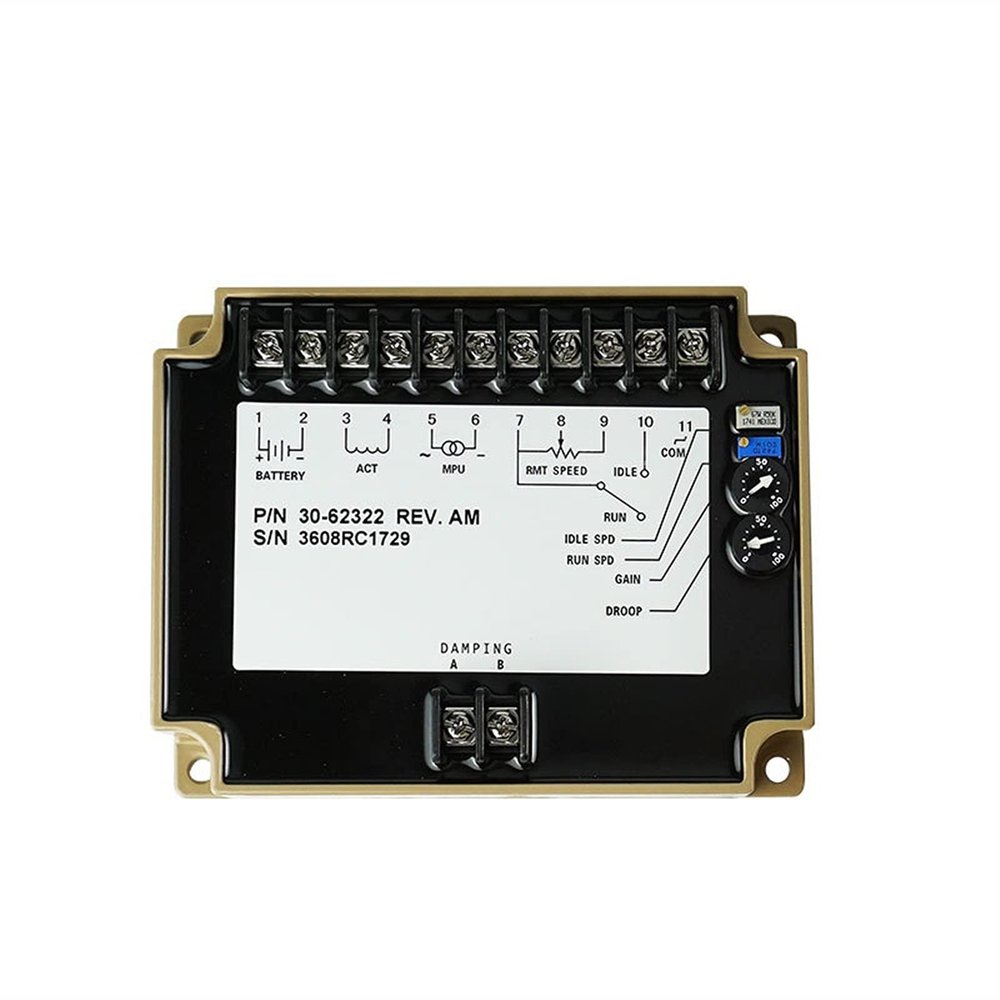

3062322 Speed Control Board Generator Accessories Slow Start Idle Speed Control ESC Board Electronic Governor

Description

• The speed control board is made of high-quality materials, flame-retardant, high-temperature resistant, long service life, and safe to use
• The speed governor is used in small generator sets, with excellent steady-state and dynamic control performance, and high cost performance
• Easy to install, with instructions, use immediately after installation, fast and convenient
• Imported electronic components, more stable performance, greatly improving the service life of the engine
• You can contact us at any time if you encounter problems during the purchase process, we will solve it for you in the first time

Specification:
<;0.25%
Speed Range1KHz ~ 6.5KHz
Thermal StabilityMax 0.7%
IDLE Regulation260 20Hz
DROOP RegulationMinimum 15Hz 6Hz/ 1 Amp
Maximum: 400Hz 75Hz/ 1 Amp
External Speed Regulation200Hz (with 1 K connected)
AUX Input Sensitivity148Hz / 1V., 10Hz
Impedance1M
Working Temp Range-40 ~ 85 C
Working Humidity RangeMaximum 95%
Stocking Temp-55 ~ 92 C
Shocking20-100HZ 500mm/Sec.
Voltage12 or 24V
Grounding PoleNegative pole
Power Supply40mA
Actuator Continuous Current:Minimum 1A, Maximum 4.5A
Signal2 ~ 120V RMS

Package List:
Speed Control Board x 1
