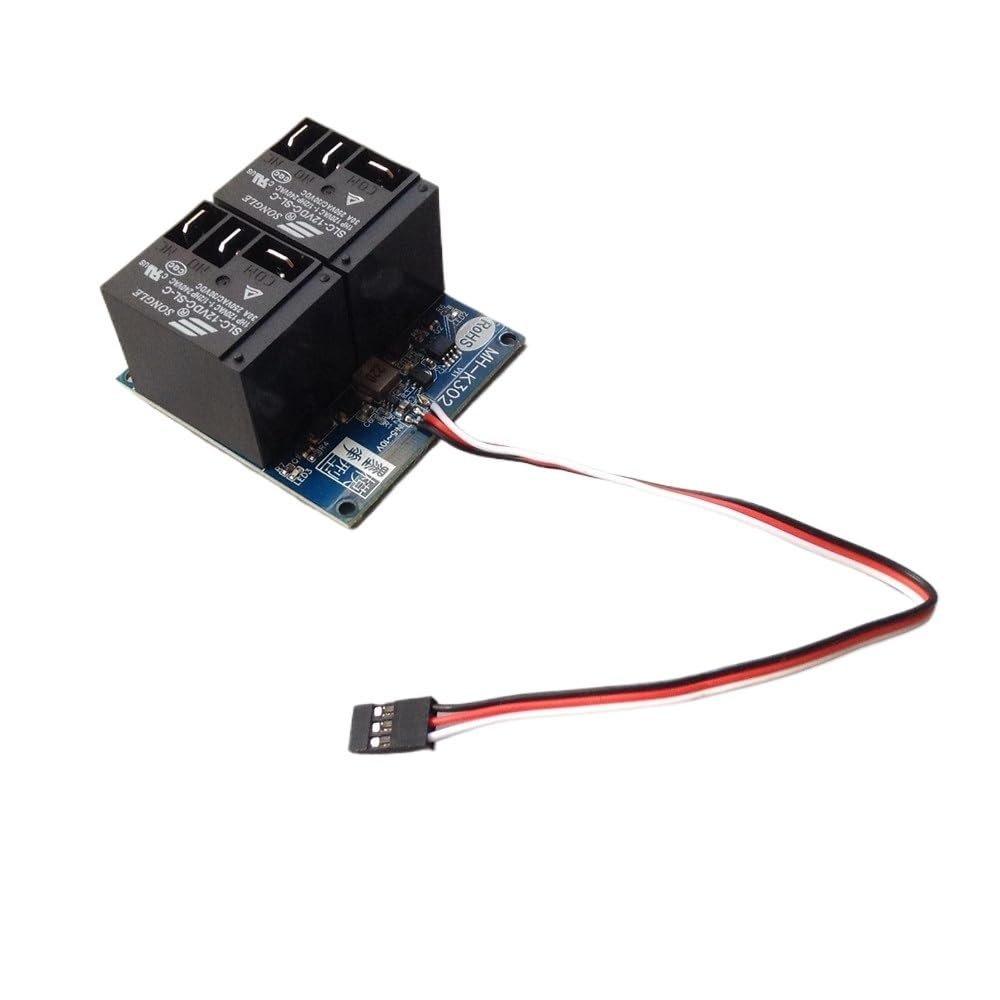

30A High Power Relay Switch for RC Models, Single/Dual Circuit Remote Control Module, Plug-and-Play Installation(Dual)

Description

• [High Load Capacity] Supports 30A/250VAC high current, can control 250W motor or lighting system, meeting the needs of high-power models.
• [Single channel/dual channel optional] Single channel is suitable for simple control, dual channel supports independent control of two devices, which is more flexible.
• [Plug and Play Design] No soldering terminals required, quick installation, compatible with mainstream remote control devices, saving installation time.
• [Applicable to multiple scenarios] Applicable to various scenarios such as rocket launch, smoke control, navigation light switch, model weapon system, etc.
• [Safety Isolation Design] The receiver power supply is completely isolated from the external load to ensure safe use and avoid equipment damage.

The wiring terminals are directly plugged into the relay, eliminating the need for soldering.

1-way servo signal input, controlling 2-way electronic switches
30V maximum controlled voltage
The controlled end supports 30A 250VAC/30VDC (can connect to 250w motor)
2-way output (only one relay can be activated at the same time)
Compatible with remote control devices of all brands without calibration
Three-stage switch channel/proportional channel control

Application
Remote control model rocket launch
Remote control model smoke control
Weapon system control like a real aircraft
Navigation light control for model aircraft
Control of various remote switch systems
COM public port
NO normal start
NC normally closed terminal

Single channel size: length 58mm width 27mm height 30mm weight: 35g
Dual-channel dimensions: length 58mm width 55mm height 30mm Weight: 70g

Receiver signal line 5v -10v voltage

Functional description
The remote switch can remotely control up to 2 electrical devices on the aircraft model through a switch channel on the remote controller.
This device does not require calibration and is accurately compatible with remote control devices of various brands.
This device is powered by the receiver and is completely isolated from the external power supply. The external power supply is only supplied to the controlled device.
Typical Applications
1. Connect
Plug the signal input cable into the receiver's three-stage switch channel or joystick channel that corresponds to the channel on the remote control.
Connect the control switch to the device
2. Trigger
(Take the throttle channel as an example) Move the throttle lever on the remote control to full throttle, and one relay will close (that is, the common terminal and the normally open terminal are connected, and the common terminal and the normally closed term
