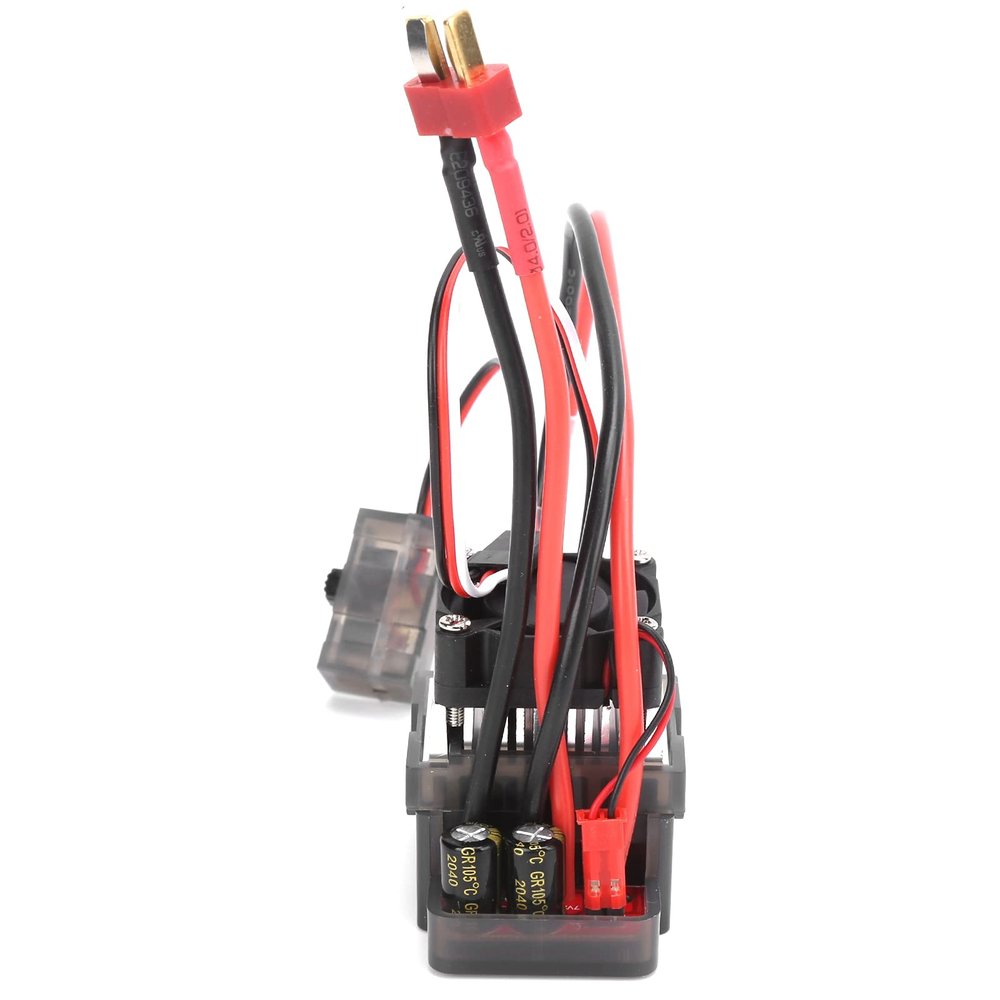

320A Two Way Brush ESC with Brake, Control, Low Voltage, Over Voltage, Find Center Position Automatically

Description

• Fine Craftsmanship: Two-way brushed esc designed with .
• Multiple Protections: Features control, low voltage, and overvoltage functions.
• Construction: Made of materials for long-lasting use.
• User-friendly: Easy to use, suitable for amateurs and professionals alike.
• Enhanced Safety: Automatically finds the center position with a heat sink for safer .

Spec:

Item Type: Two-Way Brush ESC
Material: Plastic + Aluminum Alloy + Electronic Components
Weight: Approx. 87g / 3.1oz
Model: 320 TD-005 ESC T Plug
Support Function: External Powerful ubec Function, Providing 5.6V Maximum 3A High Current, with Switch Function
UBEC Supports Voltage Input: 6--16.8V
ESC Forward Current: 600A, Backward Current: 320A
Voltage Range: Support 6-16.8V Voltage, With Backup Power BEC 2A
Battery Support: Ni-MH, Ni-Cd 6~12 Groups, Lithium Battery 2~4 Groups
Support Motors: Support Motors Greater Than or Equal To 8T

Package List:
1 x ESC

How To Use:
1. Connect to the power supply battery correctly, the red wire at both ends of the wiring board is the positive pole, and the black is the negative pole. (Or connect the standard DC battery plug male plug/T plug/banana plug)
2. Connect the red and black wires of the ESC output to the red and black wires of the car's 5 motors respectively
3. Turn on the power switch of the ESC. If there is no signal input at this time, the motor will emit a beep~beep~beep alarm sound. When the transmitter is turned on and the signal is normally injected, it will make a do~la~mi sound, which proves that the transmitting signal and the receiver ESC have been connected.
