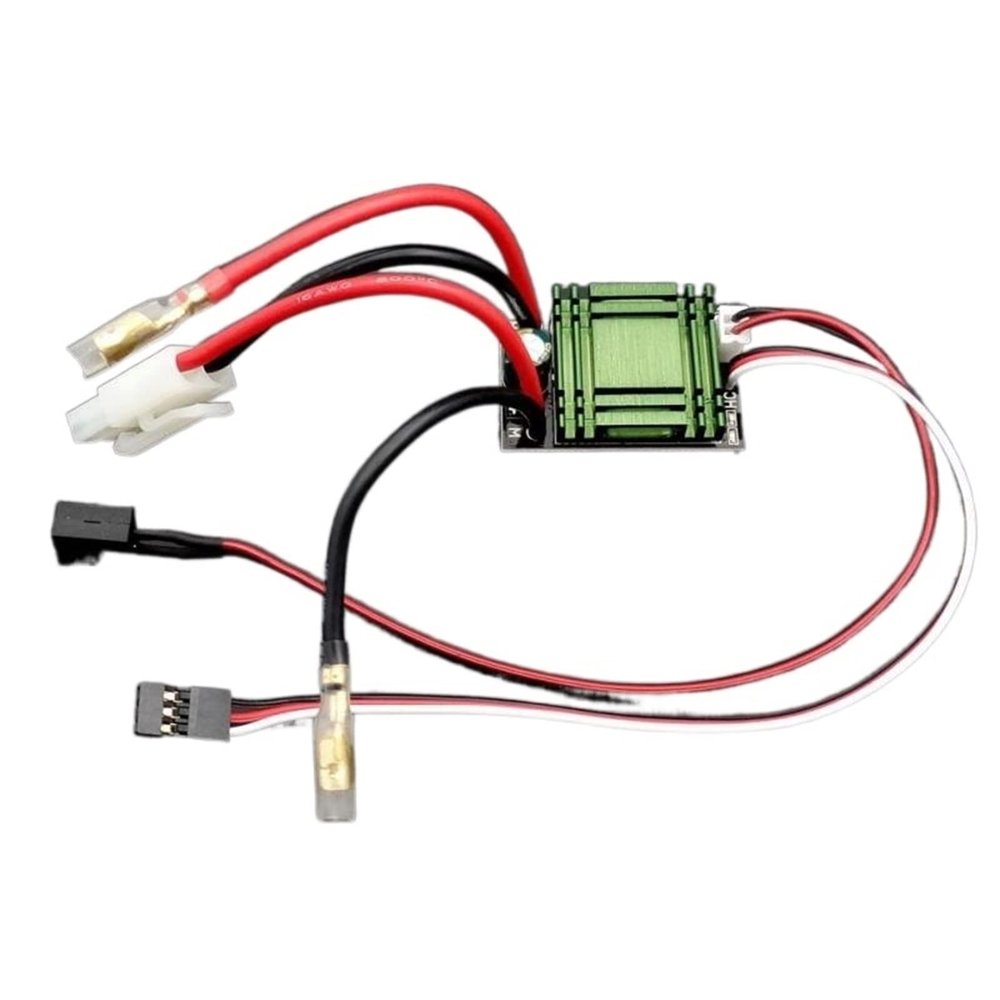

320A Two-Way Brushed ESC Electric Speed Controller for Differential RC Crawler Tank DIY RC Car/Boat Model 380 540 Motor(B)

Description

• [Stable Performance] Two way marine ESC, can control front and rear, have excellent performance, high efficiency operation.
• [Simple To Install] Easy to install and simple to use. Water cooling, longer use, important accessory for RC boat.
• [Lightweight And Portable] Wonderful replacement for the old or broken one, light weight and in small size, easy to store and carry.
• [Durable Material] Manufactured with the highest quality components to ensure that the processing capacity of the rated current is truly reached.
• [High-quality products and Services] Make sure that every product is inspected for product quality, so you can use it with confidence. If you have any questions about the product, please contact us, we will give you a satisfactory reply.

4.8V-8.4V 320A Two-way Brushed ESC Electric Speed Controller

for Differential RC Crawler Tank DIY RC Car/Boat Model 380 540 Motor

A= ESC with T plug,without switch

B= ESC with big tamiya plug,without switch

Note: The ESB is with UBEC and it no longer has a black square switch.

Support tanks, tracked vehicles, differential steering vehicles or boat modifications. Two ESCs are required.

Crawler car mode: automatically brakes the motor when the throttle returning to the middle. (When the motor rotates forward, pull the throttle back and the motor will reverse immediately)

Product Name: Two-way brushed ESC

Model: HC320A

Voltage range: 4.8V-8.4V (lithium battery 2S)

Peak current: 320A forward , 320A backward.

Wires: power wire and motor wire are 16AWG-100mm

Weight: about 30 g

Signal connector: line length is about 20CM

Power connector: big tamiya plug or T-plug

Motor connector: 4MM connector

Dimensions: 4.2CM*2.8CM*1.5CM

UBEC: 5V 2A

Support brushed motors (260/370/380/540);

It is recommended to use the motor within 20A.

Indicator status:

After the ESC is energized, the indicator light flashes . After the remote control stroke is set, the indicator light flashes again.

The indicator flashes rapidly after the signal is lost.

Alignment method: The ESC signal line is plugged into the corresponding channel of the receiver, turned on the remote controller ,turn on the stroke of the corresponding channel to the Max. and hold on, then power on the ESC , indicator light is blinking, wait for a few seconds. The indicator light flashes twice, then put the remote controller stroke to the center, and the indicator light flashes three times. OK,done.

Package include 1pc ESC
