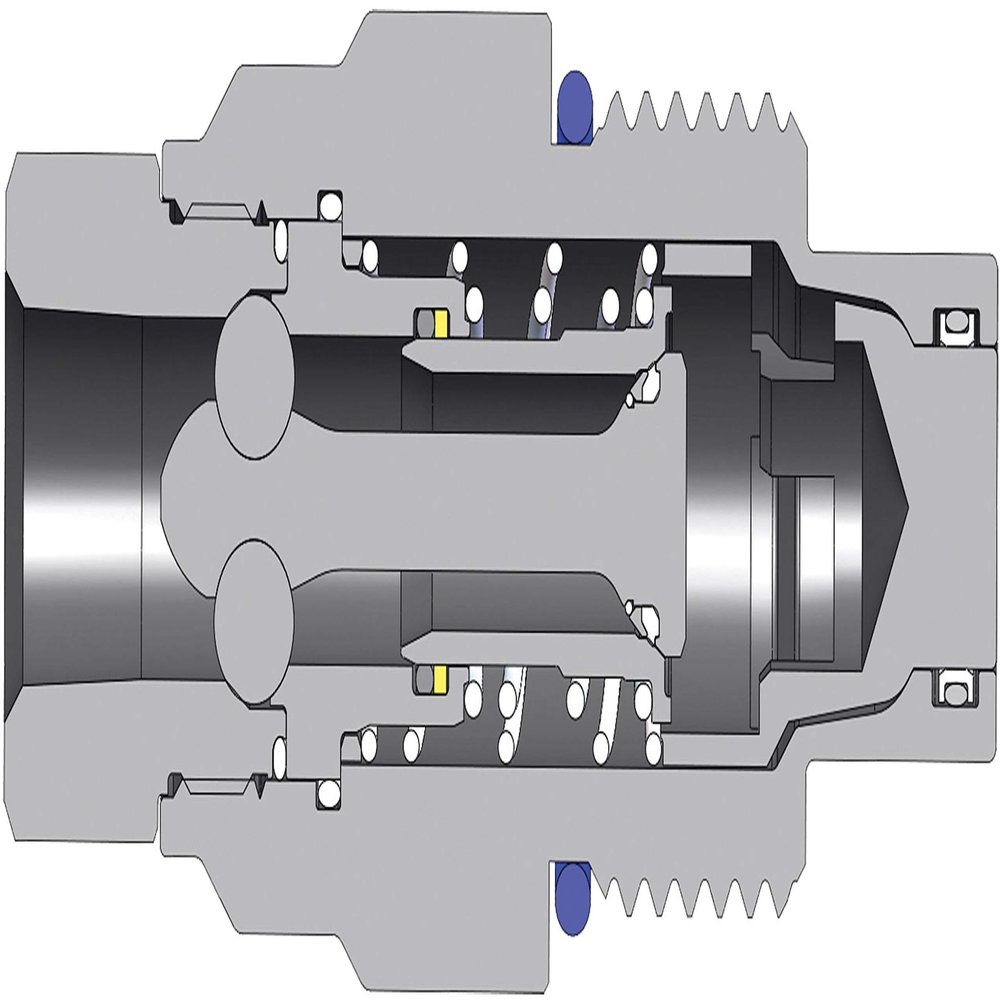

3/8" Vep Nipple

Description

Supplier: DixonMaterial: SteelThread: NPTFThread Size: 3/8"-18Maximum OD: 1.48"Body Size: 3/8"Hex: 25 mmLength: 3.28"Working Pressure: 5500 PSI (38 MPa)Flow: 10.5 GPM (40 L/min)Weight (lb): 0.76Specifications: Burst Pressure Connected: 22000 PSI (152 MPa); Burst Pressure Plug: 20000 PSI (138 MPa); Maximum Pressure Connect & Disconnect : 4500 PSI (31 MPa)Features: DORS Retention System optimizes flow and impulse pressure performance; Thread-to-connect design and dual valve system in the plug allow for connecting under pressure.; Threaded design eliminates premature wear or brinelling commonly found with locking balConstruction: Machined components are manufactured using solid steel bar stock; Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.; Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resisCompatibility & Interchange Data: Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET-Series, and Holmbury HFT SeriesHow it works: Prior to connecting, thoroughly clean all mating surfaces and threads on both halves, the pull the coupler sleeve forward.; To initiate the connection, align the coupler and plug, pushing/turning the coupler sleeve towards the plug while engaging the threNote: Couplings impulse tested in accordance with ISO7241-2 for 1,000,000 cycles connected and 100,000 cycles disconnected at 133% of ISO Working Pressure. ; Couplings impulse tested in accordance with ISO7241-2 for 100,000 cycles connected and disconnected
