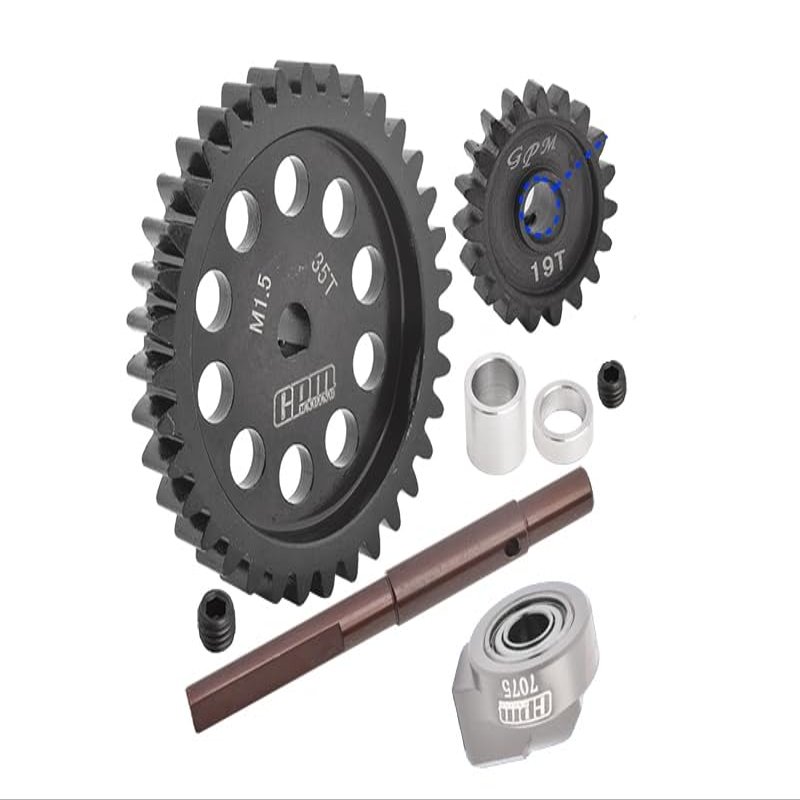

40Cr Carbon Steel M1.5 Spur Gear 35T + Motor Gear 19T for 1:5 Traxxas X Maxx 6S / X Maxx 8S / XRT 8S Monster Truck Upgrades

£85.41 £142.35

Save 40% (£56.94)

Buying Bulk?

Order within 4 hours and 43 minutes to get between June 4 - June 10
Tracked Shipping on All Orders
14-Day Returns
Secure Payments
24/7 Customer Support

Buying Bulk?

Description

Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission. The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
Motor tooth diameter: 8mm, Module: 1.5mm, Number of teeth: 19T.
Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, Module: 1.5mm, Number of teeth: 35T, Tooth surface width: 14mm, Outer diameter: 55.4mm.
Package includes : Motor gear 19T-1pc ; Screw shaft 5x5-1pc ; Spur gear 35T M1.5-1pc ; Cush drive input shaft-1pc ; Bearing 6x13x5-1pc ; shim 6x8x3.5-1pc ; shim 6x8x7.5-1pc ; Set screws 5x5-1pc ; Aluminum 7075 mount-1pc.
Suitable mdoels : Traxxas 1/5 X-Maxx 6S 77076-4, X-Maxx 8S 77086-4, XRT 8S 78086-4.

40Cr Carbon Steel M1.5 Spur Gear 35T + Motor Gear 19T For 1:5 Traxxas X Maxx 6S / X Maxx 8S / XRT 8S Monster Truck Upgrades

Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission. The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.

Motor tooth diameter: 8mm, Module: 1.5mm, Number of teeth: 19T.

Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, Module: 1.5mm, Number of teeth: 35T, Tooth surface width: 14mm, Outer diameter: 55.4mm.

Package includes : Motor gear 19T-1pc ; Screw shaft 5x5-1pc ; Spur gear 35T M1.5-1pc ; Cush drive input shaft-1pc ; Bearing 6x13x5-1pc ; shim 6x8x3.5-1pc ; shim 6x8x7.5-1pc ; Set screws 5x5-1pc ; Aluminum 7075 mount-1pc.

Suitable mdoels : Traxxas 1/5 X-Maxx 6S 77076-4, X-Maxx 8S 77086-4, XRT 8S 78086-4.
