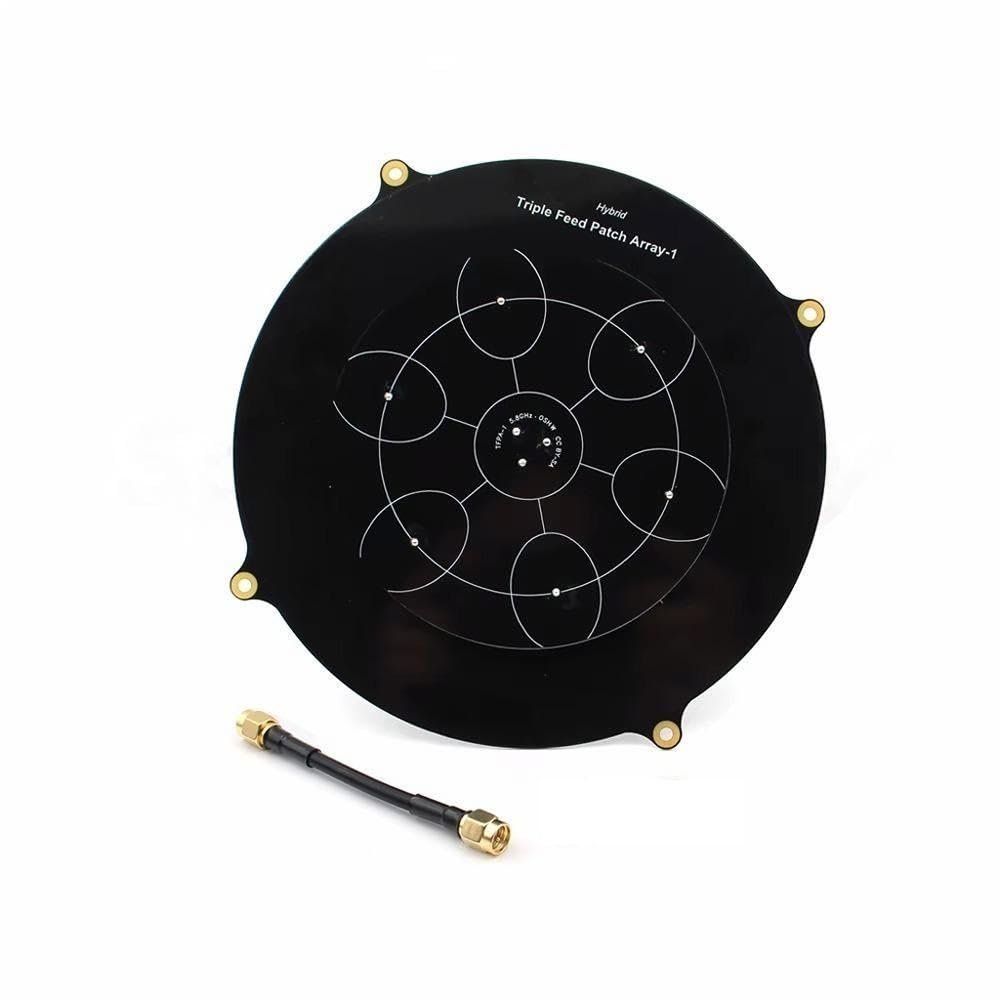

5.8G Flat Pagoda Directional Circularly Polarized Antenna Triple Feed Patch Array RHCP LHCP 14DBi for VTX Extended Range Signal (1PC 14DBI SMA)

Description

• High gain performance
• Signal stability
• Good anti-interference ability

Item: 8dbi / 14dbi Pagoda Triple Feed Pagoda Antenna
Parameters:
Center frequency: 5.8G
Bandwidth: 700MHz (5.3-6GHz)
Matching degree: S11<-20 dB,
Standing wave<1.5 (at center frequency)
Gain: 8dbi
Angle: 55 (horizontal and vertical)
Radio efficiency: 83.5%
Weight: 15g
Size: 60 * * 60 * 14mm

Center frequency: 5.8G
Bandwidth: 950MHz (5.47-6.13GHz)
Matching degree: S11<-20 dB,
Standing wave<1.5 (at center frequency)
Gain: 14dbi
Angle: 30 (horizontal and vertical)
Radio efficiency: 74%
Weight: 62.5g
Size: 150 * * 150 * 16mm
