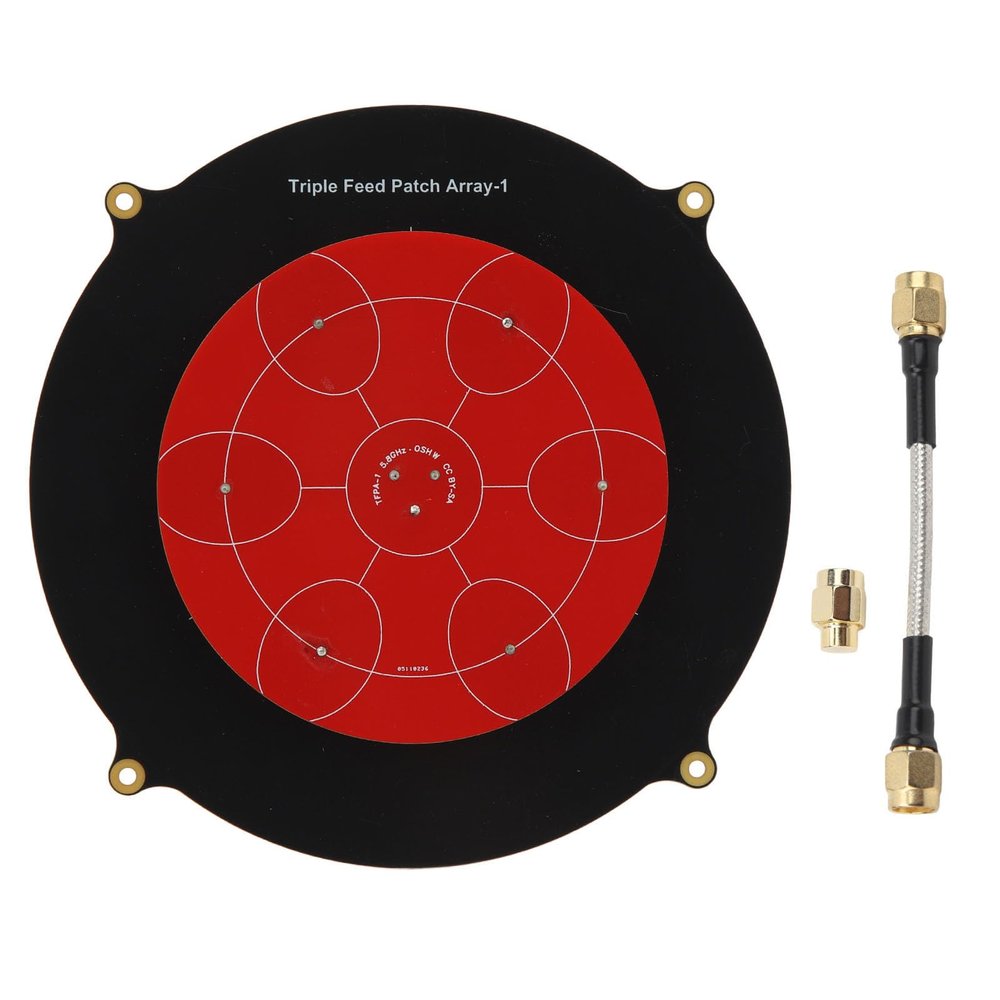

5.8GHz FPV Antenna, High Gain Directional Circularly Polarized, Triple Feed Patch Antenna with 7 Coupled Patch for RC Fixed Wing FPV

Description

• [High Gain Capability] : With 7 coupled patches, this 5.8ghz fpv antenna delivers exceptional gain both perpendicular to the flat plate and off-center, providing impressive signal strength.
• [Premium Design] : Developed by model experts baert and robin theunis, this high-performance antenna minimizes efficiency loss at 5.8ghz, with reduced feed network losses for improved overall performance.
• [Wider Main Lobe] : While sacrificing a small amount of gain, the antenna increases the main lobe width for improved coverage, making it a top choice for demanding fpv applications.
• [Focused Radiation] : By optimizing the main lobe, this antenna concentrates signal strength to the main direction while minimizing sidelobes and maintaining a balanced axial ratio for reliable performance.
• [Enhanced Performance] : The triple feed patch array antenna utilizes seven coupled metal patches and a superior high-frequency design to achieve significantly higher gain, ideal for long-distance flights.

Specification:
Item Type: 5.8GHz Triple Feed Patch Antenna
Product Material: PCB
Product Color: Black
Weight: Approx. 78g / 2.8oz
Frequency Range (MHz): 5G-6G
Polarization Method: RHCP/LHCP
Gain: 14dBi
Lobe Width (Degree): H: 360 V: 60
Input Impedance: 50
Connector Type: SMA
Product Diameter: Approx. 150mm / 5.9in
Applicable Model: RC Fixed Wing, FPV, Etc

Package List:
1 x Antenna
2 x Accessories
