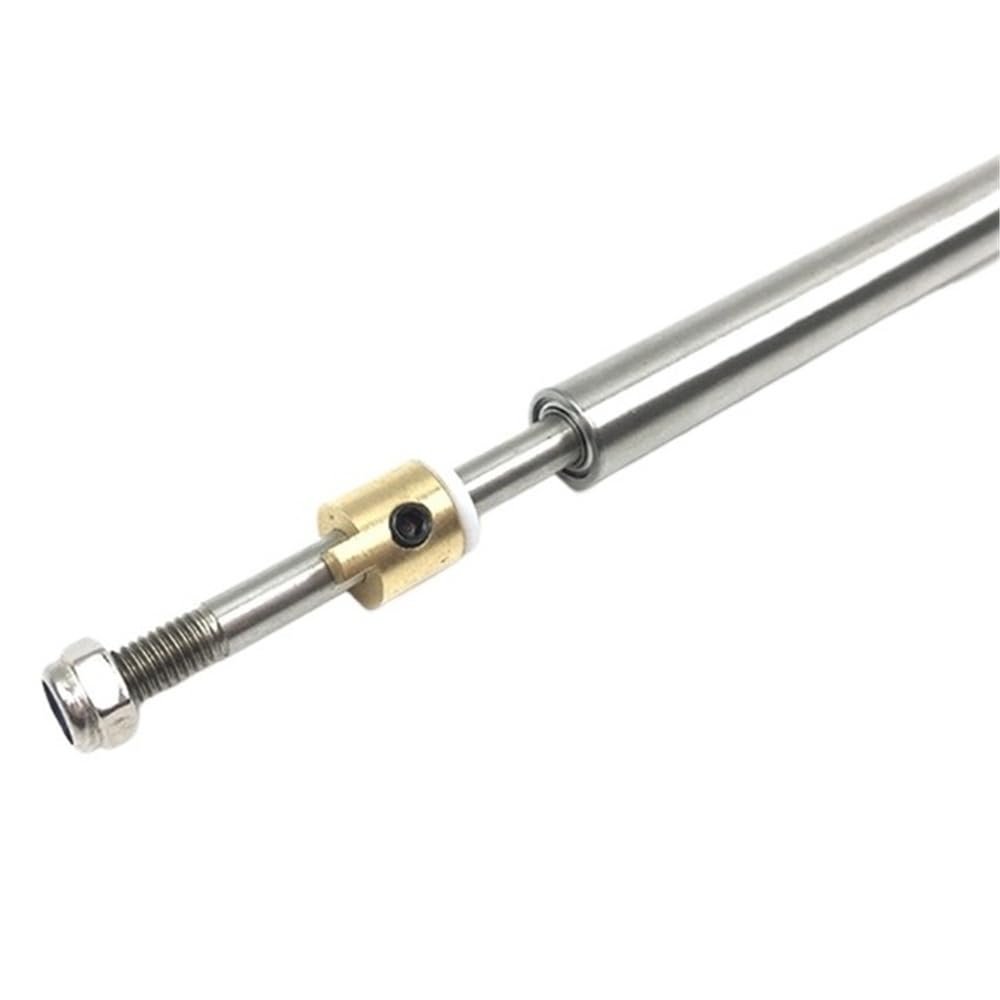

5mm Waterproof Stainless Steel Shaft, Full Sealed Transmission Shaft, RC Boat Parts, Multiple Length Options(Shaft 300mm Sleeve 240mm)

Description

• [Multiple specifications] A variety of shaft lengths and sleeves are available: 150mm/90mm, 200mm/140mm, 250mm/190mm, 300mm/240mm, 345mm/280mm, to meet the needs of different ship models.
• [Highly Efficient Waterproof] Fully sealed design, excellent waterproof effect, effectively prevents water from entering and extends the service life of the device.
• [High Compatibility] Adapt to a variety of remote control boats and model boats, ensuring the shaft system and hull are perfectly matched.
• [Easy to install] Easy to install, suitable for DIY model ships. Fill with butter before use for better waterproof effect.
• [Comprehensive performance] Each set includes: sleeve 1, shaft 1, 5mm brass paddle fork 1, M5 stainless steel self-locking nut 1, 5mm wear-resistant gasket 1, waterproof O-ring 2, 58 high-speed flange bearing 2. All components are pre-installed and ready to use.

Classification: shaft length 150mm shaft sleeve 90mm, shaft length 200mm shaft sleeve 140mm, shaft length 250mm shaft sleeve 190mm, shaft length 300mm shaft sleeve 240mm, shaft length 345mm shaft sleeve 280mm

Waterproof version 5mm stainless steel drive shaft

5mm waterproof stainless steel axle assembly

Sleeve material: 304 stainless steel, outer diameter: 10mm

Shaft core diameter 5mm Material 304 stainless steel

Paddle fork material 59 brass

One set (sleeve 1, axle 1, 5mm brass paddle fork 1, M5 stainless steel self-locking nut 1, 5mm wear-resistant gasket, waterproof O-ring 2 and 58 high-speed flange bearing 2 are installed on both ends of the boat shaft when shipped)

Features: High-speed ball bearings are installed at both ends, and two rubber seals are added to the bearings at the front and rear ends, which has a good waterproof effect. It effectively solves the problems of oil leakage and water ingress during shaft operation.

Process: The whole machine is ground by a grinder to ensure the concentricity of the shaft system and small vibration during high-speed operation.

Application: Toy boat transformation, like a real boat, nesting boat, net pulling boat, etc. Power transmission function.

Note: Because this shaft system has sealing O-rings at both ends, it is normal for the shaft system to be "tight" before adding oil. Just add some lubricating grease with low viscosity. Do not add corrosive grease, which will corrode the O-ring and deform it, resulting in loss of waterproof effect.
