Description
- Voltage: 6V-30V; Max current: 10A(each channel)
- Support 5V-30V Battery
- With power-on protection, only at the middle position can enter the system
- Without signal protection,automatically disconnect when there is no signal
- Three-section fluctuation switch channel
6-30V 10A 2 Channels LED Light Remote Control Electronic Switch Power Supply ON OFF Controller Module for RC Model Car Boat Airplane Drone
Specification:
- Item name: Electronic switch
- Voltage: 6V-30V
- Max current: 10A(each channel)
- BEC output: NO
- Size:27mm x 16mm

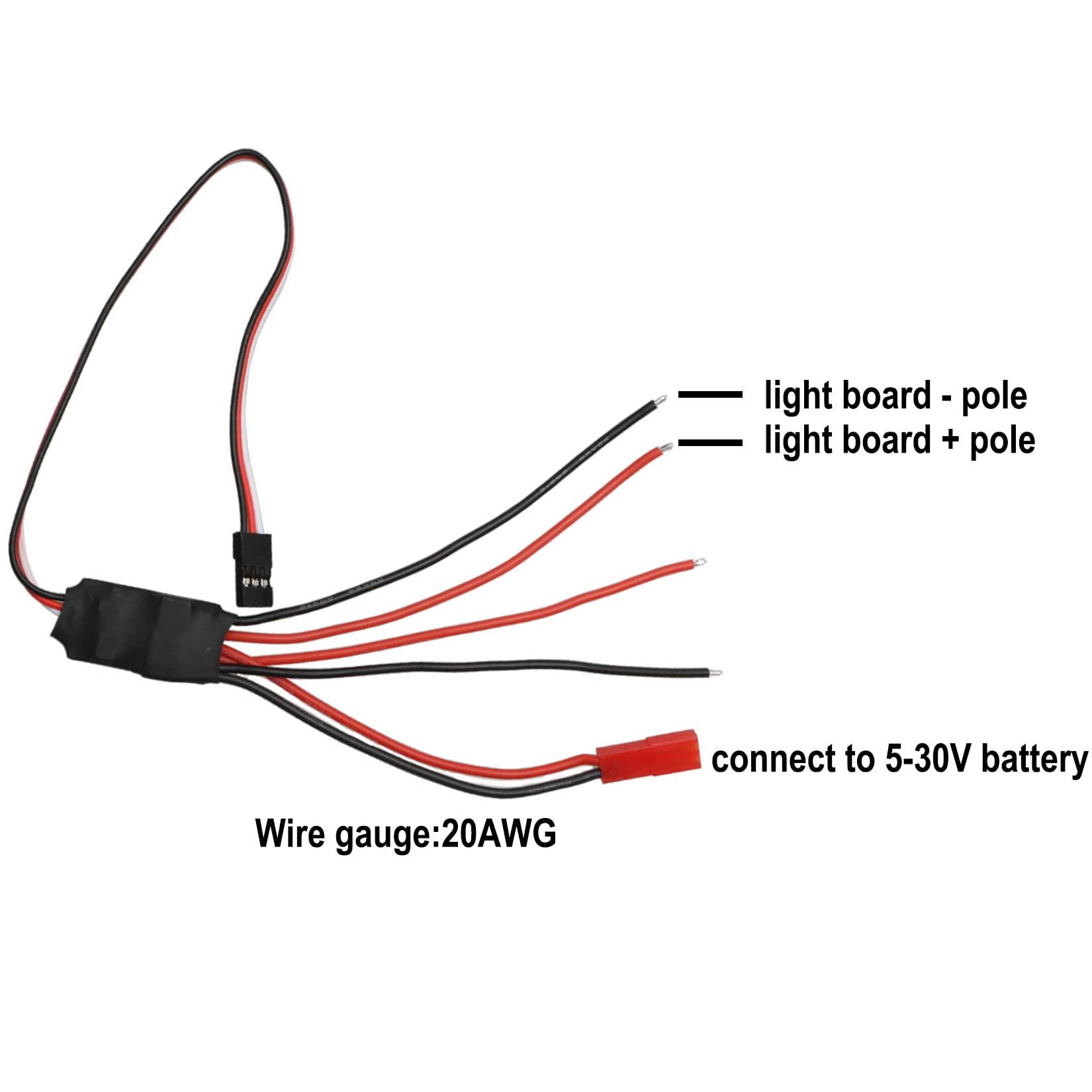

- Wire gauge:20AWG
- Support 5V-30V Battery
- Can't power supply by receiver
- With power-on protection, only at the middle position can enter the system
- Without signal protection,automatically disconnect when there is no signal
Control Mode:
Three-section fluctuation switch channel
- High position 2000us:one channel work
- Medium position 1500us:two channels close
- Lower position 1000us:the other channel work
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
1.At the same time, only one channel is working.
2.When the current greater than 10A, please strengthen heat dissipation.
3.Please allow slightly measuring deviation due to manual measurement.
Package include:
1pcs x electronic switch
or
4pcs x electronic switch
