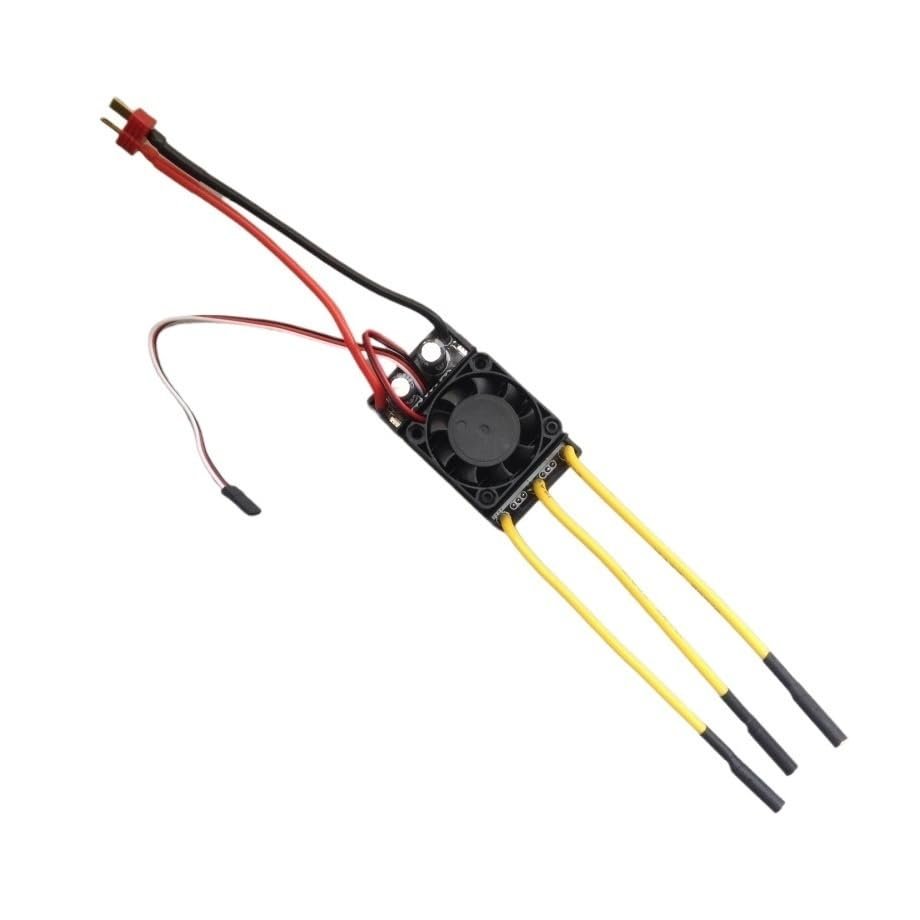

70A Bi-Directional Brushless ESC, 2-6S LiPo Compatible with 5V 3A BEC & 4mm Banana Plugs, Air-Cooled for RC Boat/Car/Underwater Robot(T Plug)

Description

• [Wide Voltage Adaptation] Supports 2S-6S lithium battery wide voltage input, does not support 7S and 12V batteries in series, and adapts to the power needs of most RC equipment.
• [Two-way control] Adopts two-way brake-free mode, supports forward and reverse switching, and is suitable for RC boats, vehicles and underwater robots that require frequent direction changes.
• [Stable power supply] Built-in 5V 3A BEC, which can directly drive two 25kg servos, without the need for additional power supply modules, and the wiring is simpler.
• [Safety Protection] Equipped with a 32-bit processor and 80C temperature protection function, it automatically limits 30% of the maximum output and lights up a red light after overheating.
• [Multiple plugs optional] Available in three specifications: no plug, T plug + 4mm banana plug, XT60 plug + 4mm banana plug, easy to install and adapt to different devices.

Brushless ESC: 70A air-cooled brushless ESC
Voltage: Support voltage 2S-6S
Mode: Bidirectional, forward and reverse, no brake
Parameters: UBEC 5V 3A can drive 2 25kg servos
The ESC uses a 32-bit processor
With temperature protection (80 degrees) After overheating, the maximum output will be limited to 30% and the red light will be on
It is not a 7805 linear voltage regulator, so two ESCs cannot power the receiver at the same time.
Note: If multiple ESCs are connected to one receiver, only one ESC should be used to power the receiver. You need to cut off the red wire in the middle of the other ESC signal cables to avoid voltage conflicts.
Operation mode: Bidirectional
Number of lithium batteries: 2S-6S (7s is not supported / two 12v batteries cannot be connected in series)
BEC: Built-in BEC 5V 3A
plug:
No plug: The ESC is welded with wires but no plug
T plug + 4mm banana plug
XT60 plug + 4mm banana plug
