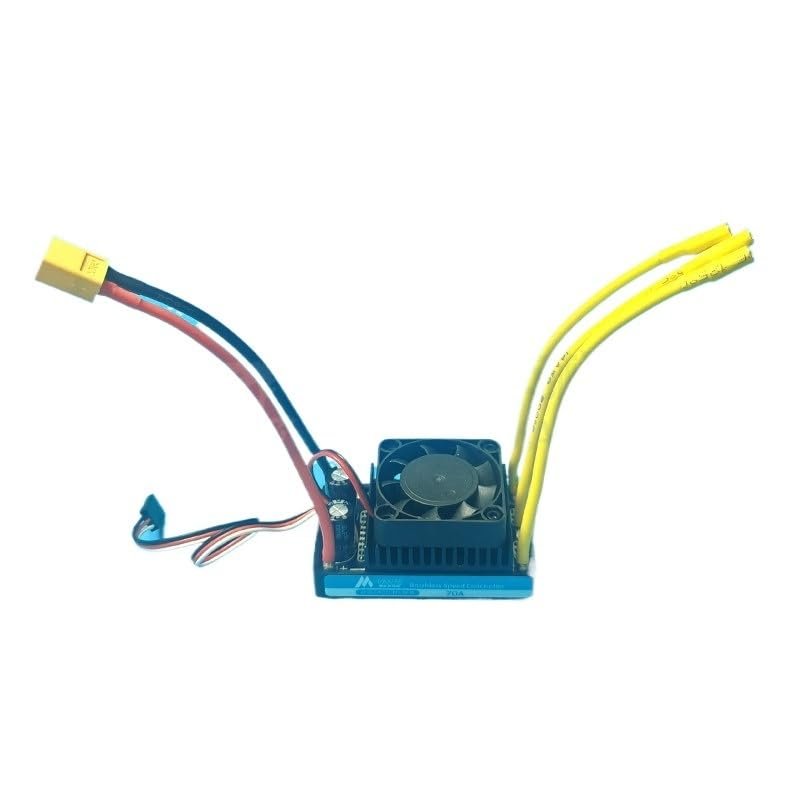

70A Brushless ESC Air-Cooled, 2S-6S Bidirectional with 80 Overheat Protection, for RC Boat/Car/Underwater Robot/Thruster(XT60 Plug+4mm Banana Plug)

Description

• [Multi-device adaptation] Compatible with remote control boats, remote control cars, underwater robots, thrusters and other equipment, 2S-6S voltage adaptation.
• [70A Stable Output] Built-in 32-bit processor, stable output, can drive high-power brushless motors, and supports power supply for two 25KG servos at the same time.
• [Efficient air-cooled heat dissipation] Air-cooled heat dissipation design, 80-degree temperature protection, automatically limits the maximum output to 30% and lights up to prompt after overheating to avoid burning.
• [Two-way control] Supports forward and reverse rotation without braking mode, flexible control, suitable for devices that need to frequently switch directions, improving the control experience.
• [Multiple plugs optional] Available in three specifications: no plug, T-type plug, and XT60 plug to meet the connection needs of different devices.

[Voltage]: 2S-6S (does not support 7S/cannot connect two 12V batteries in series)
[Mode]: Two-way forward and reverse rotation without braking
[Parameters]: Built-in BEC 5V 3A
[Specifications]: No plug/T-type plug/XT60 plug
Instructions for use
1.UBEC can drive two 25KG servos
2. The ESC uses a 32-bit processor
3. With temperature protection (80 degrees), after overheating, the maximum output will be limited to 30% and the red light will turn on.
4. It is not a 7805 linear regulator, so two ESCs cannot supply power to the receiver at the same time. There are multiple ESCs connected to one receiver, and only one ESC is used to power the receiver. You need to cut the red wire in the middle of the remaining ESC signal lines to avoid voltage conflicts.
