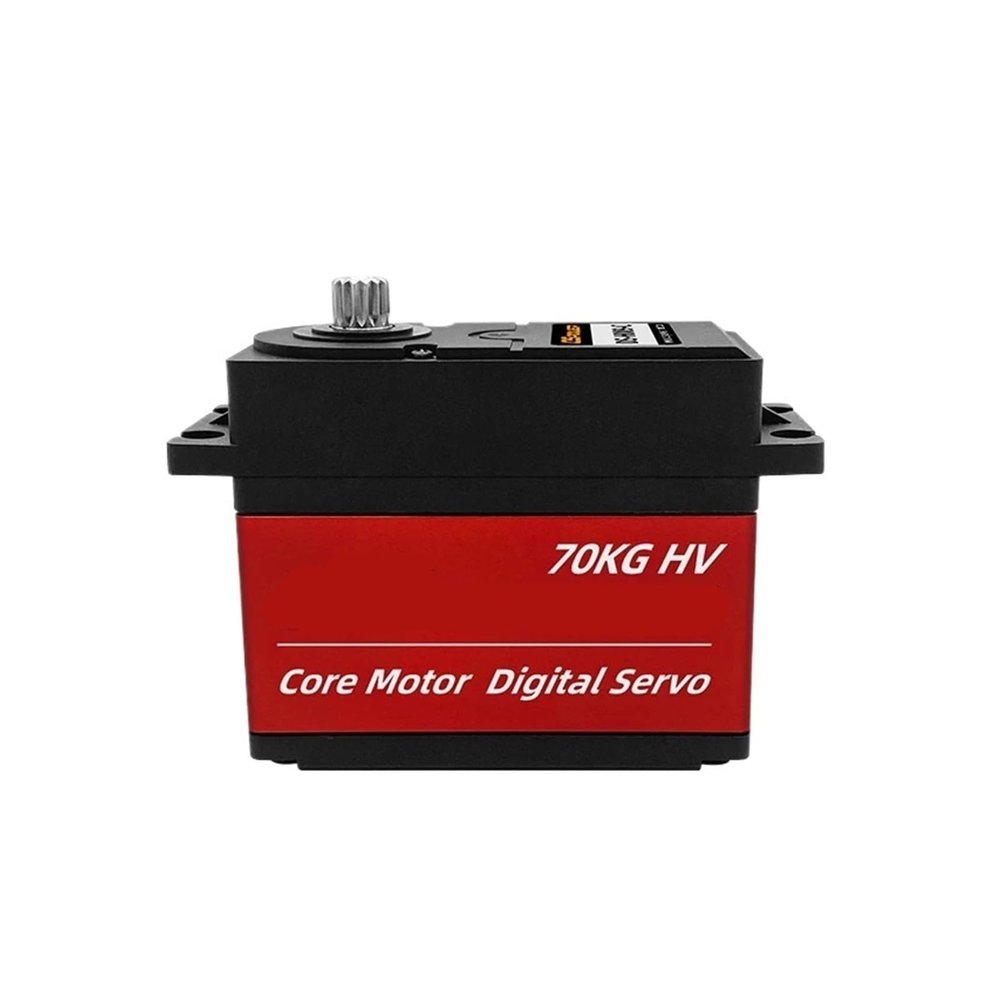

70KG Metal Gear Servo Waterproof Hollow Shaft Digital Servo 1:5 1:8(180 Degree)

Description

• Servo Mounts

Servo Mounts
Specification:
Product Name: H009-C
Quantity: 1 piece
Working voltage: 6.0~7.4V DC
Maximum torque: 6.0V50.0kgf.cm; 7.4V70.0kgf.cm
No-load speed: 6.0V0.17s/60; 7.4V0.14s/60
Stalled rotor current: 6.0V 7400mA; 7.4V 9400mA
Current consumption* (no load): 6.0V 240mA; 7.4V 250mA
Maximum operating travel angle:
18010/30010 (500~2500 microseconds)
Dead zone width: 4us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: metal gear
Weight: 203 g
Dimensions: 81.63056mm
Cable length: JR 270MM5mm
1 * 70KG Digital Server
1 * Servo Arm Accessories
