8 Channel 2.4G Pocket Dual Joystick Control E010 Protocol 3.6-6V Looper Receiver for RC Fixed Wing Airplane Car Boat Model(Dual Rocker Control)

Description

• Spare Parts: Suitable for repairing or replacing RC boats.
• Ease of use: Easy to install.
• Application: Suitable for different types of boats, such as DIY, simulation.
• Premium Material: Made of good material, durable and wear-resistant, it is a premium replacement part.
• Professional: Compatible with DIY RC Electric Boats

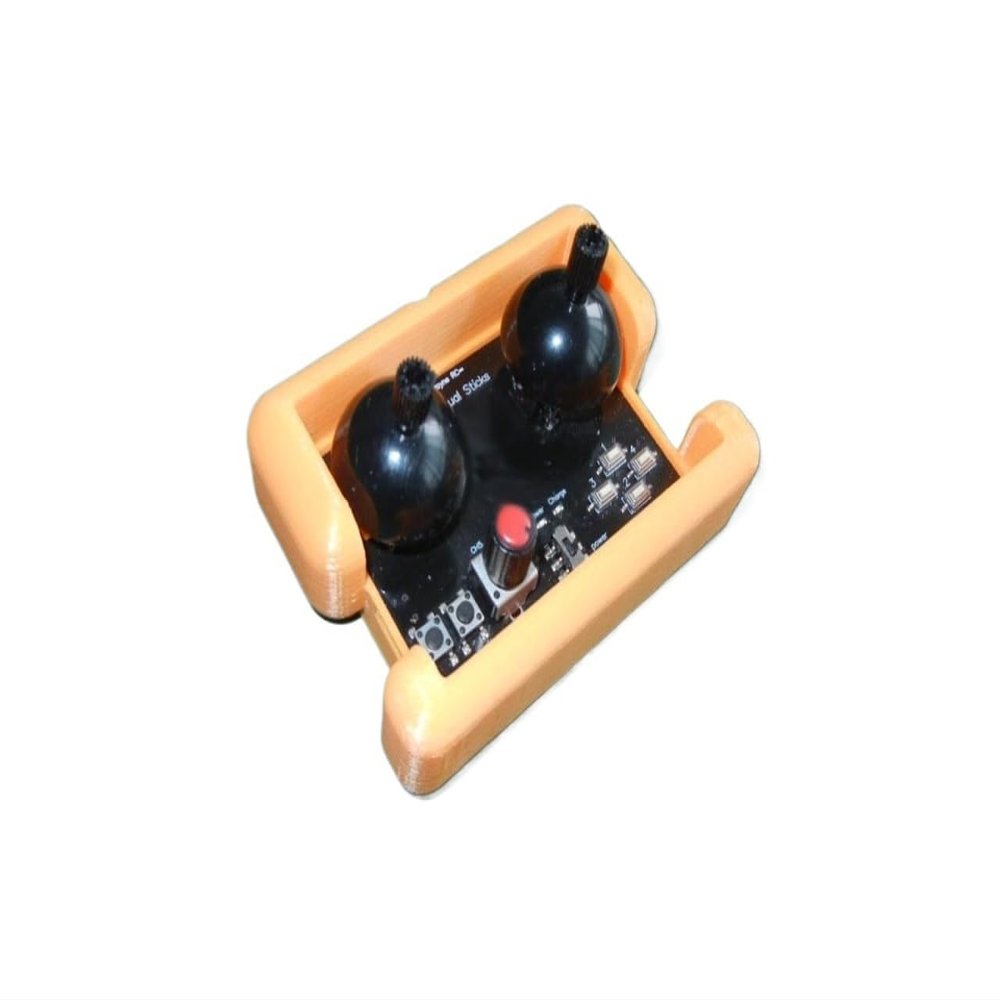

8 Channel 2.4G Pocket Dual Joystick Control E010 Protocol 3.6-6V Looper Receiver

for RC Fixed Wing Airplane Car Boat Model

Double joystick control parameters:
8 channel : 1 channel is aileron, 2 channel is lift, 3 channel is throttle, 4 channel is rudder (also called direction), the other is auxiliary channel
Channel 1/2/4: The joystick can set the amount of rudder, reverse, and fine-tune (these settings are automatically saved after 2 seconds)
5 channels: knob control (but it is essentially a dual channel, which is determined by the protocol)
6-8 channels: Press and hold the buttons in combination to operate, see the following instructions
Color: orange
Dimensions: 95x70x30mm
Weight: 83g
Pre-installed 3.7V 700mah lithium battery (actual capacity is in the range of 700mah-730mah)
With its own charging interface, it can be used for 8 hours at a time, and the power is lower than 3.6V.
Use the mobile phone usb charger to charge, the charging current is 360ma, it can be fully charged in about 2 hours, the blue light is on when charging, and the blue light is off when fully charged
Can be restored to factory settings Can set different transmitter IDs, multiple simultaneous use

This dual joystick controller uses the E010 protocol,
Supporting E010 protocol receiver parameters:
Air > 150 meters, ground > 100 meters
This receiver is universal, any controller with multi-protocol tuner (T16, T18S, etc.) is also applicable, the protocol can be selected MJXq >E010
Receiver parameters:
Adaptation voltage: 3.6-6V
Signal: Simultaneously output 5-channel PWM (general servo/ESC signal) and 8-channel PPM (directly used by flight control)
Receiver board: 16x28.5mm 3g
3-way default runaway protection 950, can be changed to 1500
5-pass PWM can be cut off
Code matching method (automatic code matching after power-on):
1) Press and hold the receiver bind button, power
